Phaser 790/DocuColor 2006
PL 3.1
Initial Issue
Parts List

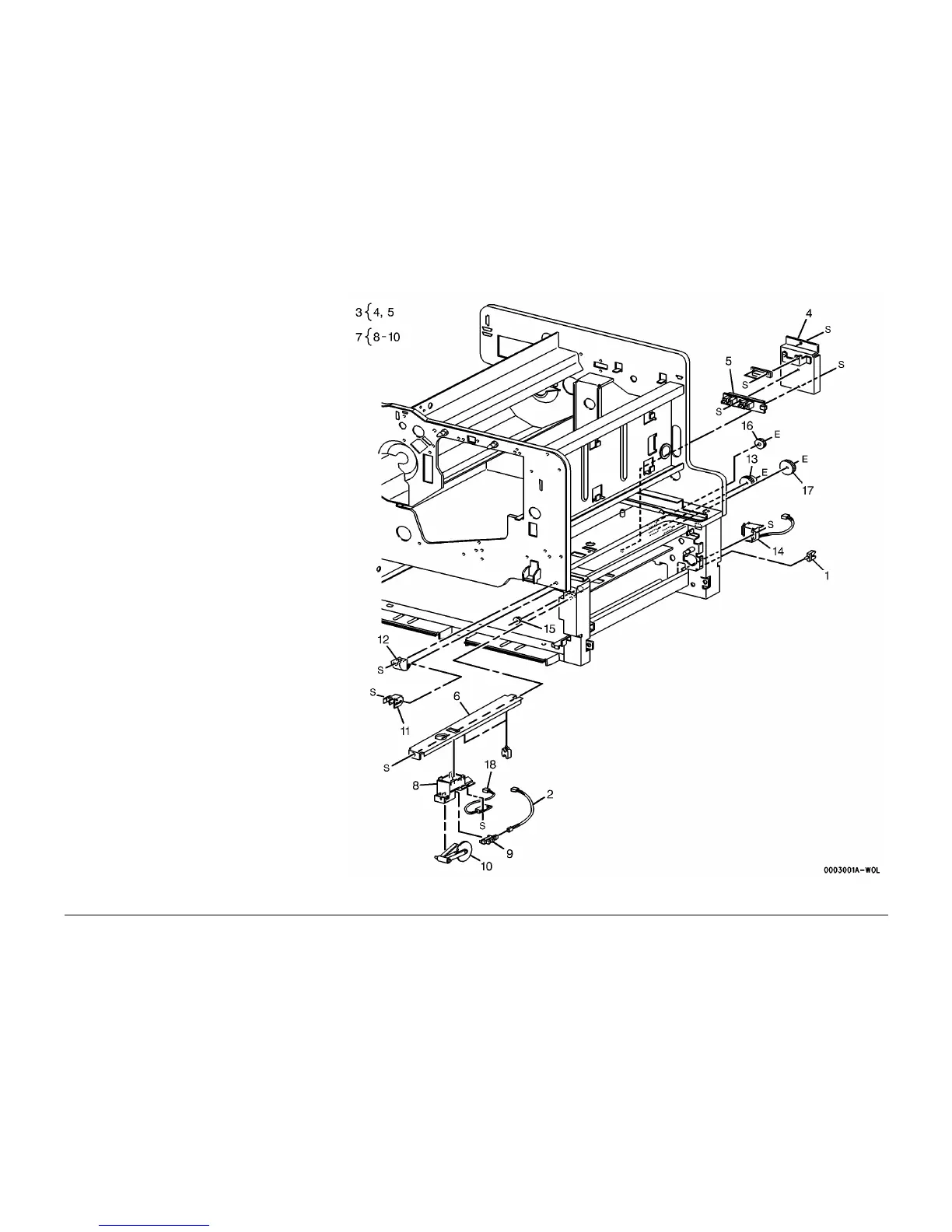

PL 3.1 Tray 1 Paper Feeder (1 of 3)
Item Part Description
1 – Bracket Clamp (Not Spared)
2 – Harness (Not Spared)
3 – Size Bracket Assembly (Not
Spared)
4 – Size Switch Bracket (Not Spared)
5 110K07770 Size Switch PWB (REP 7.1)
6 – Sensor Bracket (Not Spared) (REP
7.2)
7 – No Paper Sensor Assembly (Not
Spared) (REP 7.3)
8 – No Paper Bracket (Not Spared)
9 130E81970 No Paper Sensor (REP 7.4)
10 – No Paper Actuator (Not Spared)
11 – Stopper (Not Spared)
12 – Feed Shaft Guide (Not Spared)
13 – Feed Idler Gear (Not Spared)
14 121E84500 Feed Solenoid (REP 8.5)
15 – Feed Bearing (Not Spared)
16 – Turn Gear D (Not Spared)
17 – Turn Gear L (Not Spared)
18 110E97970 Low Paper Sensor (REP 7.5)
To Next Page
