Phaser 790/DocuColor 2006
REP 5.7
Repairs and Adjustments
Initial Issue
REP 5.7 Document Transport Assembly
Parts List on PL 17.6
Removal
WARNING
To avoid personal injury or shock, do not perform repair activities with the power switch
on or electrical power applied to the machine.
1. Switch off the machine power and disconnect the machine Power Cord.
2. Remove the ADF Front Cover.
3. Remove the Document Transport Assembly. (Figure 1)

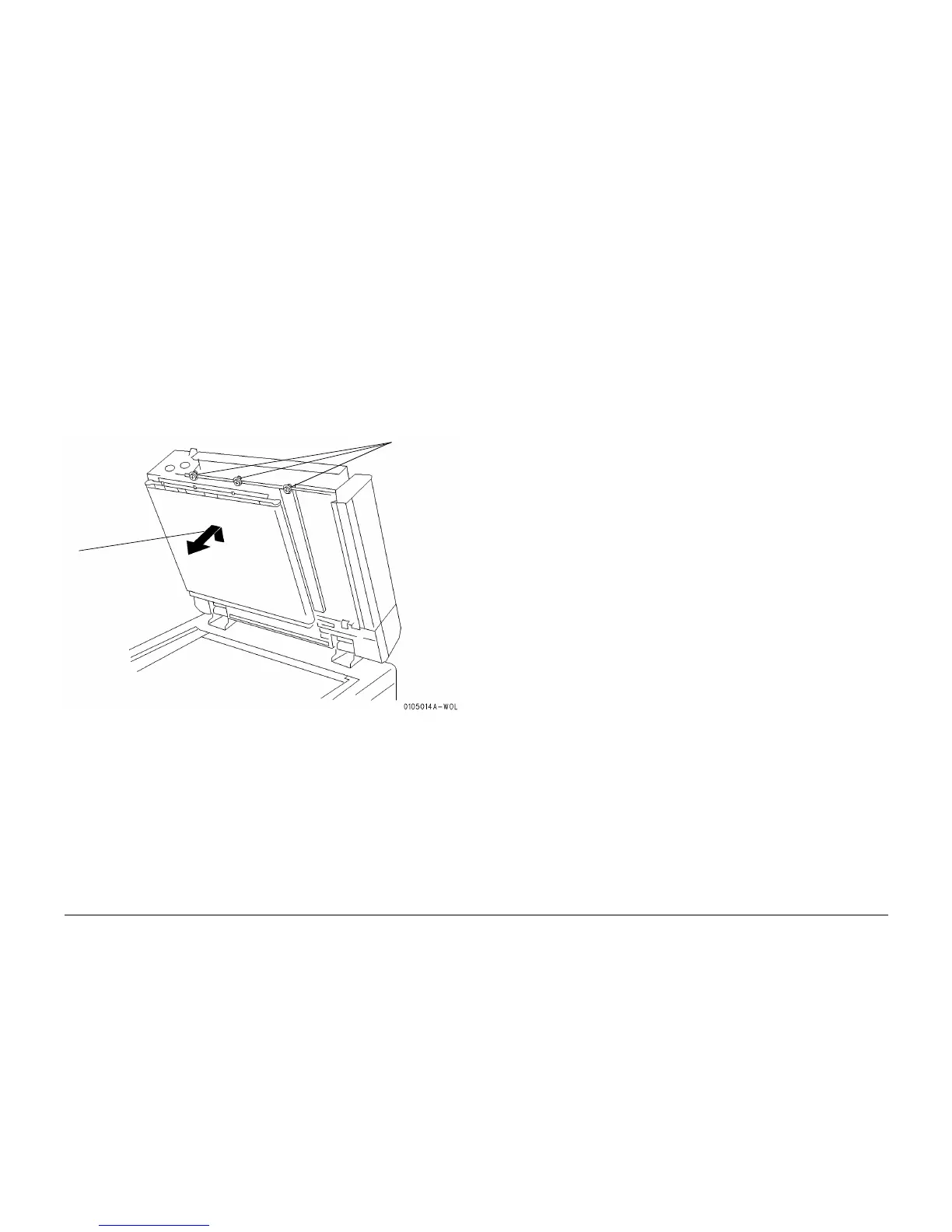

Figure 1 Removing the Document Transport Assembly
Replacement
1. Perform the procedure for removal in reverse.
2. Perform an ADF Front-to-rear Positioning adjustment (ADJ 5.4)
1
Loosen the
three screws
retaining the
Document
Transport
Assembly
2
Remove the Document
Transport Assembly by
moving it in the direction
indicated
