REP 8.23 Paper Feeder Assembly
Parts List on PL 13.5
Removal
WARNING
To avoid personal injury or shock, do not perform repair activities with the power switch
on or electrical power applied to the machine.
1. Switch off the machine power and disconnect the machine Power Cord.
2. Remove the Right Lower Cover. (REP 14.11)
3. Remove the Feeder Right Cover. Remove the Feeder Chute. (Figure 1)

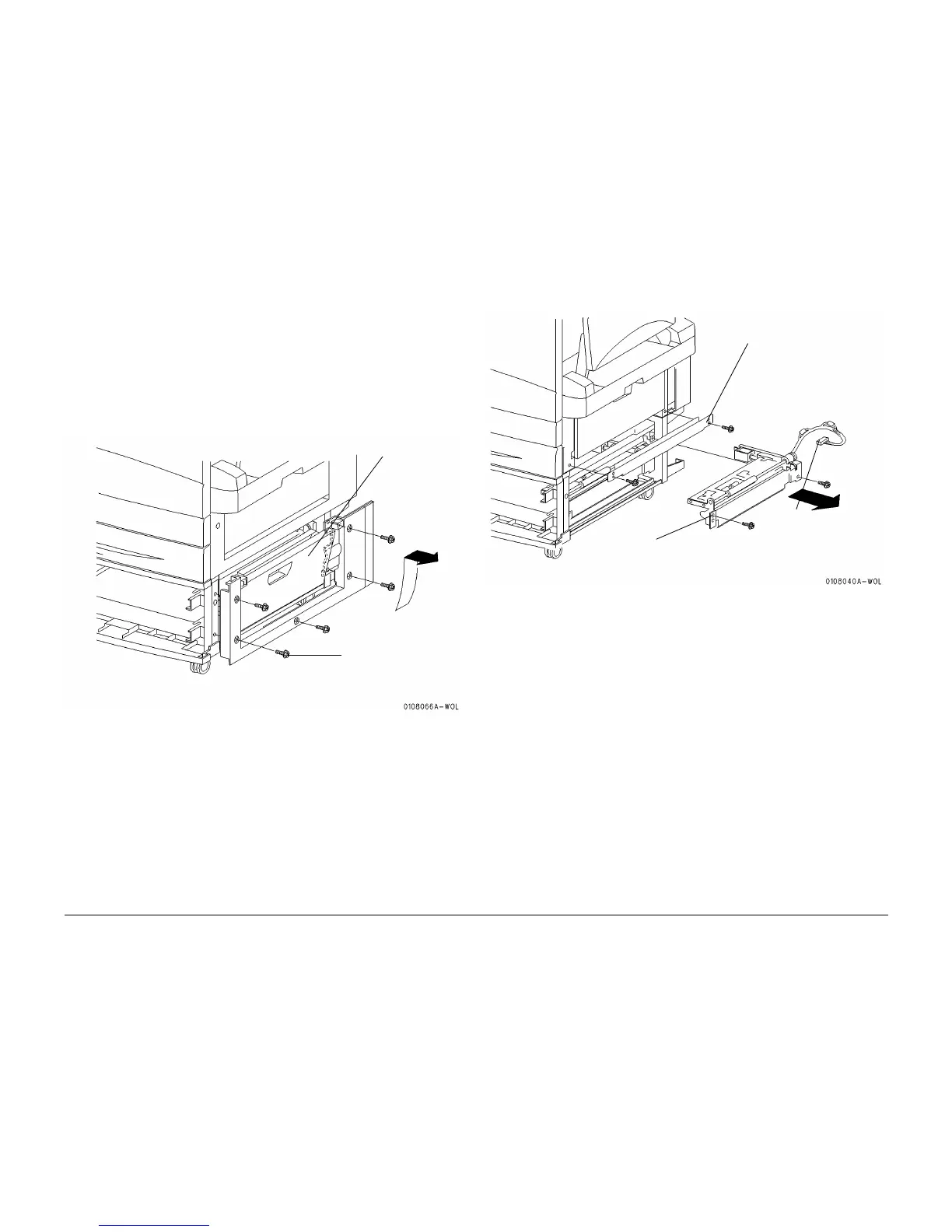

Figure 1 Removing the Feeder Right Cover / Feeder Chute
4. Remove the Paper Feeder Assembly. (Figure 2)
Figure 2 Removing the Paper Feeder Assembly
Replacement
1. Perform the removal procedure in reverse.
1
Remove the five screws
and the Feeder Right
Cover
2
Remove the
Feeder Chute
1
Remove the two screws and
the Right Hand Lower Bracket
NOTE: This step is only neces-
sary if removing the feeder
positioned closest to the top of
the machine
2
Disconnect the
connector
3
Remove two screws and the
Paper Feeder Assembly
