Phaser 790/DocuColor 2006
PL 16.1
Initial Issue
Parts List

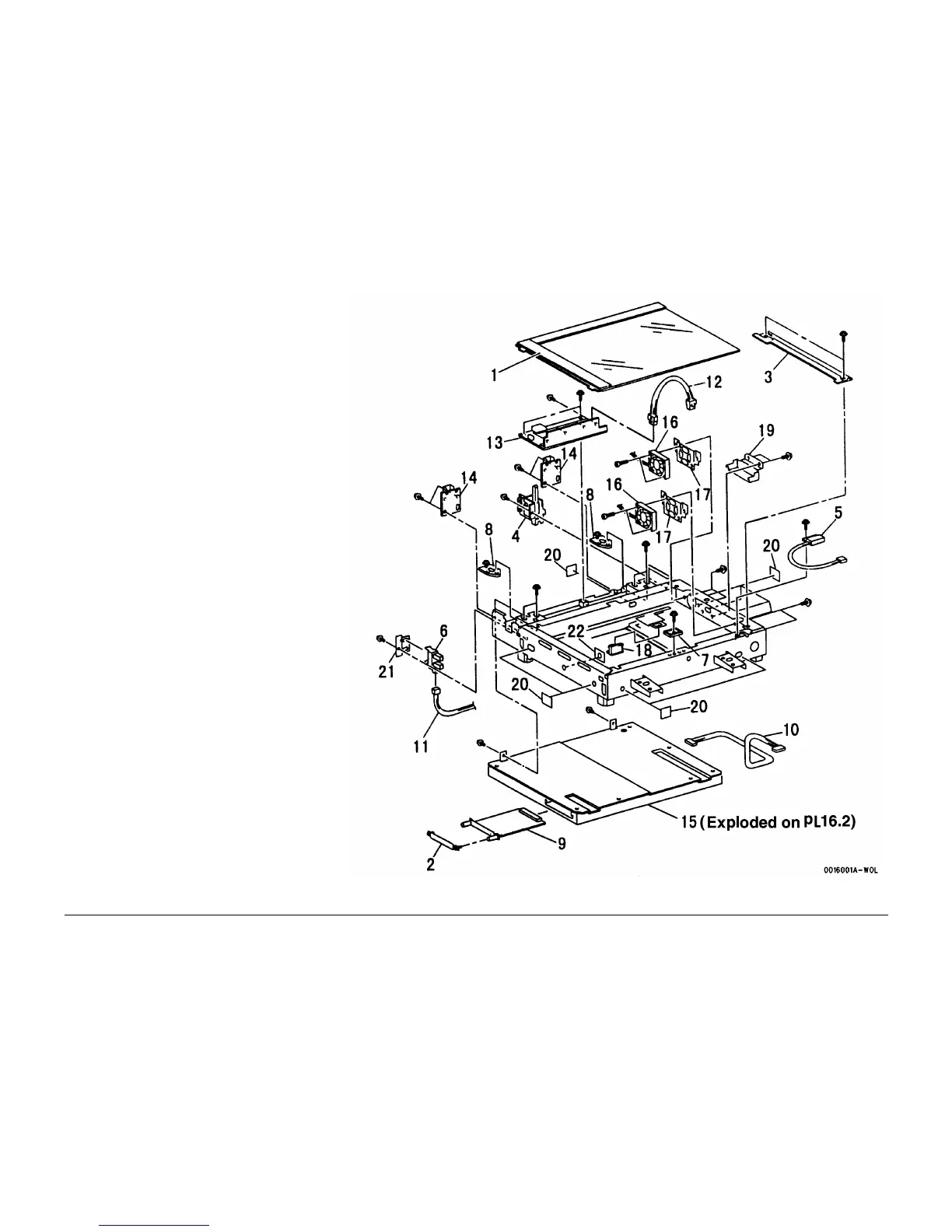

PL 16.1 Platen Glass and IIT
Item Part Description
1 090K92740 Platen Glass (REP 6.1)
2 – Bracket (Not Spared)
3 – Right Plate (Not Spared)
4 130K61001 Angle Sensor (REP 6.5)
5 110K94900 Platen Switch (REP 6.6)
6 130K61010 IIT Registration Sensor (REP 6.7)
7 068E10210 Support
8 – Bracket (Not Spared)
9 160K69840 Advanced Features Memory PWB
(REP 6.16)
10 162K60970 Harness
11 162K56420 Sensor Harness
12 162K56430 Harness
13 105K18750 IIT LVPS 110v (REP 6.8)
– 105K18760 IIT LVPS 220v (REP 6.8)
14 – Guide (Not Spared)
15 – PWB Box (Not Spared) (REP 6.11)
16 127E82280 Fan (REP 6.9)
17 – Bracket (Not Spared)
18 130K58120 APS Sensor (REP 6.10)
19 – Cover (Not Spared)
20 – Guard (Not Spared)
21 – Bracket (Not Spared)
22 – Damper (Not Spared)
