10/00
4-104
Phaser 790/DocuColor 2006
REP 9.16
Initial Issue
Repairs and Adjustments
REP 9.16 IBT Assembly
Parts List on PL 7.2
Removal
WARNING
To avoid personal injury or shock, do not perform repair activities with the power switch
on or electrical power applied to the machine.
1. Switch off the machine power and disconnect the machine Power Cord.
2. Remove the Rear Cover (REP 14.6).
3. Remove the Copy/Print Cartridge (REP 9.1).
4. Remove the Tension Lever (REP 9.15).
5. Remove the Inner Covers (REP 14.5).
6. Remove the Fuser Assembly (REP 10.1).
7. Remove the Belt Cleaner (REP 9.17).
8. Remove the BTR 2 Assembly (REP 9.18).
9. Open the Bypass Tray / Registration Assembly.
10. Disconnect the ADC Sensor and TR0 Sensor connectors.
CAUTION
Ensure that the IBT Belt does not touch any other components during the removal. Never
touch the surface of the IBT Belt with your hands. (Hold the assembly by the ribs on either
side.)
11. Remove the IBT Assembly (Figure 1).
Replacement
1. Reinstall the IBT Assembly in the reverse order of removal.

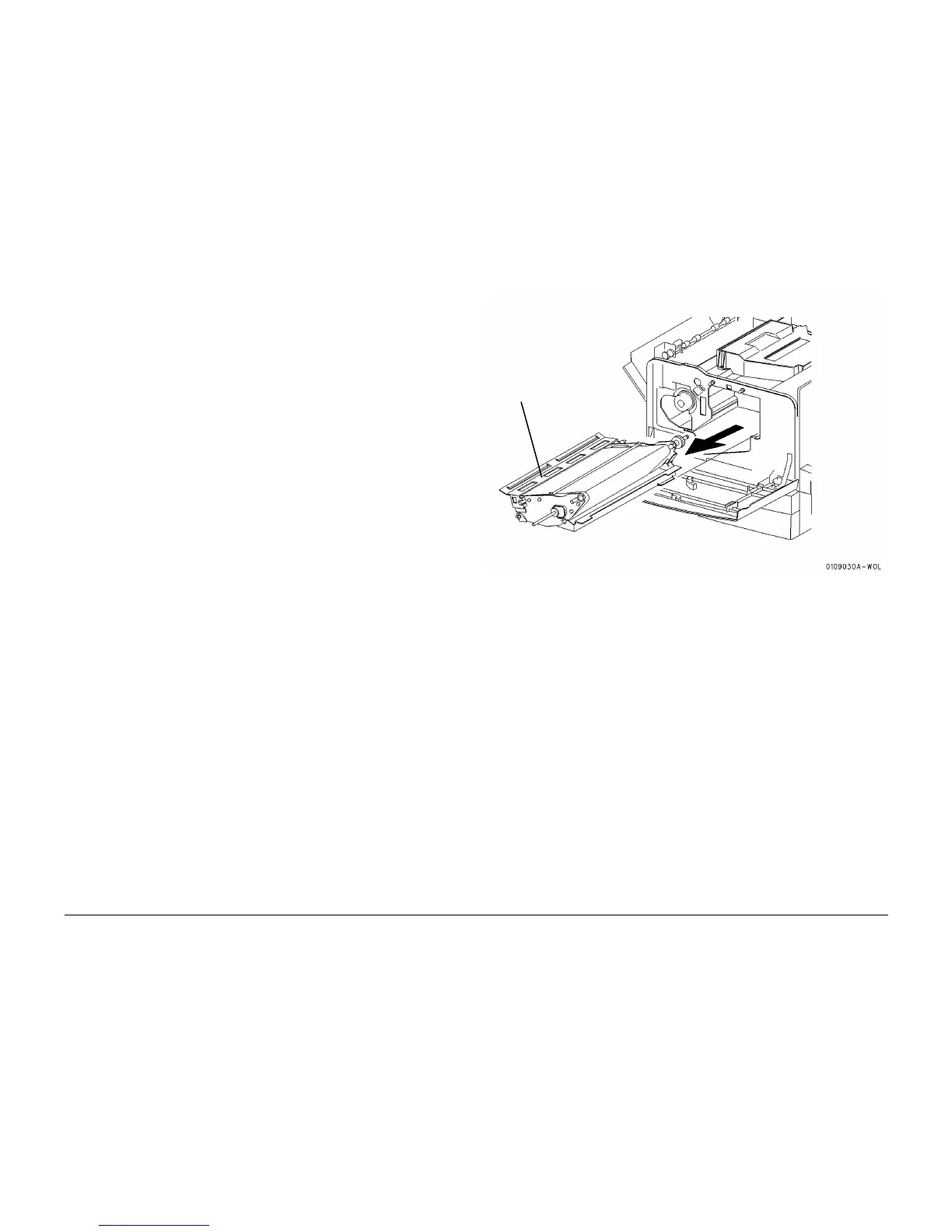

Figure 1 Removing the IBT Assembly
1
Lift slightly and remove
the IBT Assembly
To Next Page
