Phaser 790/DocuColor 2006
PL 13.8
Initial Issue
Parts List

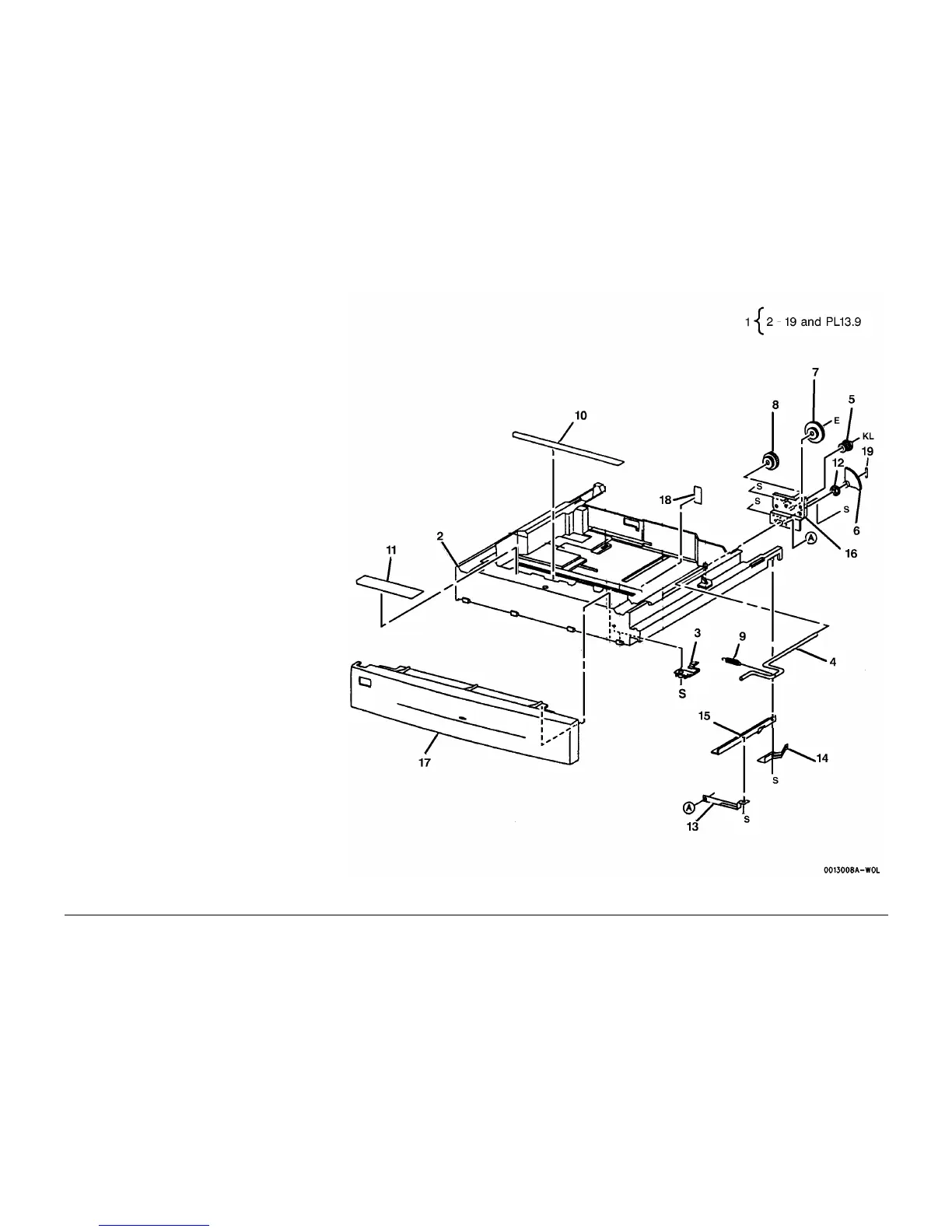

PL 13.8 Optional Feeder Assembly (8
of 9)
Item Part Description
1 050K42600 Paper Tray Assembly
2 – Tray Housing (P/O PL 13.8 Item 1)
3 – Paper Guide (P/O PL 13.8 Item 1)
4 – Lift Shaft (P/O PL 13.8 Item 1)
5 – Gear (P/O PL 13.8 Item 1)
6 – Gear (P/O PL 13.8 Item 1)
7 – Gear (P/O PL 13.8 Item 1)
8 – Gear (P/O PL 13.8 Item 1)
9 – Extension Spring (P/O PL 13.8 Item
1)
10 – Side End Label (P/O PL 13.8 Item
1)
11 – Label (P/O PL 13.8 Item 1)
12 – Bearing (P/O PL 13.8 Item 1)
13 – Spring (P/O PL 13.8 Item 1)
14 – Spring (P/O PL 13.8 Item 1)
15 – Rail (P/O PL 13.8 Item 1)
16 – Rear Plate (P/O PL 13.8 Item 1)
17 – Tray Front Cover (P/O PL 13.8 Item
1)
18 – Pad (P/O PL 13.8 Item 1)
19 – Gear Drive Pin (P/O PL 13.8 Item
1)
To Next Page
