Xerox Phaser 790 User Manual

10/00
5-60
Phaser 790/DocuColor 2006
PL 15.6
Initial Issue
Parts List

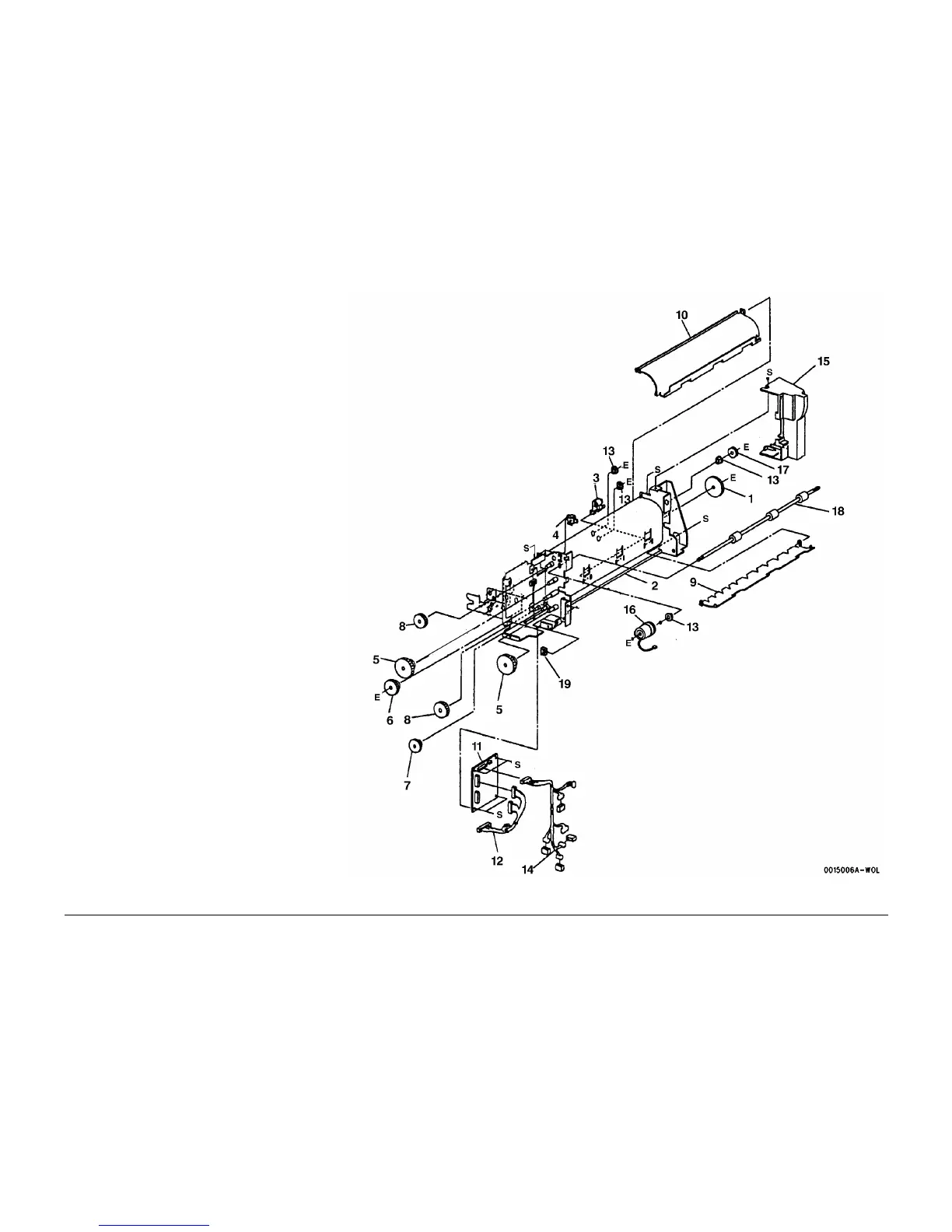

PL 15.6 Duplex Assembly (6 of 7)
Item Part Description
1 – Gear (P/O PL 15.5 Item 1)
2 – Turn Baffle (P/O PL 15.5 Item 1)
3 – Pinch Roll (P/O PL 15.5 Item 1)
4 110E93440 Cab Interlock
5 – Gear (P/O PL 15.5 Item 1)
6 – Gear (P/O PL 15.5 Item 1)
7 – Gear (P/O PL 15.5 Item 1)
8 – Gear (P/O PL 15.5 Item 1)
9 054K18400 Baffle
10 – Chute (P/O PL 15.5 Item 1)
11 160K70540 Duplex Controller PWB (REP 8.38)
12 – Harness (P/O PL 15.5 Item 1)
13 – Bearing (P/O PL 15.5 Item 1)
14 – Harness (P/O PL 15.5 Item 1)
15 802E12181 Inverter Front Cover
16 121K23790 Inverter Entrance Clutch
17 – Gear (P/O PL 15.5 Item 1)
18 022K57520 Inverter Roll
19 – Clamp (P/O PL 15.5 Item 1)
