Xerox Phaser 790 User Manual

10/00
5-29
Phaser 790/DocuColor 2006
PL 7.5
Parts List
Initial Issue

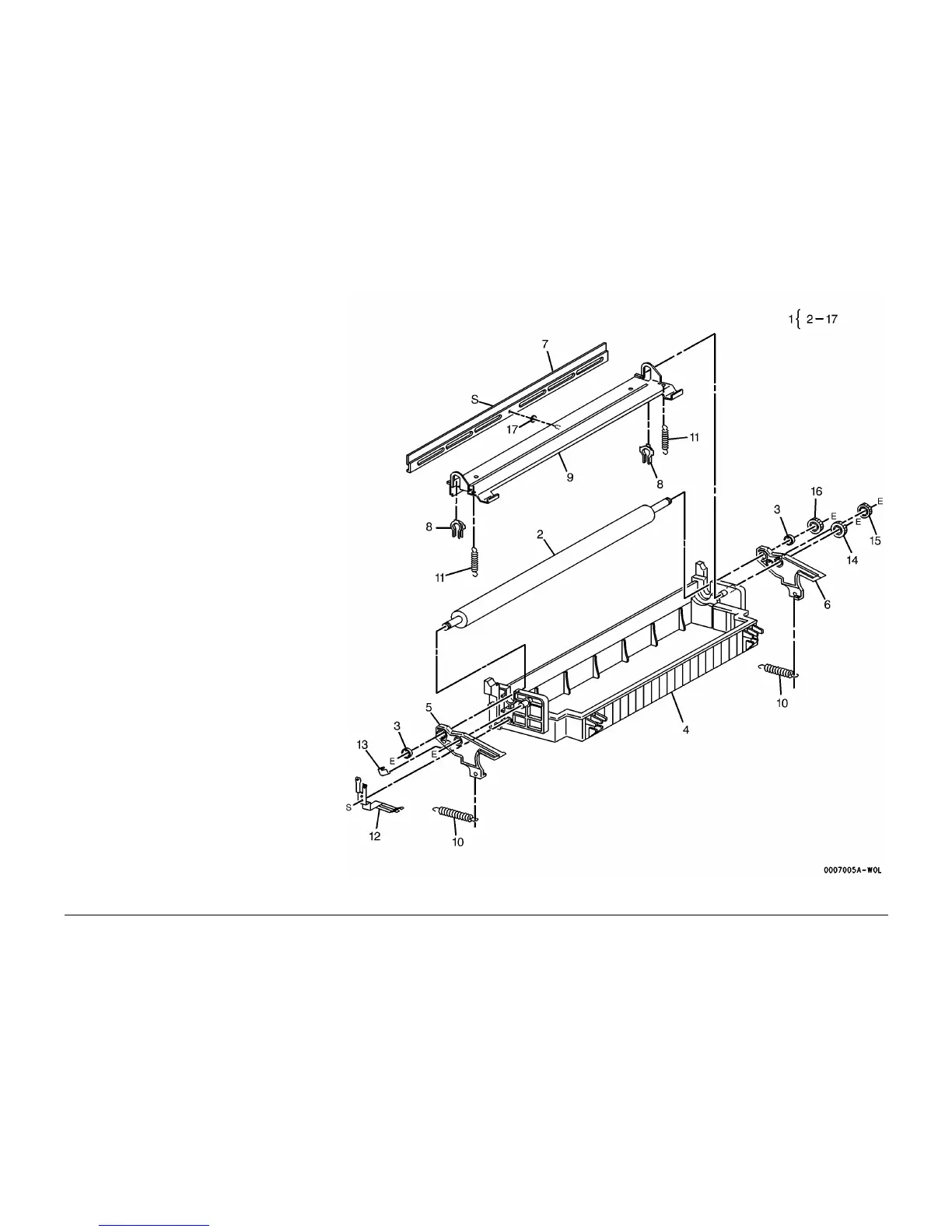

PL 7.5 IBT (5 of 5)
Item Part Description
1 802K14462 BTR 2 Assembly
2 – BTR 2 (P/O PL 7.5 Item 1)
3 – Bearing (P/O PL 7.5 Item 1)
4 – BTR Housing (P/O PL 7.5 Item 1)
5 – Front Arm (P/O PL 7.5 Item 1)
6 – Rear Arm (P/O PL 7.5 Item 1)
7 – BTR 2 Cleaner (P/O PL 7.5 Item 1)
8 – Support Bearing (P/O PL 7.5 Item
1)
9 – Support Plate (P/O PL 7.5 Item 1)
10 – BTR Spring (P/O PL 7.5 Item 1)
11 – Cleaner Spring (P/O PL 7.5 Item 1)
12 – Ground Contact Spring (P/O PL 7.5
Item 1)
13 – Ground Contact Plate (P/O PL 7.5
Item 1)
14 – Gear (P/O PL 7.5 Item 1)
15 – Gear (P/O PL 7.5 Item 1)
16 – Gear (P/O PL 7.5 Item 1)
17 – Insulator (P/O PL 7.5 Item 1)
