Xerox Phaser 790 User Manual

10/00
5-82
Phaser 790/DocuColor 2006
PL 19.5
Initial Issue
Parts List

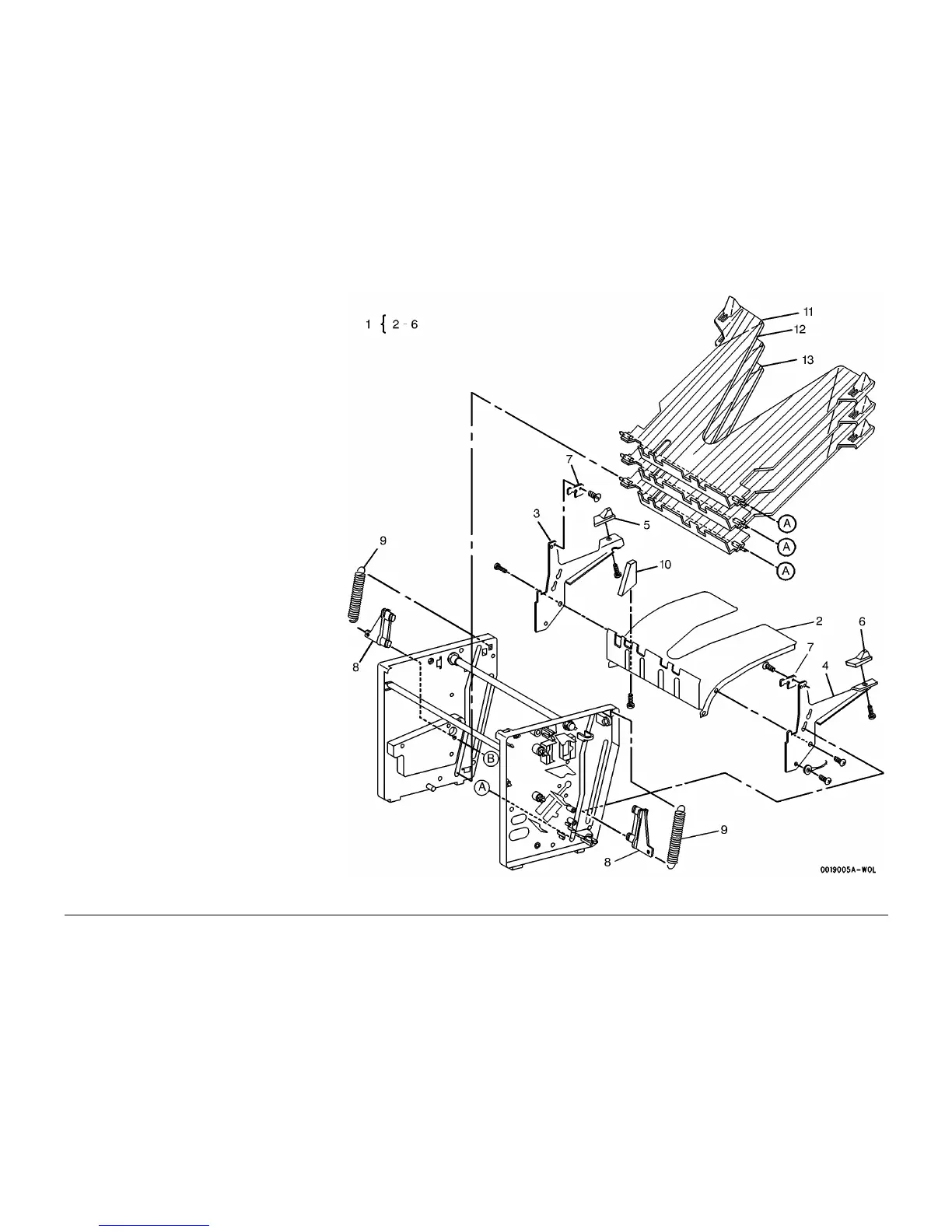

PL 19.5 Tray Support, Bin Tray
Item Part Description
1 050K42680 Stack Tray Assembly (ADJ 11.1)
2 – Stack Tray (P/O PL 19.5 Item 1)
3 – Front Frame (P/O PL 19.5 Item 1)
4 – Rear Frame (P/O PL 19.5 Item 1)
5 – Front Pad (P/O PL 19.5 Item 1)
6 – Rear Pad (P/O PL 19.5 Item 1)
7 – Frame Top (Not Spared)
8 – Support (Not Spared)
9 809E27480 Spring
10 – Aligner (Not Spared)
11 050E16780 Bin Tray 1-7 (REP 11.14 ADJ 11.1)
12 050K42580 Bin Tray 8, 9 (REP 11.14 ADJ 11.1)
13 050K42700 Bin Tray 10 (REP 11.14 ADJ 11.1)
