10/00
4-144
Phaser 790/DocuColor 2006
REP 14.7, REP 14.8
Initial Issue
Repairs and Adjustments
REP 14.7 Filter
Parts List on PL 1.2
Removal
WARNING
To avoid personal injury or shock, do not perform repair activities with the power switch
on or electrical power applied to the machine.
1. Switch off the machine power and disconnect the machine Power Cord.
2. Remove the Filter (Figure 1).
Replacement
1. Reinstall the Filter in the reverse order of removal.

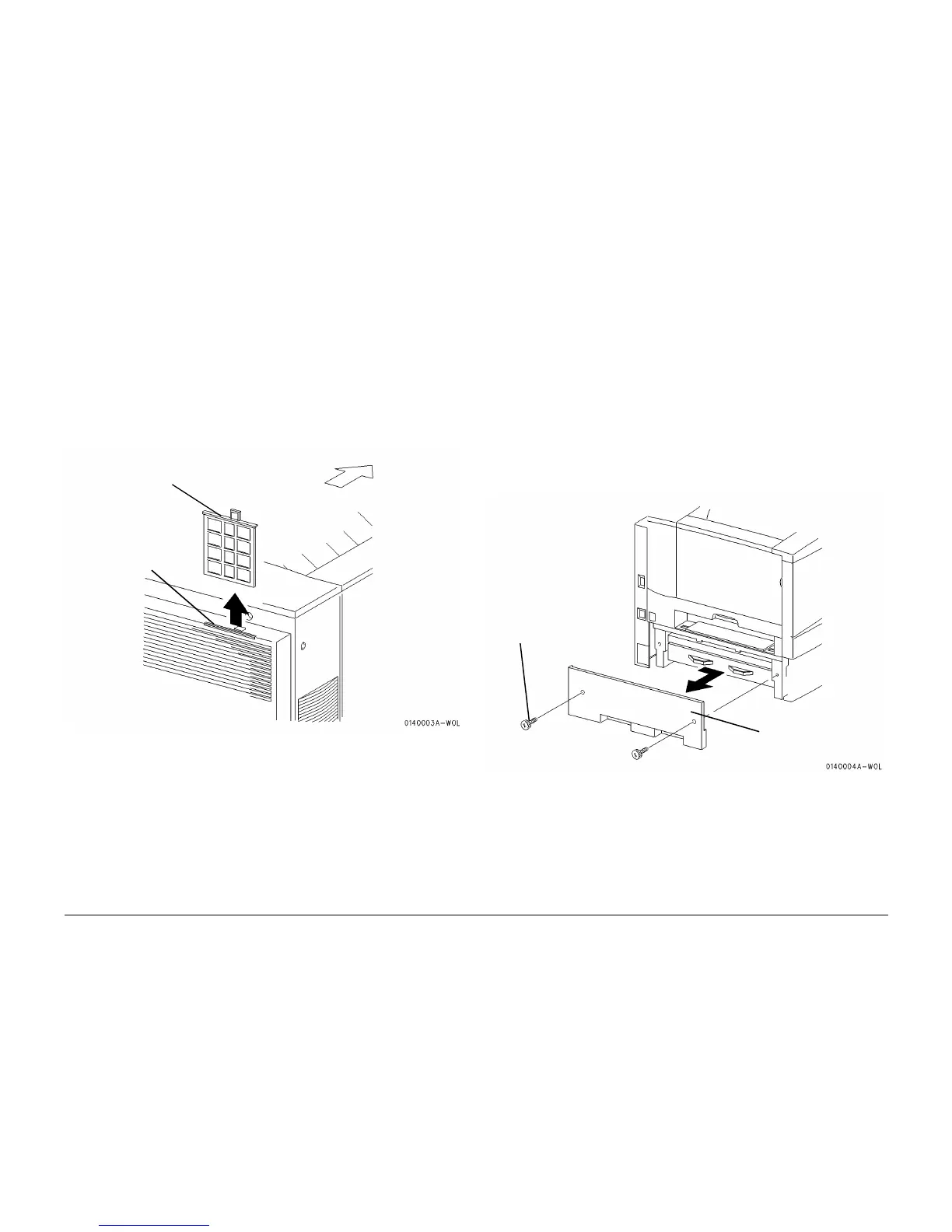

Figure 1 Removing the Filter
REP 14.8 Left Lower Cover
Parts List on PL 1.1
Removal
WARNING
To avoid personal injury or shock, do not perform repair activities with the power switch
on or electrical power applied to the machine.
1. Switch off the machine power and disconnect the machine Power Cord.
2. Remove the Tray 1 Assembly (REP 7.6).
3. Remove the Front Lower Cover (REP 14.3).
4. Remove the Rear Cover (REP 14.6).
5. Remove the Left Lower Cover (Figure 1).
Replacement
1. Reinstall the Left Lower Cover in the reverse order of removal.
Figure 1 Removing the Left Lower Cover
FRONT
1
Disengage the hooks of
the cover from the Filter
2
Lift and remove the Filter
1
Remove the two
screws
2
Remove the Left
Lower Cover
