10/00
5-47
Phaser 790/DocuColor 2006
PL 13.5
Parts List
Initial Issue

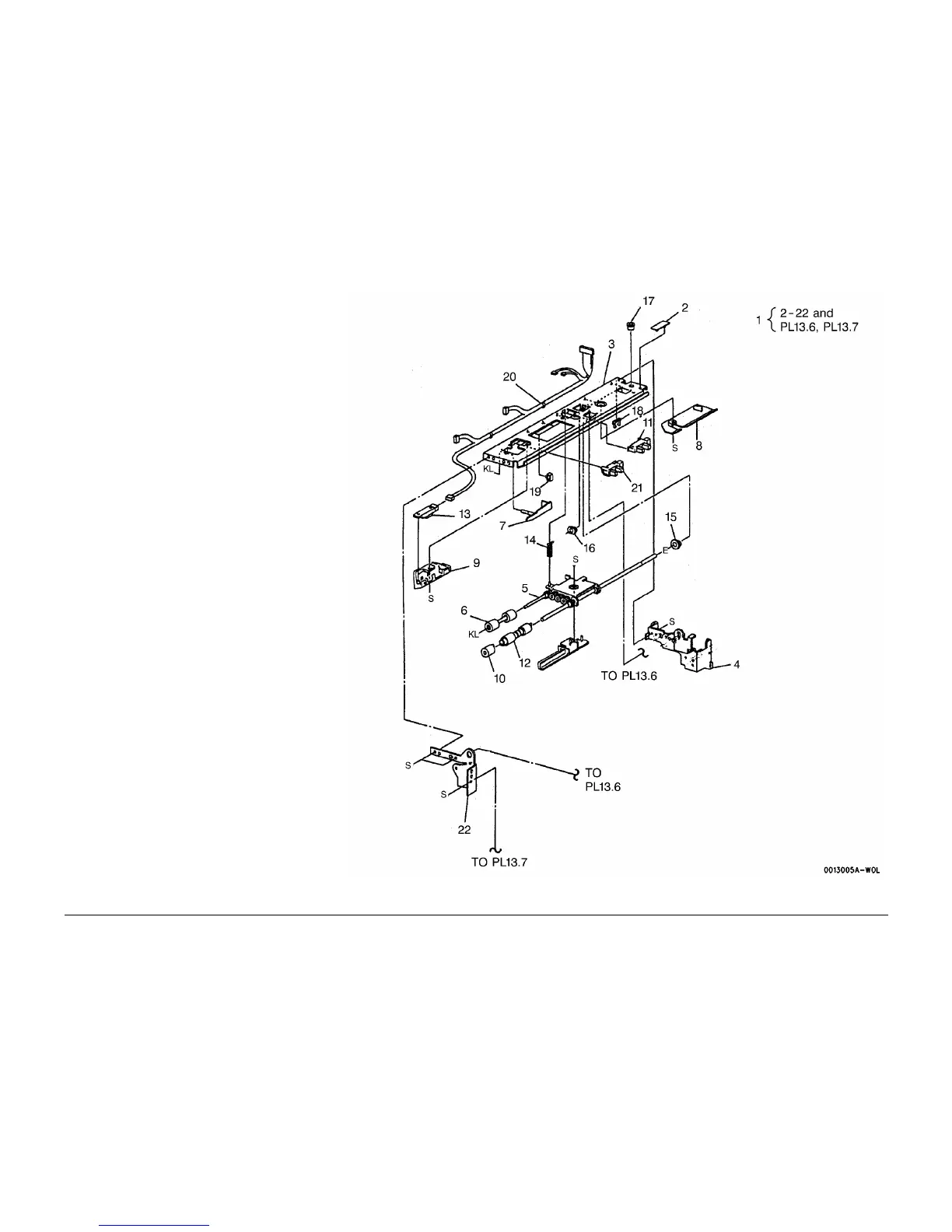

PL 13.5 Optional Feeder Assembly (5
of 9)
Item Part Description
1 059K18770 Paper Feeder Assembly (REP
8.23)
2 – Sheet Clamp (P/O PL 13.5 Item 1)
3 – Upper Feeder Frame (P/O PL 13.5
Item 1)
4 – Rear Frame (P/O PL 13.5 Item 1)
5 – Support (P/O PL 13.5 Item 1)
6 059K14300 Nudger Roll
7 – No Paper Sensor Actuator (P/O PL
13.5 Item 1)
8 – Rear Upper Chute (P/O PL 13.5
Item 1)
9 – Front Upper Chute (P/O PL 13.5
Item 1)
10 – Spacer (P/O PL 13.5 Item 1)
11 – Nudger Sensor (P/O PL 13.5 Item
1)
12 059K17250 Feed Roll
13 130E82650 Feed Out Sensor
14 – Spring (P/O PL 13.5 Item 1)
15 – Bearing (P/O PL 13.5 Item 1)
16 – Bearing (P/O PL 13.5 Item 1)
17 – Bushing (P/O PL 13.5 Item 1)
18 – Clamp (P/O PL 13.5 Item 1)
19 – Clamp (P/O PL 13.5 Item 1)
20 – Harness (P/O PL 13.5 Item 1)
21 130E81600 No Paper Sensor
22 – Front Frame (P/O PL 13.5 Item 1)
To Next Page
