10/00
5-23
Phaser 790/DocuColor 2006
PL 6.1
Parts List
Initial Issue

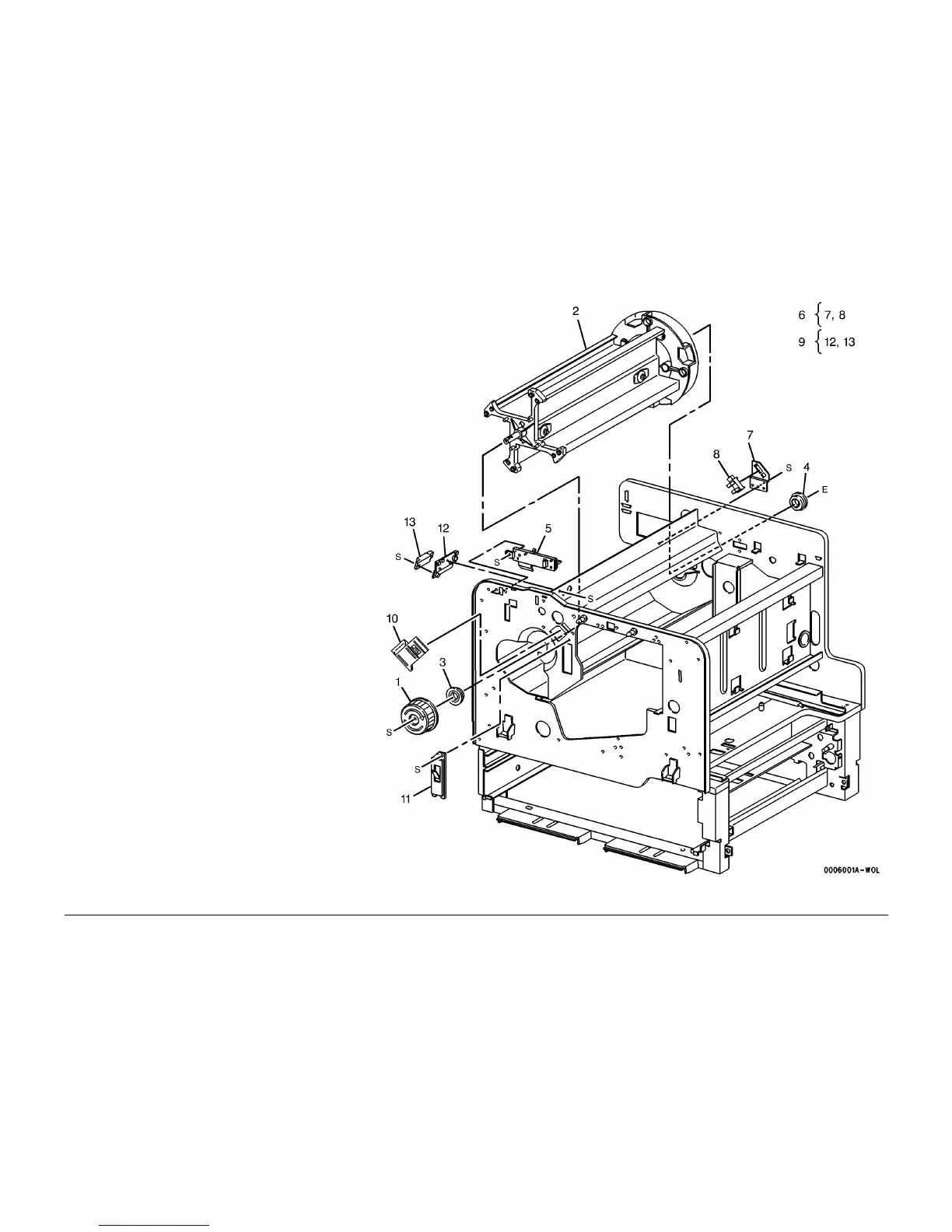

PL 6.1 Development (1 of 2)
Item Part Description
1 003K84303 Rotary Knob
2 – Rotary Frame (Not Spared) (REP
9.12 ADJ 9.1)
3 – Rotary Front Bearing (Not Spared)
4 – Rotary Rear Bearing (Not Spared)
5 600K69091 Rotary Latch
6 – Rotary Sensor Assembly (Not
Spared)
7 – Rotary Sensor Plate (Not Spared)
8 130E83060 Rotary Sensor (REP 9.11)
9 – Cartridge Sensor Assembly (Not
Spared)
10 – Developer Discharge Holder (Not
Spared)
11 600K85301 Developer Contact Plate
12 – Cartridge Sensor Plate (Not
Spared)
13 130E82830 Cartridge Sensor (REP 9.13)
To Next Page
