10/00

5-81

Phaser 790/DocuColor 2006

PL 19.4

Parts List

Initial Issue

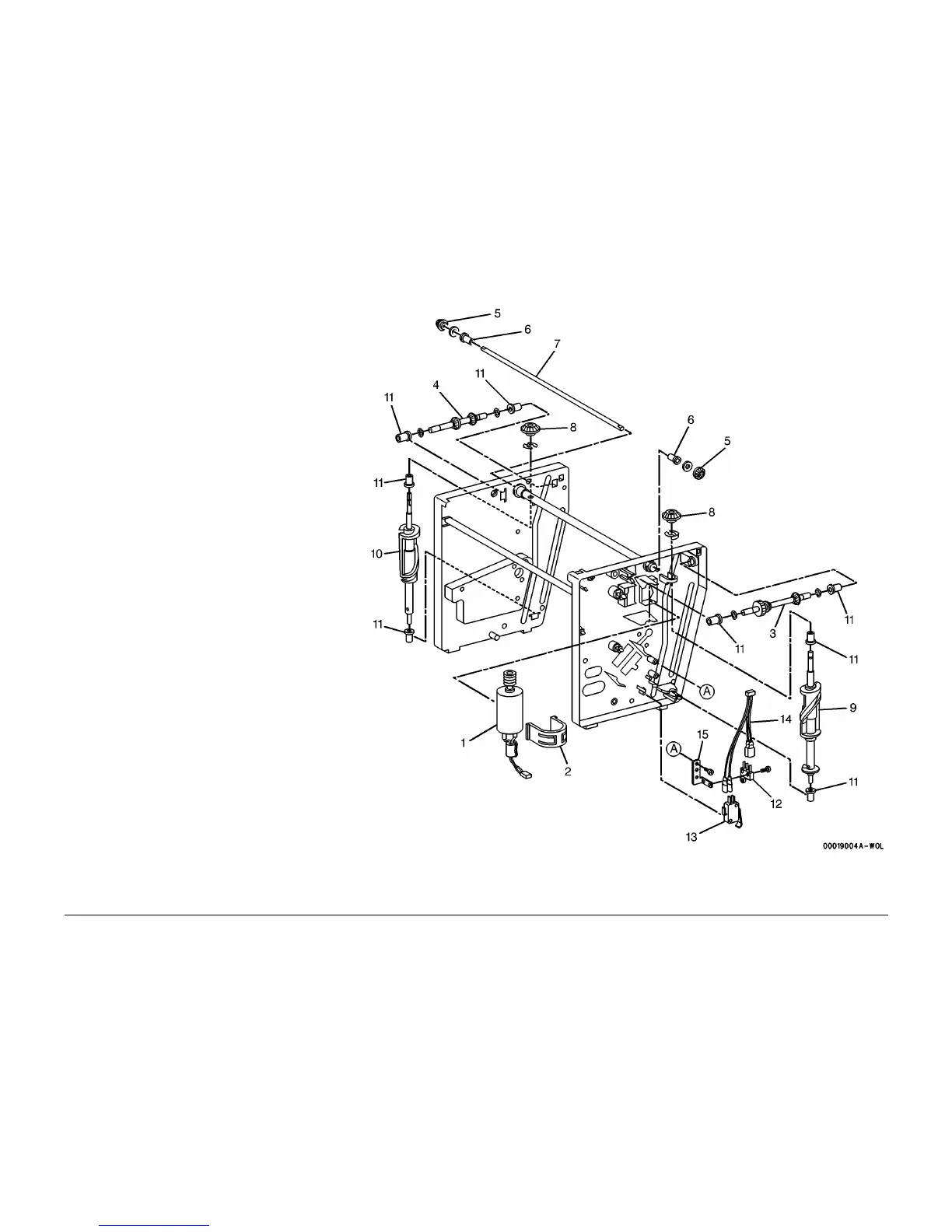

PL 19.4 Bin Drive Motor, Lead

Cam/Switch

Item Part Description

1 127E82340 Bin Drive Motor (REP 11.9)

2 049E48940 Support (Not Spared)

3 006K21260 Rear Gear Shaft (REP 11.10)

4 006K21270 Front Gear Shaft (REP 11.10)

5 – Bevel Gear (Not Spared)

6 – Bearing (Not Spared)

7 – Shaft (Not Spared)

8 007E62620 Gear

9 008K91280 Rear Bin Cam (REP 11.11 ADJ

11.1)

10 008K91270 Front Bin Cam (REP 11.11 ADJ

11.1)

11 013E85600 Bearing

12 110K10730 Bin Cam Switch (REP 11.12)

13 110K10750 Bin Home Switch (REP 11.13)

14 – Harness (Not Spared)

15 – Bracket (Not Spared)
