Xerox Phaser 790 User Manual

10/00
4-92
Phaser 790/DocuColor 2006
REP 9.3
Initial Issue
Repairs and Adjustments
REP 9.3 ROS
Parts List on PL 5.1
Removal
WARNING
To avoid personal injury or shock, do not perform repair activities with the power switch
on or electrical power applied to the machine.
1. Switch off the machine power and disconnect the machine Power Cord.
2. Remove the Top Cover Assembly (REP 14.4).
3. Prepare to remove the ROS (Figure 1).

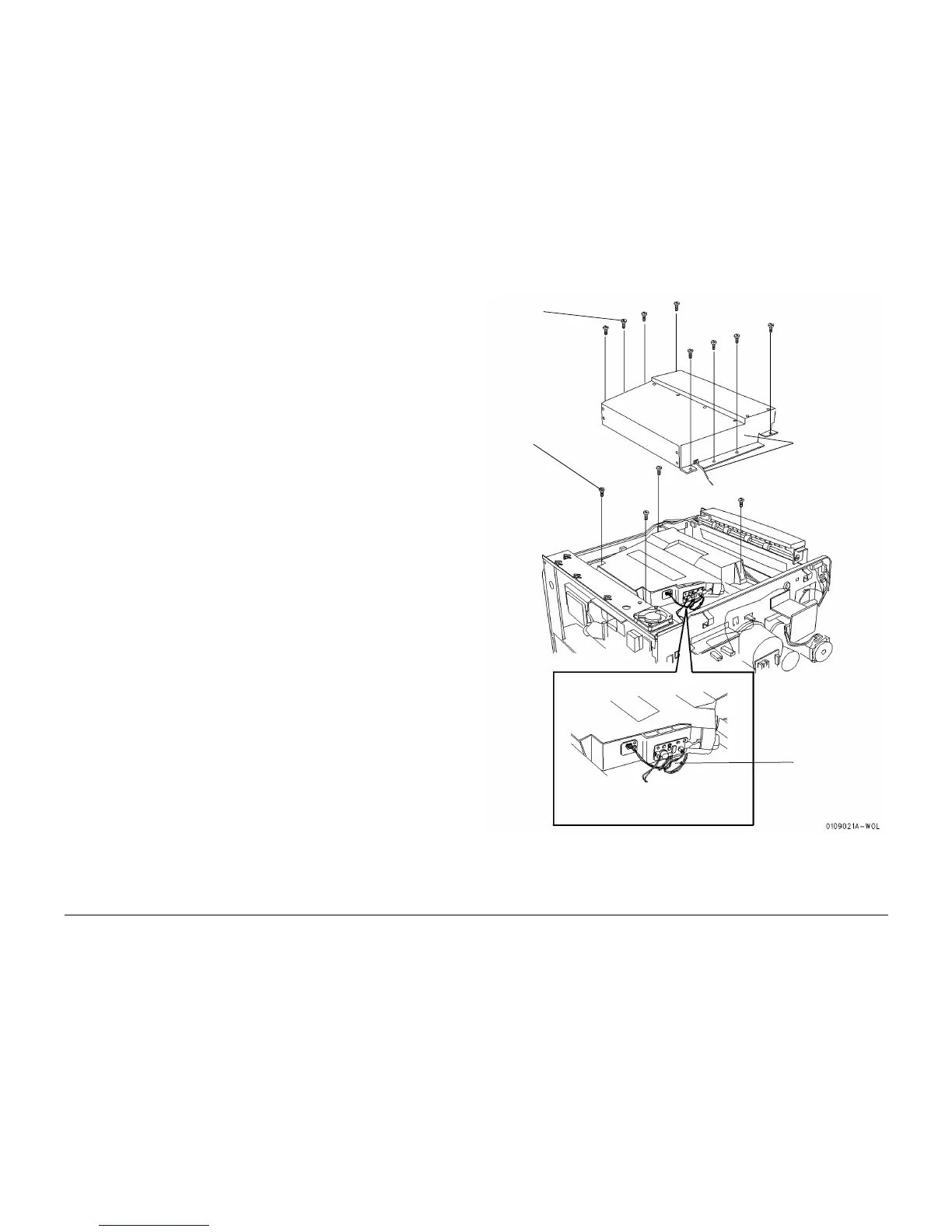

Figure 1 Preparing to Remove the ROS
3
Disconnect the con-
nectors
1
Remove the
screws
4
Remove the
screws
2
Release the har-
ness from the
clamp, then
remove the cover
