10/00
5-28
Phaser 790/DocuColor 2006
PL 7.4
Initial Issue
Parts List

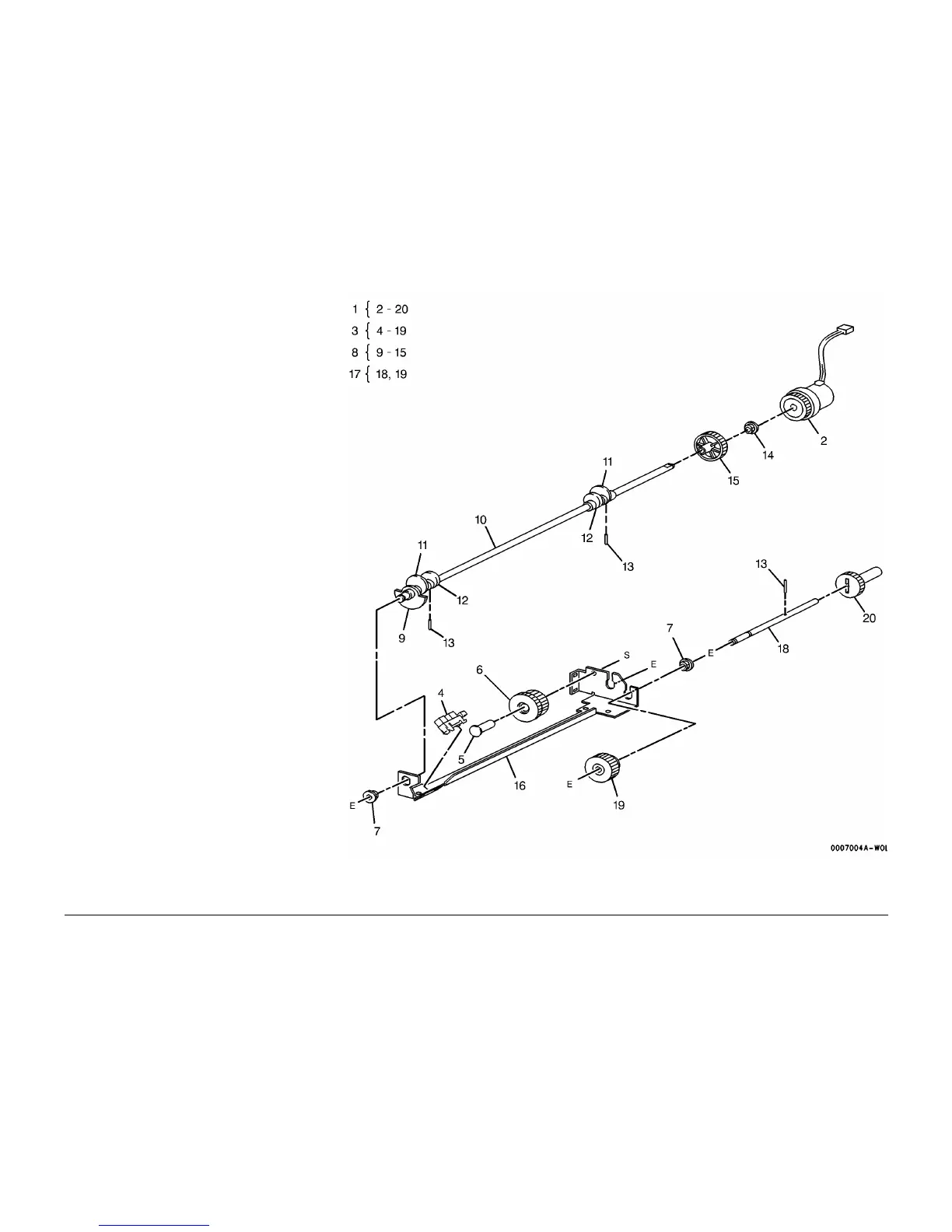

PL 7.4 IBT (4 of 5)
Item Part Description
1 008K91550 BTR 2 Cam Assembly
2 121K22730 BTR 2 Cam Clutch (REP 9.23)
3 – Cam Assembly (P/O PL 7.4 Item 1)
4 – BTR 2 Cam Sensor (P/O PL 7.4
Item 1)
5 – Gear Shaft (P/O PL 7.4 Item 1)
6 – Gear (P/O PL 7.4 Item 1)
7 – Bearing (P/O PL 7.4 Item 1)
8 – BTR Cam Assembly (P/O PL 7.4
Item 1)
9 – BTR Actuator (P/O PL 7.4 Item 1)
10 – Cam Shaft (P/O PL 7.4 Item 1)
11 – Outer BTR Cam (P/O PL 7.4 Item
1)
12 – Inner BTR Cam (P/O PL 7.4 Item
1)
13 – Pin (P/O PL 7.4 Item 1)
14 – Bearing (P/O PL 7.4 Item 1)
15 – Gear (P/O PL 7.4 Item 1)
16 – Bracket (P/O PL 7.4 Item 1)
17 – Torque Gear Assembly (P/O PL 7.4
Item 1)
18 – Gear Shaft (P/O PL 7.4 Item 1)
19 – Torque Gear (P/O PL 7.4 Item 1)
20 – Gear (P/O PL 7.4 Item 1)
