5-10

Phaser 790/DocuColor 2006

PL 1.4

Initial Issue

Parts List

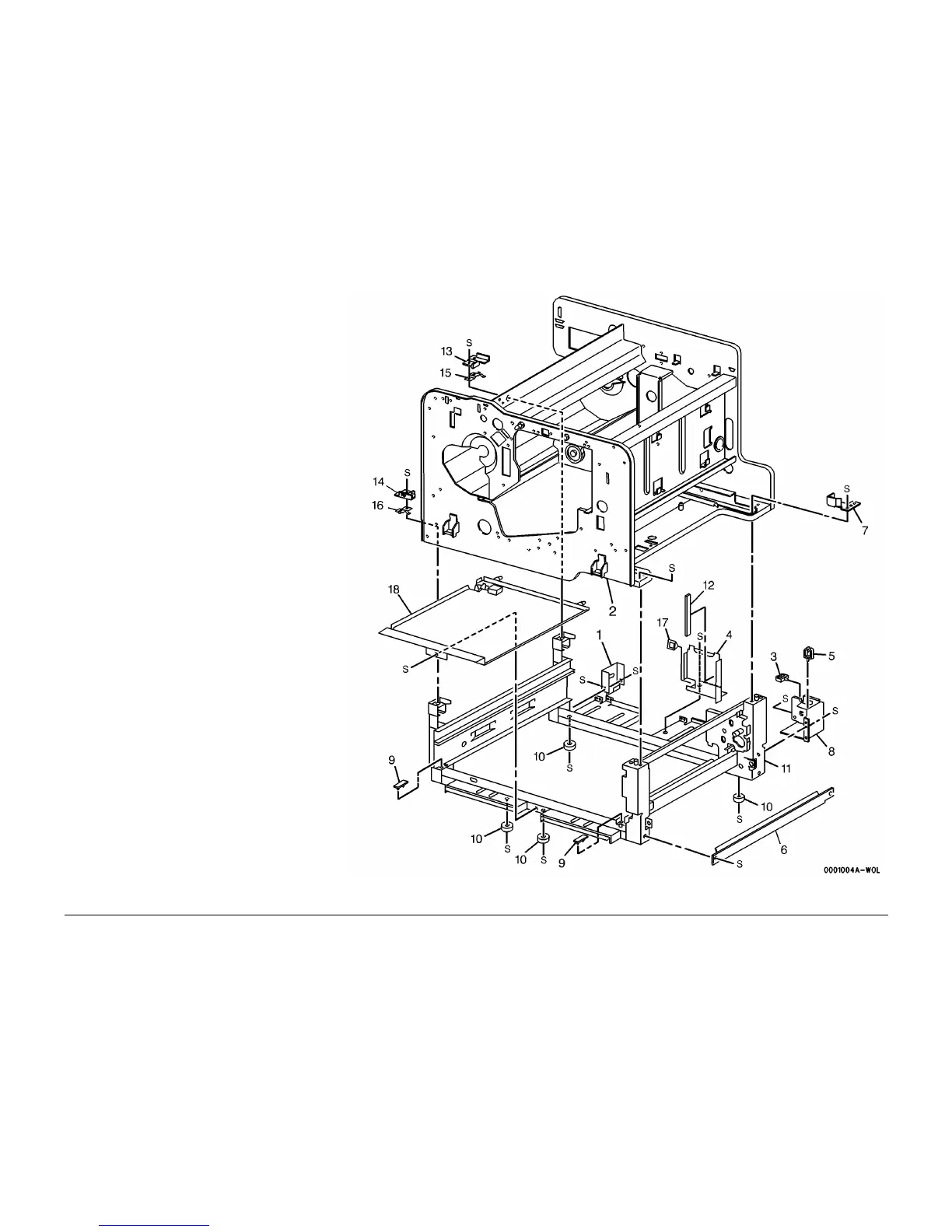

PL 1.4 Base Frame (2 of 2)

Item Part Description

1 – Duplex Connector Bracket (Not

Spared)

2 – Base Frame (Not Spared)

3 – Saddle (Not Spared)

4 – Cover Bracket (Not Spared)

5 – Clamp (Not Spared)

6 – Right Hand Lower Bracket (Not

Spared)

7 – Paper Handling Guide Bracket

(Not Spared)

8 – Bracket (Not Spared)

9 – Clamp (Not Spared)

10 – Frame Foot (Not Spared)

11 – Feeder Frame (Not Spared)

12 – Bushing (Not Spared)

13 – Fuser Rear Guide (Not Spared)

14 – Fuser Front Guide (Not Spared)

15 – Fuser Rear Spring (Not Spared)

16 – Fuser Front Spring (Not Spared)

17 – Edge Saddle-U (Not Spared)

18 – Lower Chute (Not Spared)
