10/00
4-16
Phaser 790/DocuColor 2006
REP 4.2
Initial Issue
Repairs and Adjustments
REP 4.2 Fuser Drive Unit
Parts List on PL 10.1
Removal
WARNING
To avoid personal injury or shock, do not perform repair activities with the power switch
on or electrical power applied to the machine.
1. Switch off the machine power and disconnect the machine Power Cord.
2. Remove the Rear Cover (REP 14.6).
3. Remove the Fuser Assembly (REP 10.1).
4. Remove the Fuser Motor (REP 4.3).
5. Remove the LVPS (REP 1.1).
6. Remove the Fuser Drive Unit (Figure 1).
Replacement
CAUTION
Be careful not to pinch the harness when reinstalling the Fuser Drive Unit.
1. Reinstall the Fuser Drive Unit in the reverse order of removal.

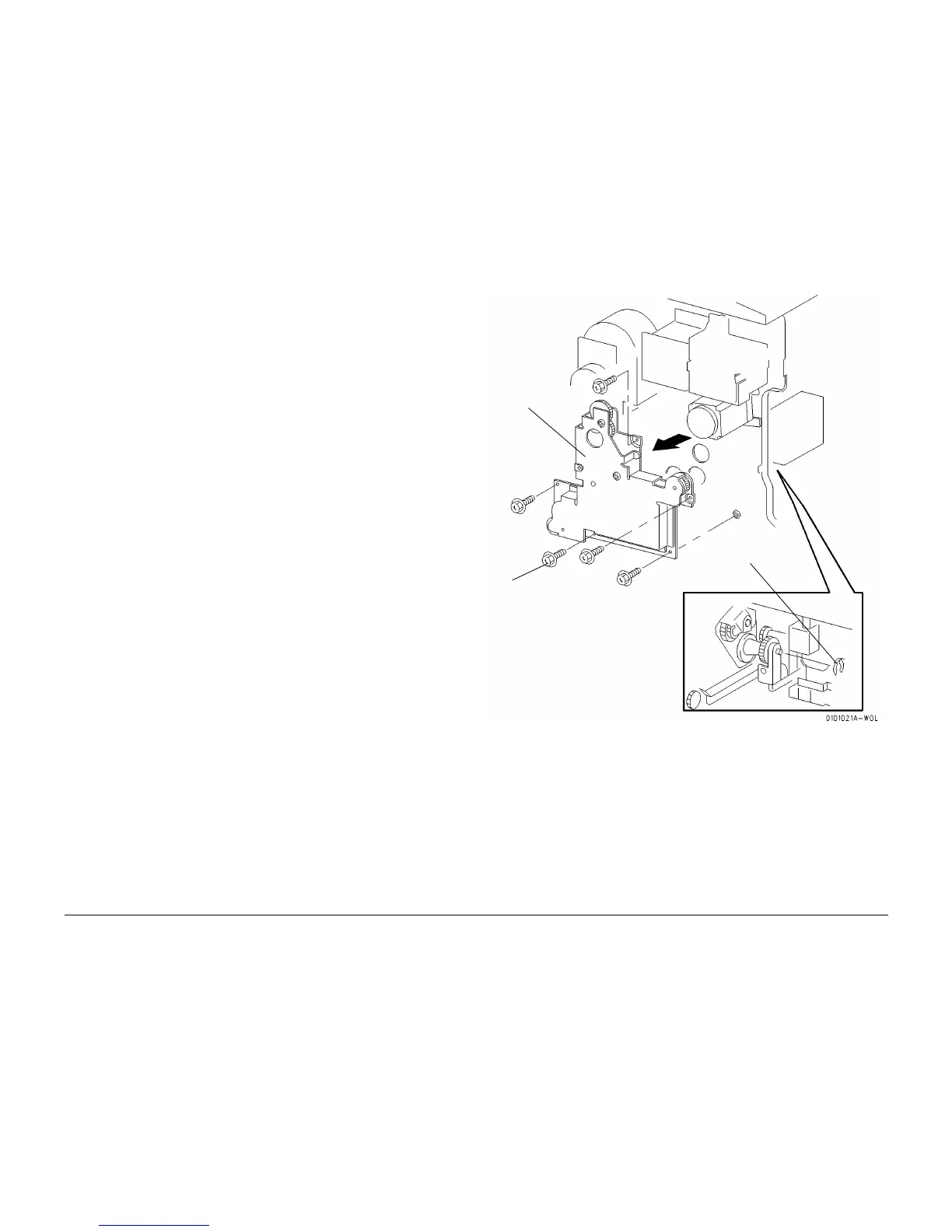

Figure 1 Removing the Fuser Drive Unit
1
Remove the screw
securing the Drive
Clamp-N
2
Remove the K-
clip
3
Remove the five
screws
4
Remove the
Fuser Drive
Unit
