Phaser 790/DocuColor 2006
REP 6.11
Repairs and Adjustments
Initial Issue
REP 6.11 PWB Box
Parts List on PL 16.1
Removal
WARNING
To avoid personal injury or shock, do not perform repair activities with the power switch
on or electrical power applied to the machine.
1. Switch off the machine power and disconnect the machine Power Cord.
2. Remove the Platen Glass (REP 6.1).
3. Remove the ADF Assembly (REP 5.1).
4. Remove the Right Cover from the Scanner (REP 6.2).
5. Remove the Rear Cover from the Scanner (REP 6.4).
6. Remove the connector cover (Figure 1).

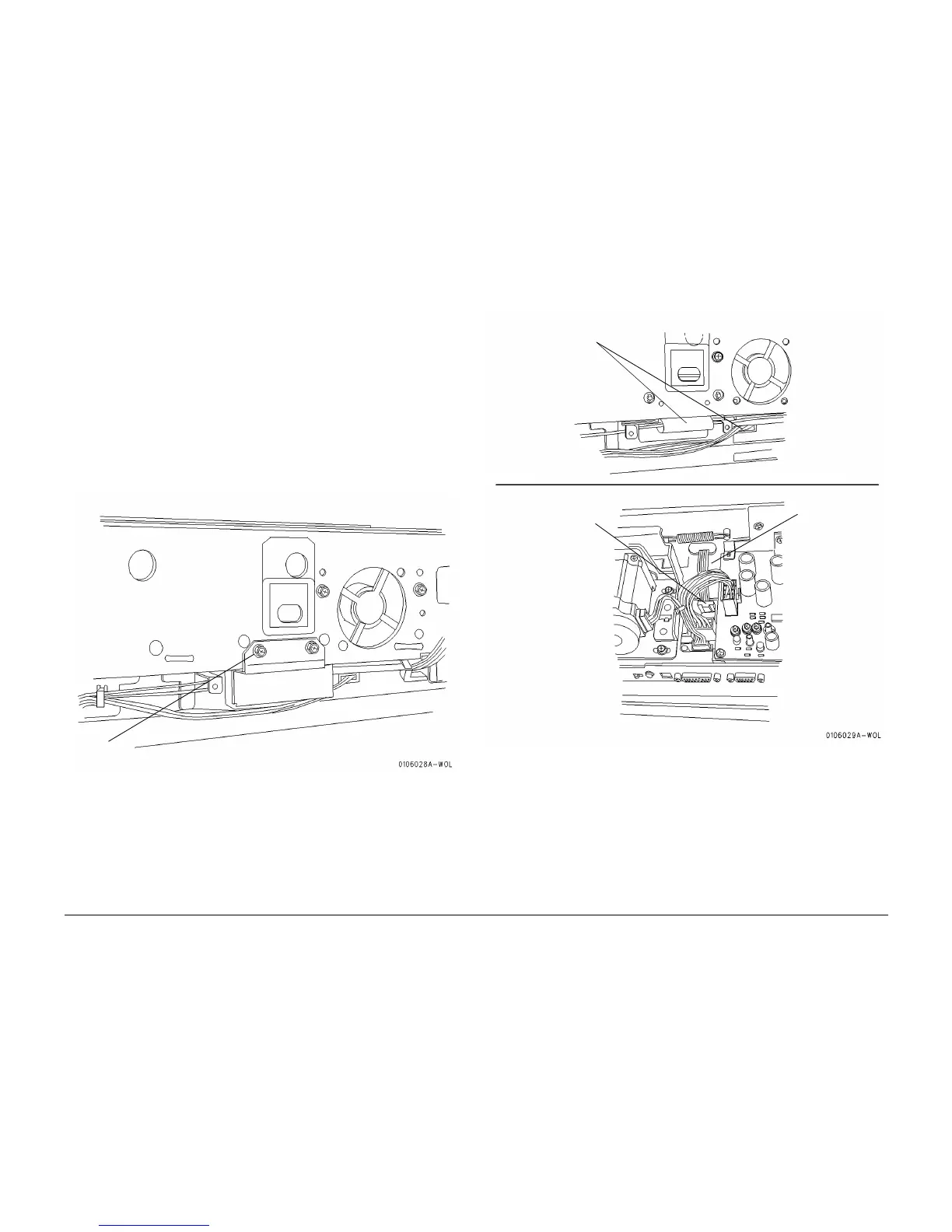

Figure 1 Removing the Connector Cover
8. Disconnect five connectors from the ICM Main PWB (Figure 2).
Figure 2 Disconnecting the Connectors
1
Remove the screws (2) and connector cover
2
At the rear of the
Scanner, disconnect
the connectors (3)
1
On the right side of the
Scanner, disconnect
the Ribbon Cable and
connectors
3
Loosen the screw
on the bracket
underneath the
Ribbon Cable
To Next Page
