10/00
4-76
Phaser 790/DocuColor 2006
REP 8.26, REP 8.27
Initial Issue
Repairs and Adjustments
REP 8.26 Turn Clutch
Parts List on PL 13.6
Removal
WARNING
To avoid personal injury or shock, do not perform repair activities with the power switch
on or electrical power applied to the machine.
1. Switch off the machine power and disconnect the machine Power Cord.
2. Remove the Paper Feeder Assembly. (REP 8.23)
3. Remove the Turn Clutch. (Figure 1)

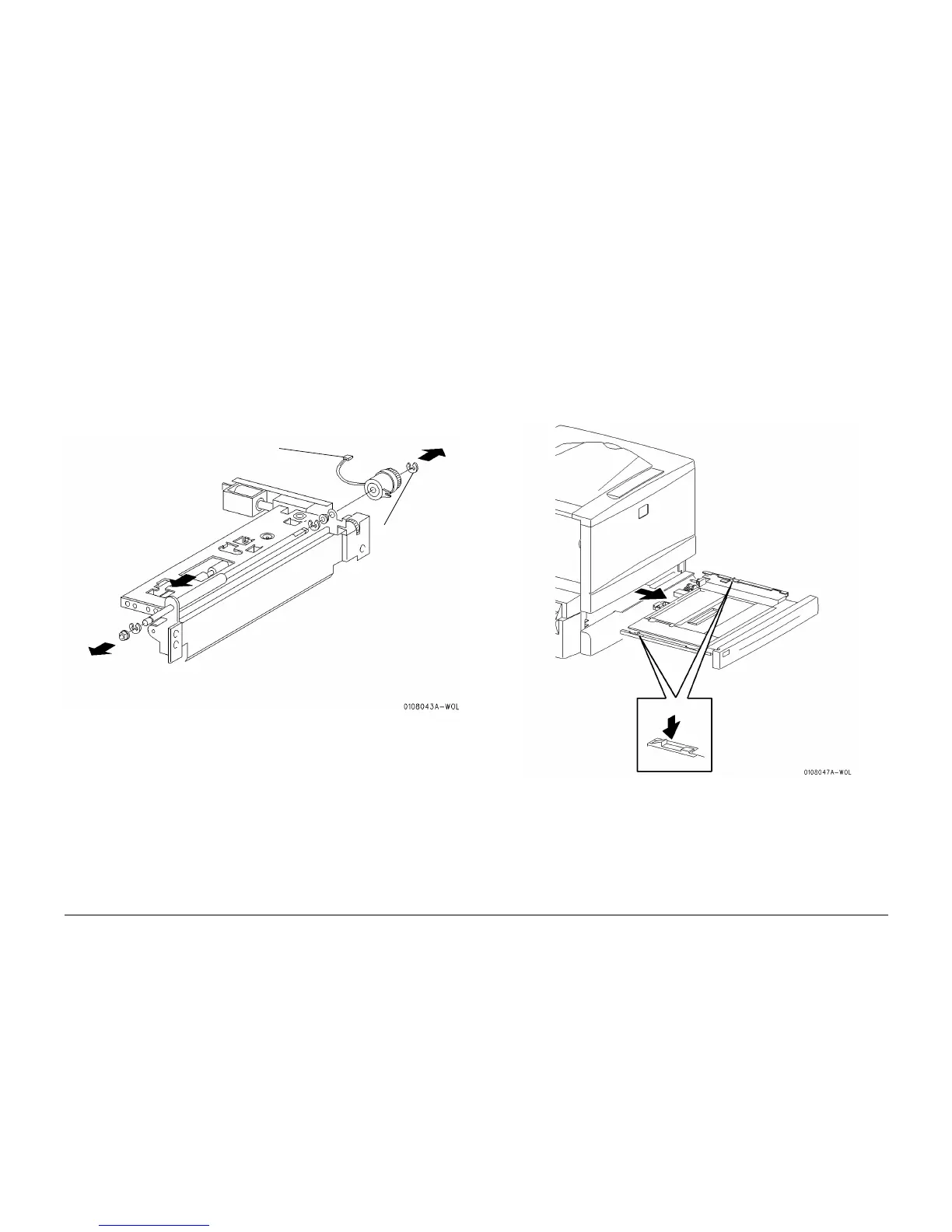

Figure 1 Removing the Turn Clutch
Replacement
1. Perform the removal procedure in reverse.
REP 8.27 Duplex Tray Assembly
Parts List on PL 15.3
Removal
WARNING
To avoid personal injury or shock, do not perform repair activities with the power switch
on or electrical power applied to the machine.
1. Switch off the machine power and disconnect the machine Power Cord.
2. Remove the Duplex Tray Assembly. (Figure 1)
Figure 1 Removing the Duplex Tray Assembly
Replacement
1. Perform the removal procedure in reverse.
1
Disconnect the
connector
2
Remove the E-ring
and Turn Clutch
1
Release the catches
and pull the Duplex Tray
Assembly straight out
from the machine
To Next Page
