Xerox Phaser 790 User Manual

10/00
4-91
Phaser 790/DocuColor 2006
REP 9.1, REP 9.2
Repairs and Adjustments
Initial Issue
REP 9.1 Copy/Print Cartridge
Parts List on PL 5.1
Removal
WARNING
To avoid personal injury or shock, do not perform repair activities with the power switch
on or electrical power applied to the machine.
1. Switch off the machine power and disconnect the machine Power Cord.
CAUTION
Be careful not to touch the surface of the Copy/Print Cartridge when removing the cartridge.
After removing, be sure to lay the Copy/Print Cartridge in the horizontal position in a safe place
that is not exposed to light.
2. Remove the Copy/Print Cartridge (Figure 1).
Replacement
Accurately align the Rail Assembly and Copy/Print Cartridge using the positioning marks.
Reinstall the Copy/Print Cartridge in the reverse order of removal.

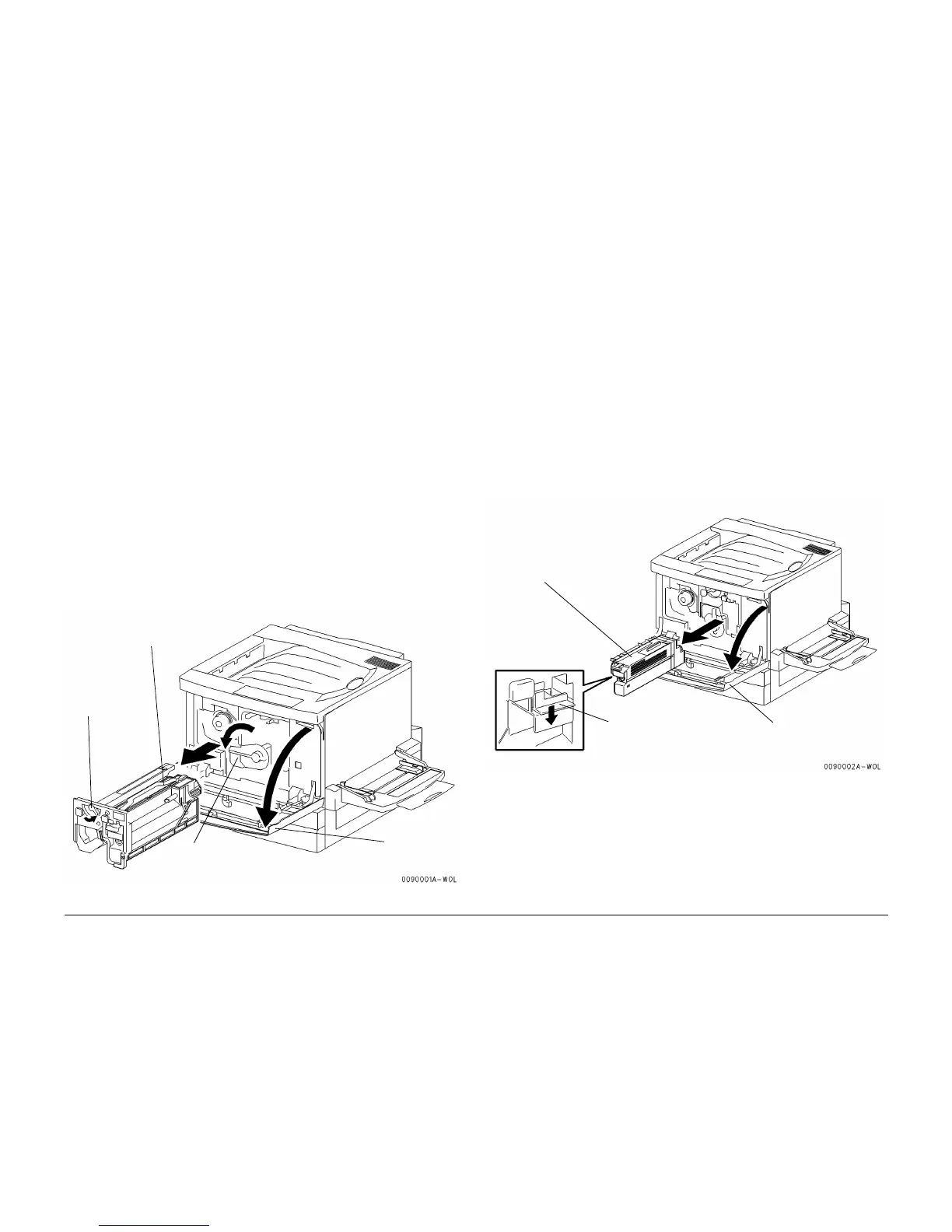

Figure 1 Removing the Copy/Print Cartridge
REP 9.2 Waste Container
Parts List on PL 5.1
Removal
WARNING
To avoid personal injury or shock, do not perform repair activities with the power switch
on or electrical power applied to the machine.
1. Switch off the machine power and disconnect the machine Power Cord.
CAUTION
After removing, be sure to lay the Waste Container in the horizontal position in a safe place.
2. Remove the Waste Container (Figure 1).
Replacement
1. Reinstall the Waste Container in the reverse order of removal.
2. Push the Waste Container in securely until it hooks into place.
Figure 1 Removing the Waste Container
1
Open the Front
Cover
2
Turn the Tension Lever
4
Remove the Copy/
Print Cartridge
3
Turn the lever to
the Unlock posi-
tion
1
Open the Front Cover
2
Push down to release the
container
3
Remove the Waste
Container
