Phaser 790/DocuColor 2006
REP 4.6
Repairs and Adjustments
Initial Issue
REP 4.6 Process Drive Unit
Parts List on PL 10.1
Removal
WARNING
To avoid personal injury or shock, do not perform repair activities with the power switch
on or electrical power applied to the machine.
1. Switch off the machine power and disconnect the machine Power Cord.
2. Remove the Rear Cover (REP 14.6).
3. Remove the Process Drive Unit (Figure 1).
Replacement
CAUTION
Failure to align the positioning boss of the printer frame with the positioning hole of the Process
Drive Unit during the replacement could cause problems.
1. Align the positioning boss of the printer frame with the positioning hole of the Process
Drive Unit before securing the unit.

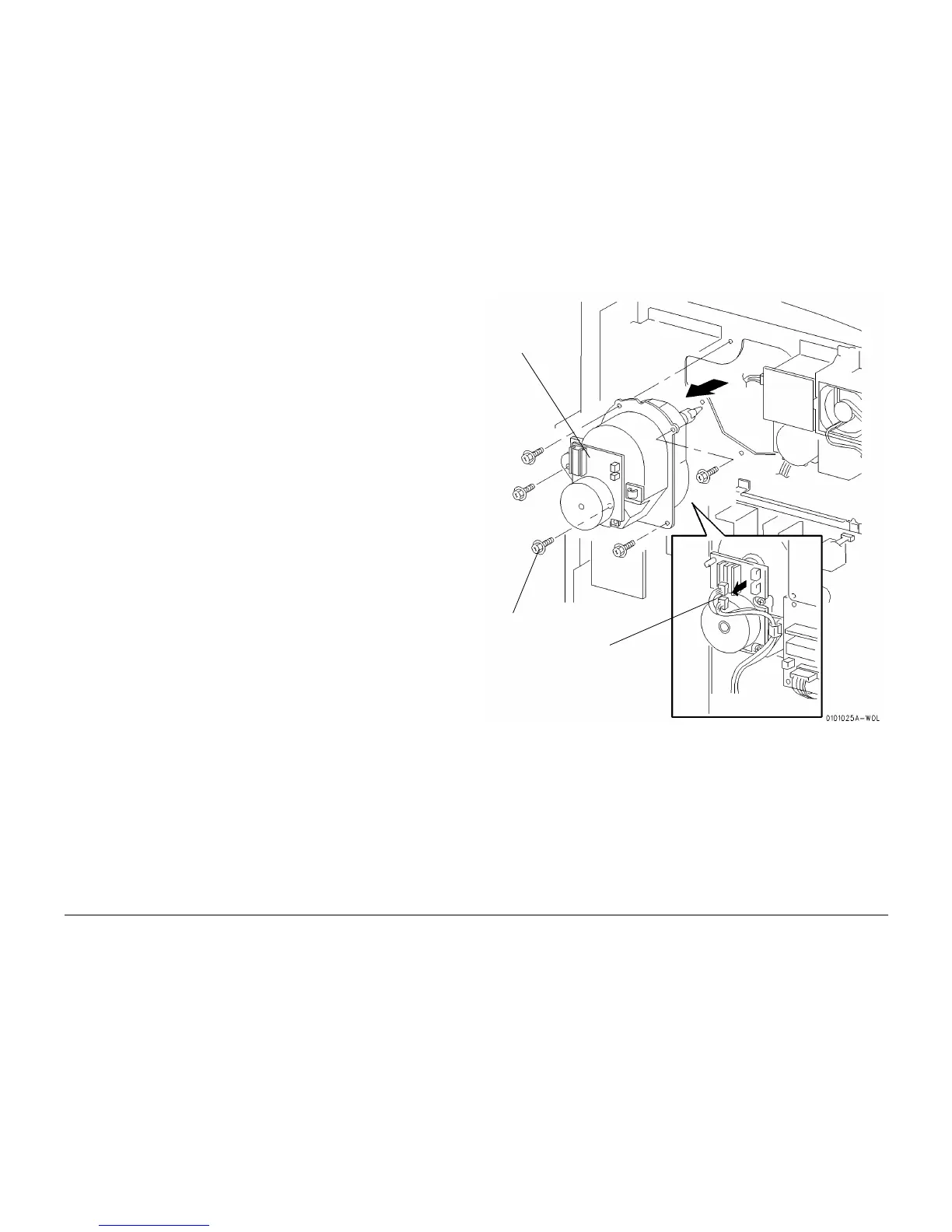

Figure 1 Removing the Process Drive Unit
1
Disconnect the
connectors
2
Remove the
screws
3
Remove the Pro-
cess Drive Unit
To Next Page
