Phaser 790/DocuColor 2006
REP 9.5
Repairs and Adjustments
Initial Issue
REP 9.5 Locating Rail
Parts List on PL 5.1
Removal
WARNING
To avoid personal injury or shock, do not perform repair activities with the power switch
on or electrical power applied to the machine.
1. Switch off the machine power and disconnect the machine Power Cord.
2. Remove the Top Cover Assembly (REP 14.4).
3. Remove the Copy/Print Cartridge (REP 9.1).
4. Remove the ROS (REP 9.3).
5. Prepare to remove the Locating Rail (Figure 1).

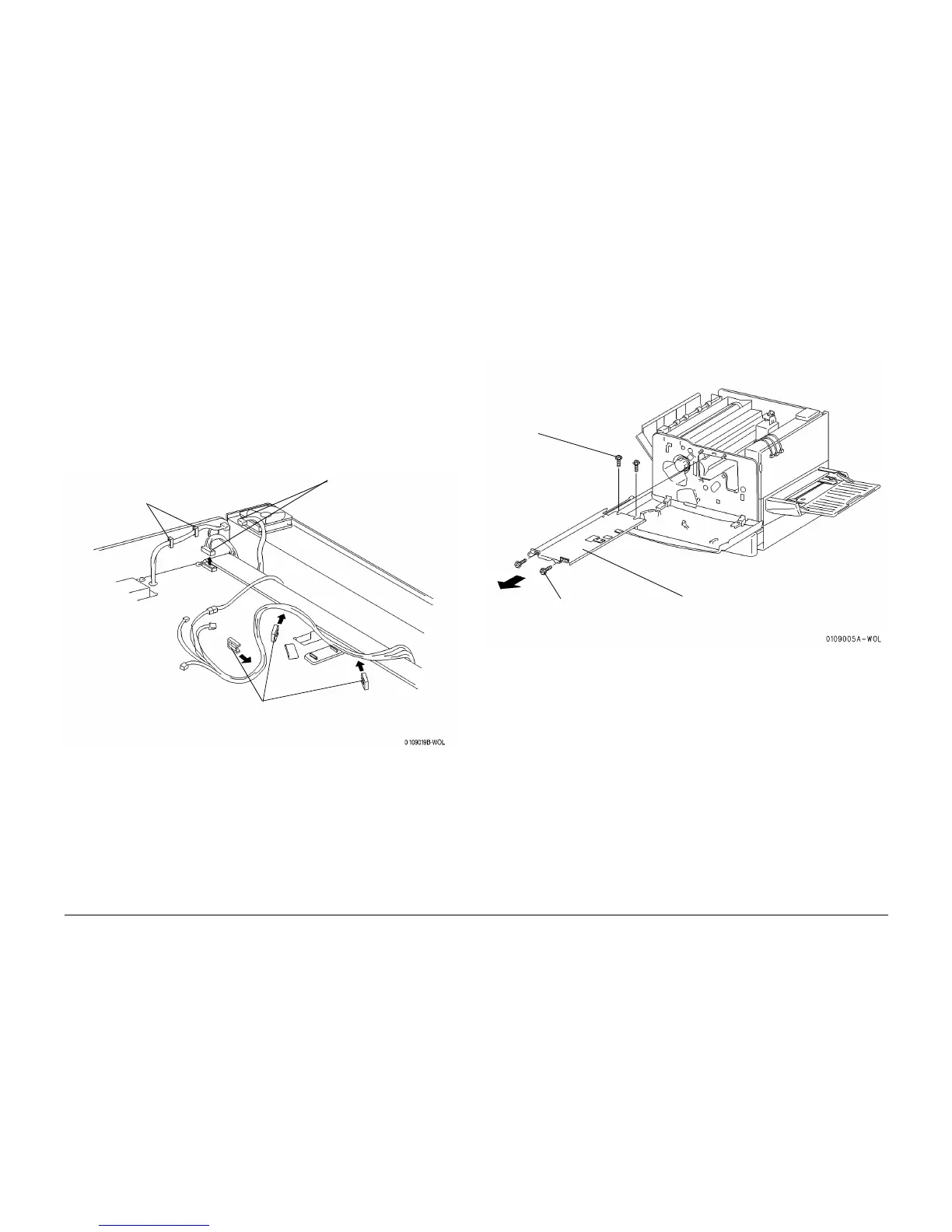

Figure 1 Preparing to Remove the Locating Rail
CAUTION
Be careful not to touch IBT Belt, or damage the harnesses or Magnetic Roll surface of the
Developer Housing while removing the Locating Rail.
6. Remove the Locating Rail (Figure 2).
Replacement
CAUTION
Be careful not to touch IBT Belt, or damage the harnesses or Magnetic Roll surface of the
Developer Housing while reinstalling the Locating Rail.
1. Reinstall the Locating Rail in the reverse order of removal.
Figure 2 Removing the Locating Rail
1
Disconnect the connectors
2
Disengage the harness
from the clamps
3
Disengage the harness
from the clamps
3
Remove the Locating Rail
through the front
2
Remove the front
screws
1
Loosen the rear
screws
