Phaser 790/DocuColor 2006
PL 17.7
Parts List
Initial Issue

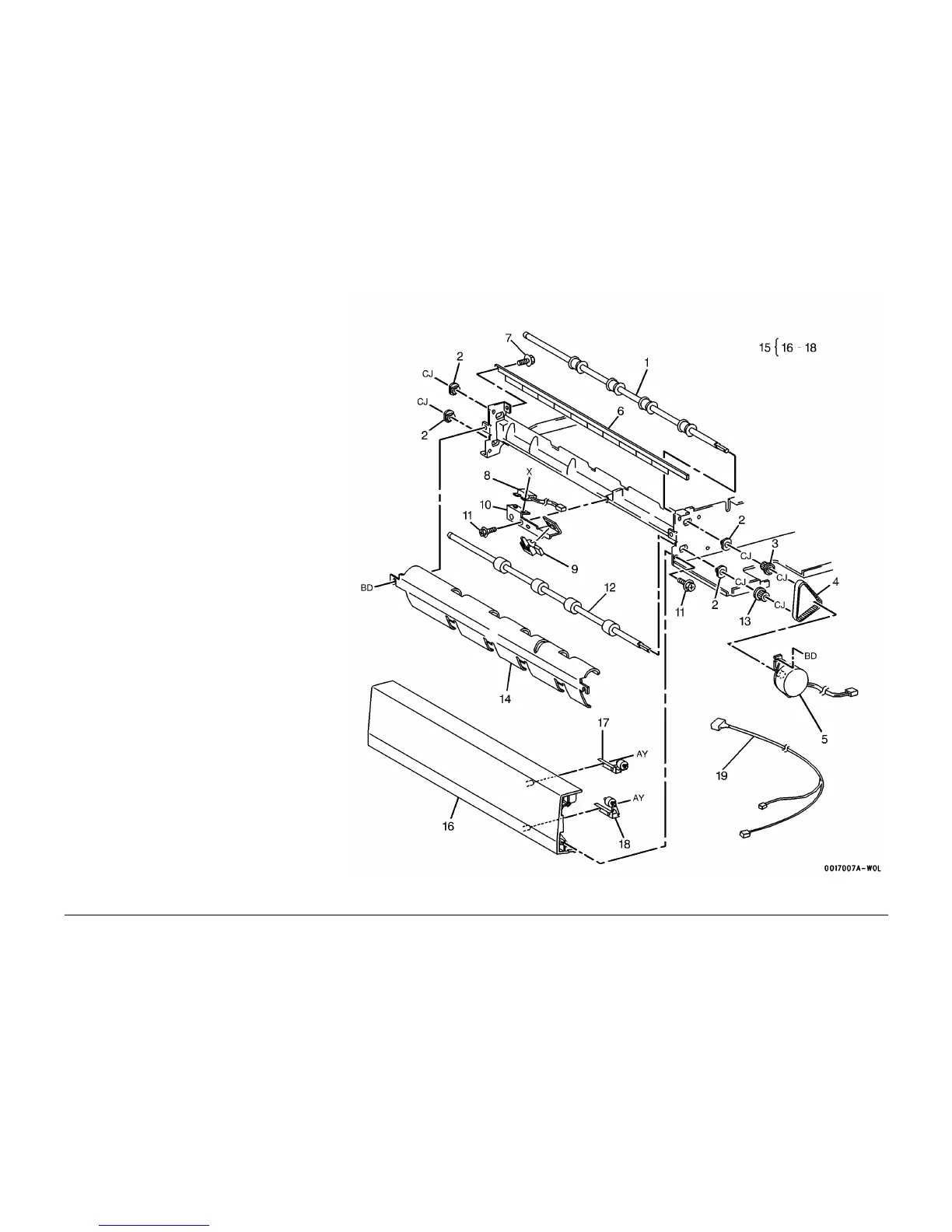

PL 17.7 Exit Roll, Exit Motor, Exit
Sensor
Item Part Description
1 059K91200 Upper Exit Roll
2 013E92760 Bearing
3 020E93230 Pulley
4 023E15810 Belt
5 127K25420 ADF Exit Motor (REP 5.9)
6 105E94661 Antistatic Brush
7 026E17760 Screw
8 110K94420 Exit Tray Interlock (REP 5.10)
9 130K83020 ADF Exit Sensor (REP 5.10)
10 – Bracket (Not Spared)
11 026E82620 Screw
12 059K13330 Lower Exit Roll
13 – Pulley (Not Spared)
14 – Exit Chute (Not Spared)
15 054K87731 Exit Chute Cover Assembly
16 – Exit Chute Cover (P/O PL 17.7 Item
15)
17 022K30330 Pinch Roll
18 022K30360 Pinch Roll
19 – Harness (Not Spared)
