10/00
5-7
Phaser 790/DocuColor 2006
PL 1.1
Parts List
Initial Issue

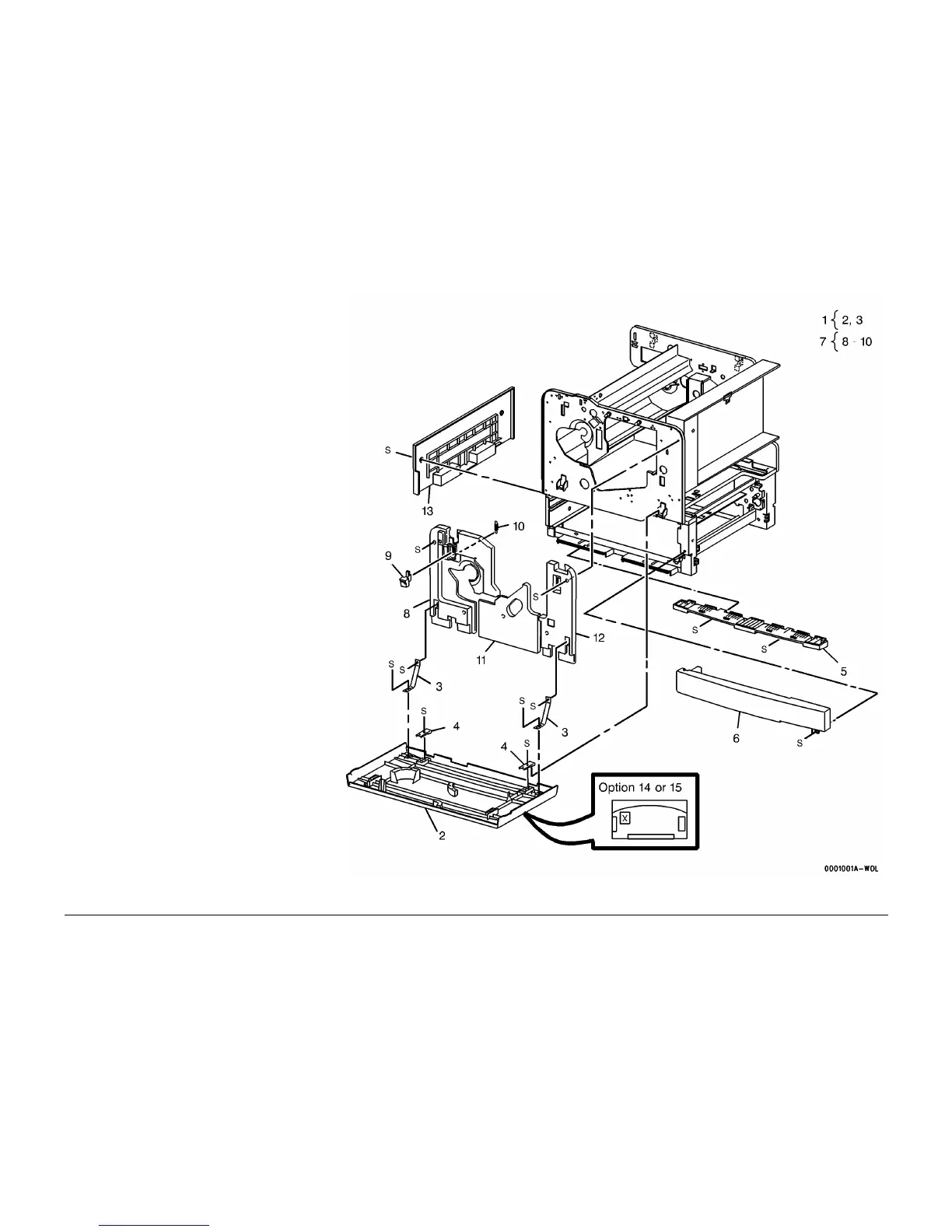

PL 1.1 Front and Left Covers
Item Part Description
1 802K18401 Front Cover Assembly (REP 14.1)
2 – Front Cover (P/O PL 1.1 Item 1)
3 – Cover Support (P/O PL 1.1 Item 1)
4 – Hinge Plate (Not Spared)
5 048E52291 Front Lower Cover (REP 14.3)
6 802K11970 Front Middle Cover (REP 14.2)
7 802K17141 Left Inner Cover Assembly (REP
14.5)
8 – Left Inner Cover (P/O PL 1.1 Item
7)
9 – Rotary Latch Lever (P/O PL 1.1
Item 7)
10 – Rotary Latch Spring (P/O PL 1.1
Item 7)
11 802K12480 IBT Inner Cover (REP 14.5)
12 802K17151 Right Inner Cover (REP 14.5)
13 802E05350 Left Lower Cover (REP 14.8)
14 600K85500 LP Name Plate
15 600K85510 CP Name Plate
