Xerox Phaser 790 User Manual

10/00
4-41
Phaser 790/DocuColor 2006
REP 6.8, REP 6.9
Repairs and Adjustments
Initial Issue
REP 6.8 IIT Low Voltage Power Supply (LVPS)
Parts List on PL 16.1
Removal
WARNING
To avoid personal injury or shock, do not perform repair activities with the power switch
on or electrical power applied to the machine.
1. Switch off the machine power and disconnect the machine Power Cord.
2. Remove the Rear Cover (REP 6.4)
3. Remove the IIT LVPS (Figure 1).

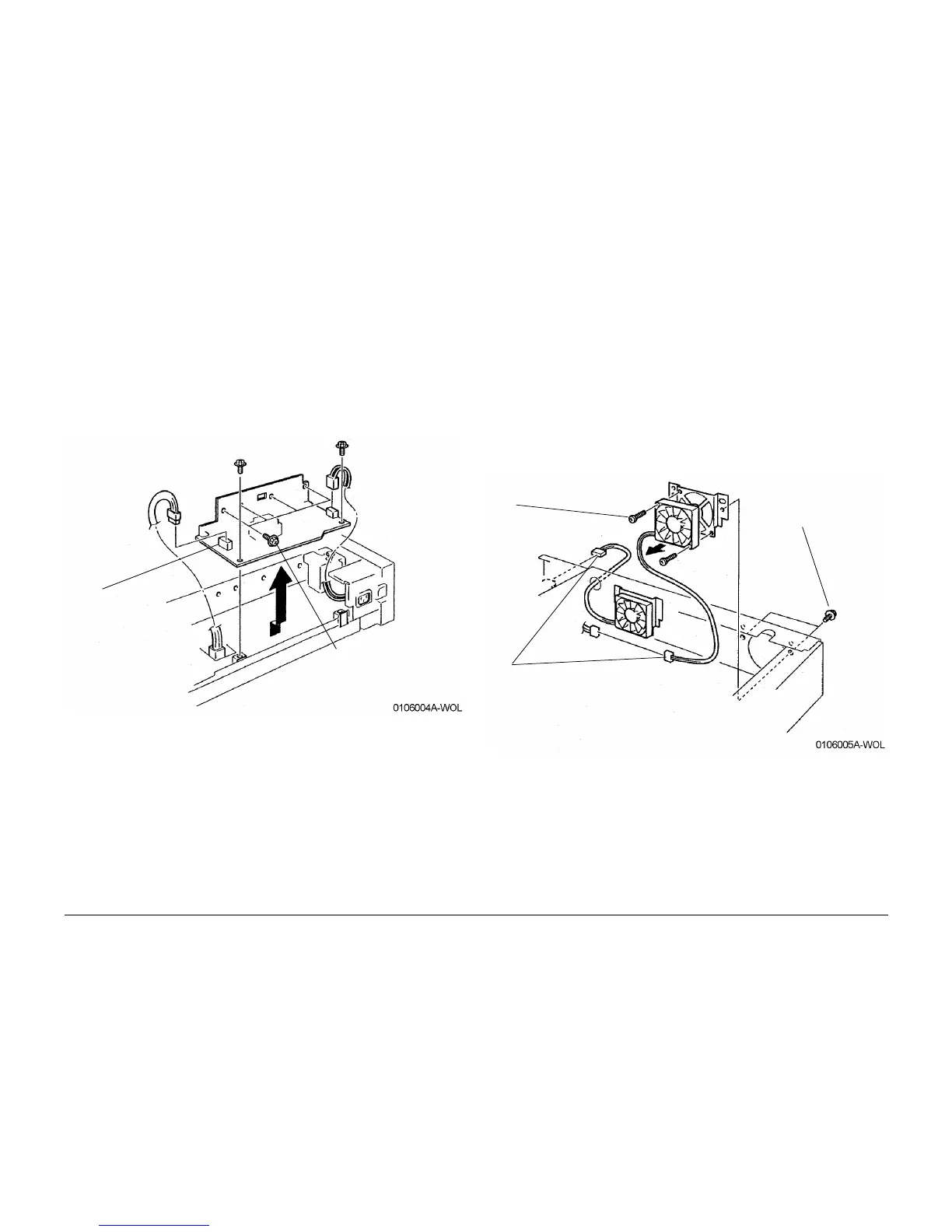

Figure 1 Removing the IIT LVPS
Replacement
1. Perform the procedure for removal in reverse.
REP 6.9 Fan
Parts List on PL 16.1
Removal
WARNING
To avoid personal injury or shock, do not perform repair activities with the power switch
on or electrical power applied to the machine.
1. Switch off the machine power and disconnect the machine Power Cord.
2. Remove the Platen Glass (REP 6.1).
3. Remove the Right Cover (REP 6.2).
NOTE: The removal procedure is identical for both fans.
4. Remove the Fan (Figure 1).
Figure 1 Removing the Fan
Replacement
1. Perform the procedure for removal in reverse.
1
Disconnect the
connectors (2)
2
Remove the
screws (6) and
the IIT LVPS
1
Disconnect the applicable
fan
connector and release
the wires from the clips
2
Remove the screws (2)
and the Fan/bracket
from the applicable fan
3
Remove the
screws (2) and the
Fan
