10/00
4-101
Phaser 790/DocuColor 2006
REP 9.12
Repairs and Adjustments
Initial Issue
WARNING
The Rotary Frame is very heavy. Be careful not to drop or touch other components while
removing the Rotary Frame.
CAUTION
Keep the front shaft of the Rotary Frame from falling from the machine while performing the fol-
lowing step by keeping the front of the Rotary Frame supported.
22. Remove the Rotary Frame (Figure 2).
Replacement
1. Reinstall the Rotary Frame in the reverse order of removal.

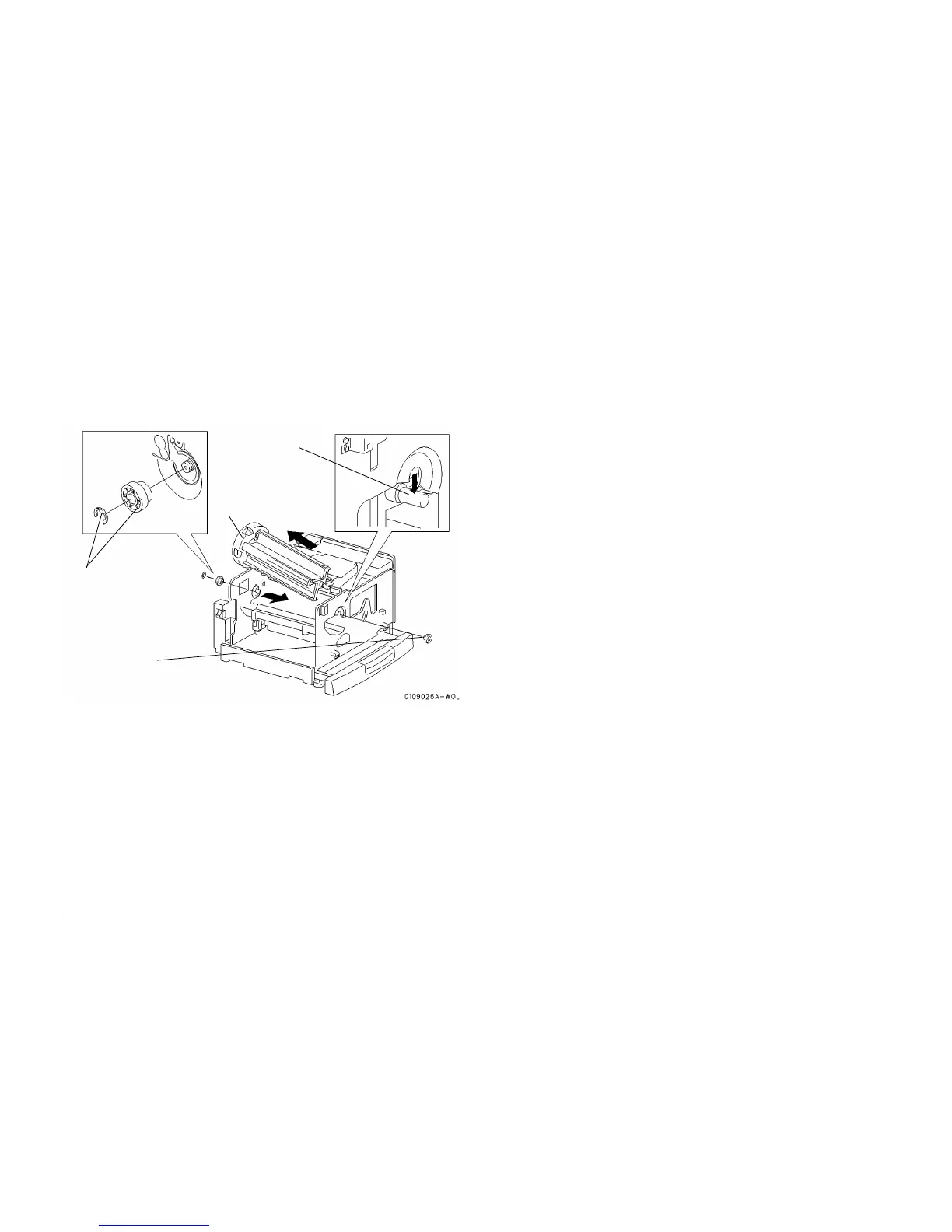

Figure 2 Removing the Rotary Frame
1
Remove the e-ring
and the rear bear-
ing
2
Remove the front
bearing
3
Disengage the front
shaft
4
Move the frame forward,
and lift to remove the
Rotary Frame
