10/00
4-152
Phaser 790/DocuColor 2006
ADJ 5.4
Initial Issue
Repairs and Adjustments
3. Remove the Entrance Tray Assembly. (Figure 2)

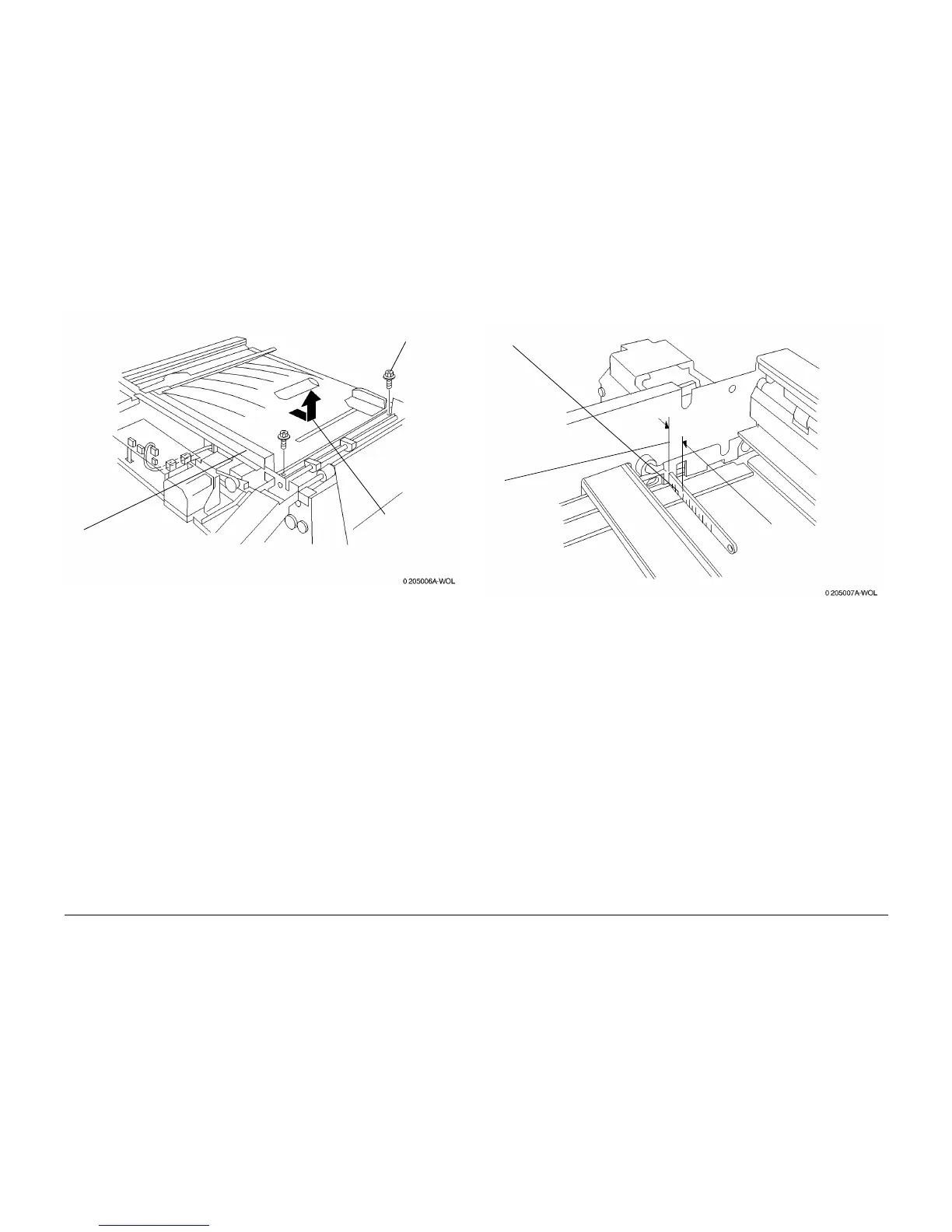

Figure 2 Removing the Entrance Tray
4. Remove the Transport Assembly. (REP 5.7)
5. Measure the distance from the ADF Rear Frame to the front end of the Paper Side Guide.
(Figure 3)
Figure 3 Taking Measurements
6. If the measurement is not within specifications perform the adjustment.
1
Remove the
screws (2)
2
Lift the tray and disconnect the
connector from the Document
Set Indicator
3
Remove the tray
1
Take a measurement at
the point close to the Tie
Plate, left to right. The
distance should be 19mm
NOTE: Make sure the ruler is positioned
at a right angle to the frame
