3.9 Braking Resistor Installation
114 YASKAWA SIEPC71061705H GA700 Series Technical Manual
A - Cutaway section
*1
B - Use a diagonal-cutting pliers to clip this area.

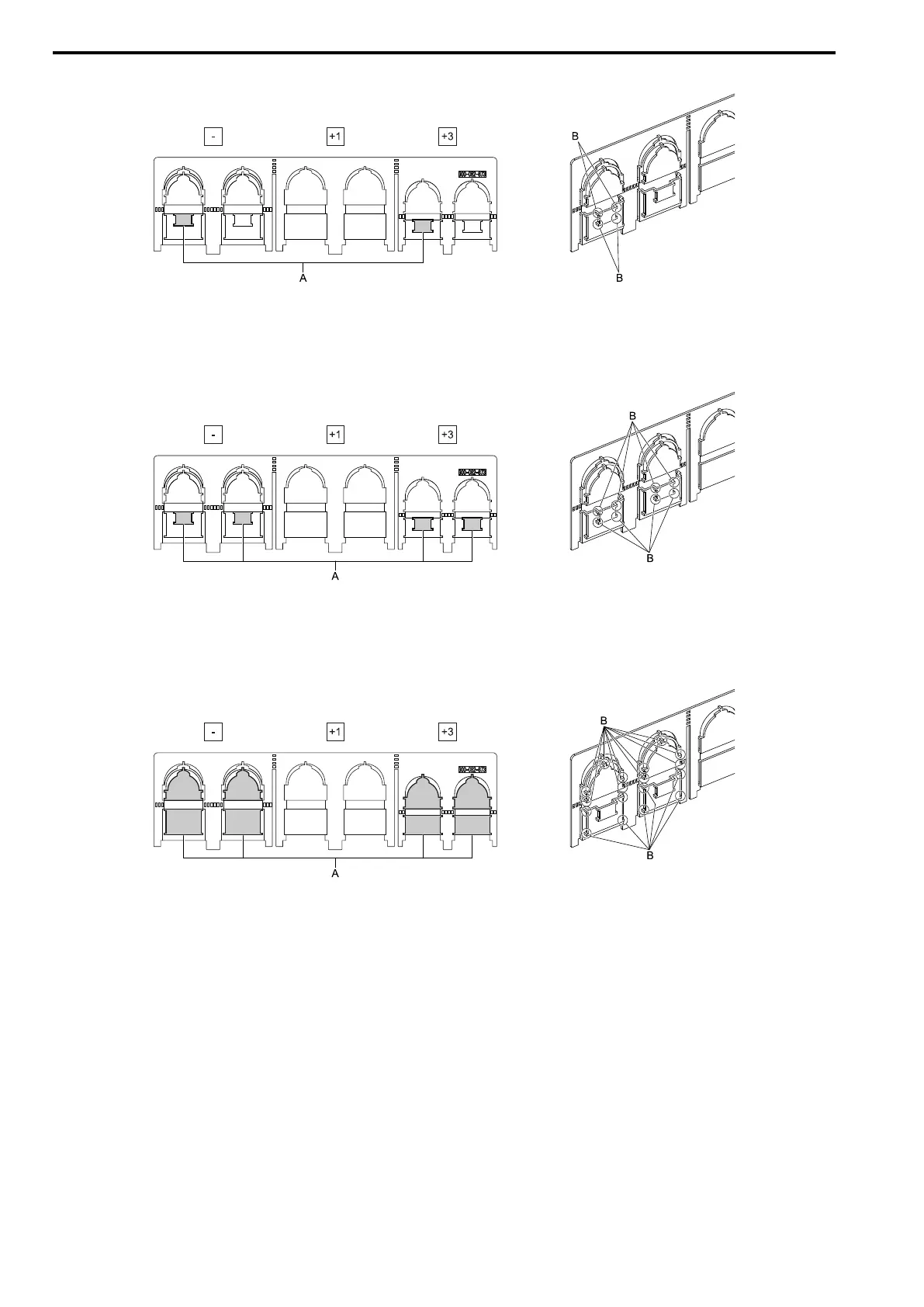

Figure 3.62 Cutaway Sections
*1 Cut away either of the two portions: terminal - or terminal +3. You may cut away either portion.
A - Cutaway sections B - Use a diagonal-cutting pliers to clip this area.
Figure 3.63 Cutaway Sections
A - Cutaway sections B - Use a diagonal-cutting pliers to clip this area.
Figure 3.64 Cutaway Sections
■ Installing a Braking Unit Connection (CDBR-Type)
Remove the terminal cover before you connect the braking unit (CDBR-type) to the drive.
