5.2 European Standards
236 YASKAWA SIEPC71061705H GA700 Series Technical Manual

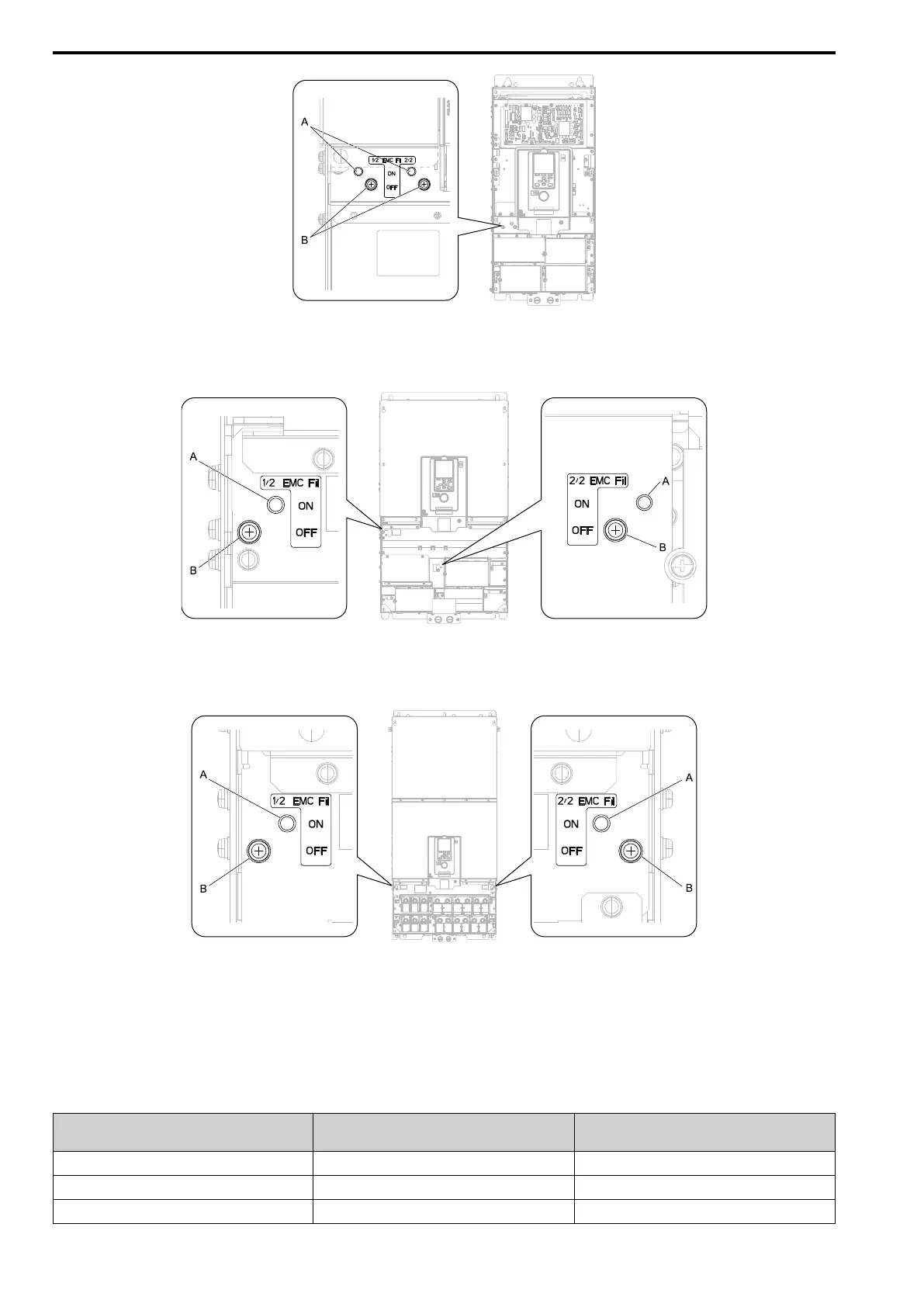

A - SW (ON) B - Screw (OFF)
Figure 5.12 EMC Filter Switch Location 5
A - SW (ON) B - Screw (OFF)
Figure 5.13 EMC Filter Switch Location 6
A - SW (ON) B - Screw (OFF)
Figure 5.14 EMC Filter Switch Location 7
If you lose an EMC filter switch screw, use Table 5.10 to find the correct replacement screw and install the new
screws with the correct tightening torque.
NOTICE: Only use the screws specified in this manual. If you use screws that are not approved, it can cause damage to the
drive.
Table 5.10 Screw Sizes and Tightening Torques
Model Screw Size
Tightening Torque
N∙m
2004 - 2082, 4002 - 4060 M4 × 20
1.0 - 1.3
2110 - 2211, 4075 - 4168 M4 × 25
1.0 - 1.3
2257 - 2415, 4208 - 4675 M5 × 25 2.0 - 2.5
