8.4 Replace Cooling Fans and Circulation Fans
398 YASKAWA SIEPC71061705H GA700 Series Technical Manual

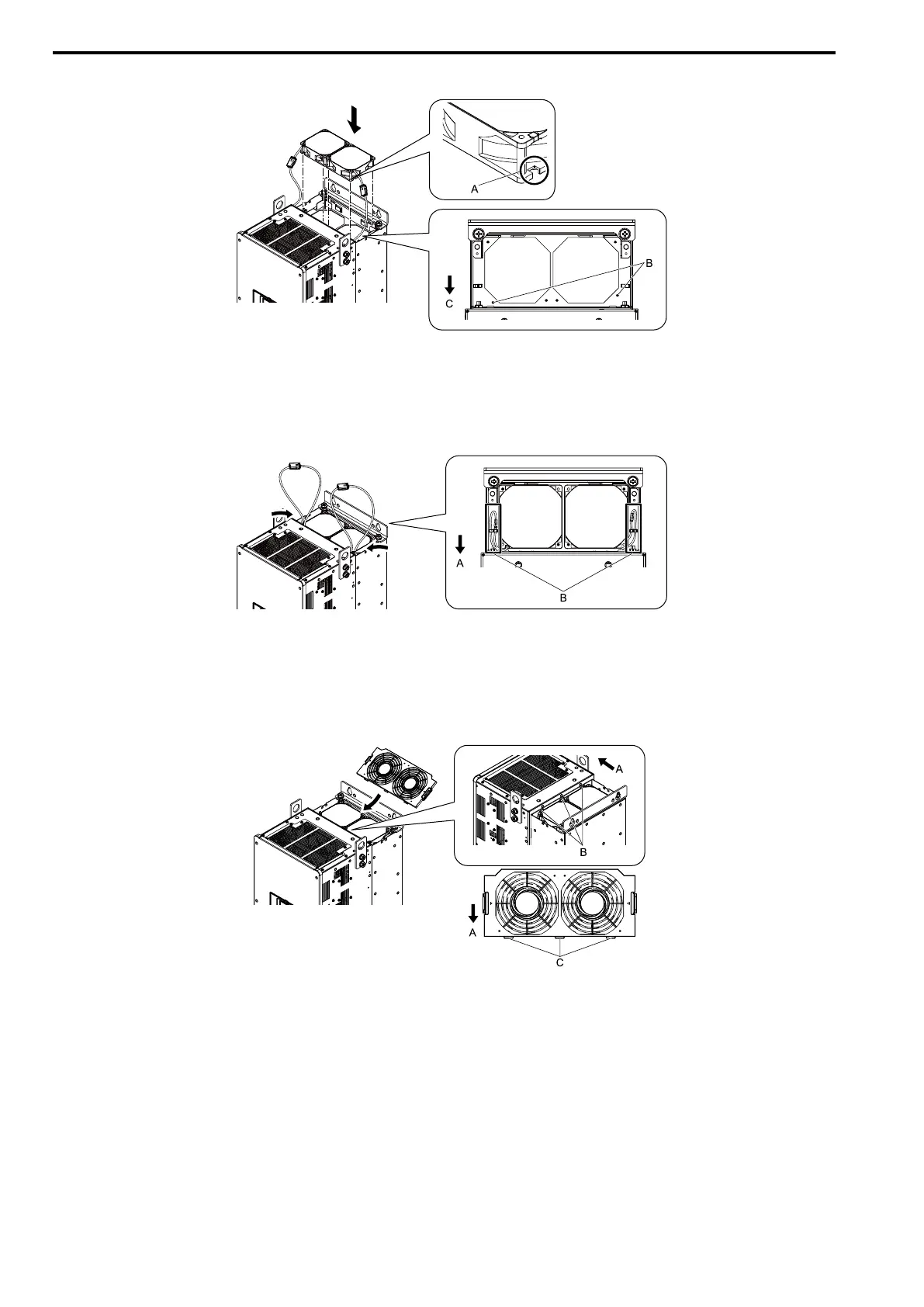

2. Align the notches on the fans with the pins on the drive and install the cooling fans in the drive.
A - Notch on fan
B - Alignment pins on drive
C - Front of drive
Figure 8.29 Install the Cooling Fans
3. Put the cables and connectors in the recess of the drive.
A - Front of drive B - Space for cables
*1
Figure 8.30 Put the Cables and Connectors in the Drive Recess
*1 Make sure that the cables and connectors are in the correct space.
4. Hold the fan finger guard at an angle and put the connector tabs on the fan finger guard into the holes on
the drive.
A - Front of drive
B - Drive holes
C - Connector tabs
Figure 8.31 Reattach the Fan Finger Guard
