12.8 H: Terminal Functions
866 YASKAWA SIEPC71061705H GA700 Series Technical Manual
■ H6-06: Terminal MP Monitor Selection
No.
(Hex.)
Name Description
Default
(Range)
H6-06
(0431)
RUN
Terminal MP Monitor
Selection
Sets a function for pulse train monitor output terminal MP. Sets the “x-xx” part of the Ux-xx
monitor.
102
(000, 031, 101, 102, 105,
116, 501, 502, 801 - 809,
821 - 825, 831 - 839, 851 -
855)
Note:
To use in through mode or when terminal MP is not used, set this parameter to 000 or 031.
When you use the pulse train monitor, make sure that you connect peripheral devices as specified by these load
conditions:
Incorrect connections can make the characteristics not sufficient or cause mechanical damage.
• Use the pulse train monitor as the sourcing output.
Output Voltage
VRL(V)
Load Impedance (kΩ)
5 V or more 1.5 kΩ or more
8 V or more 4.0 kΩ or more
10 V or more 10 kΩ or more

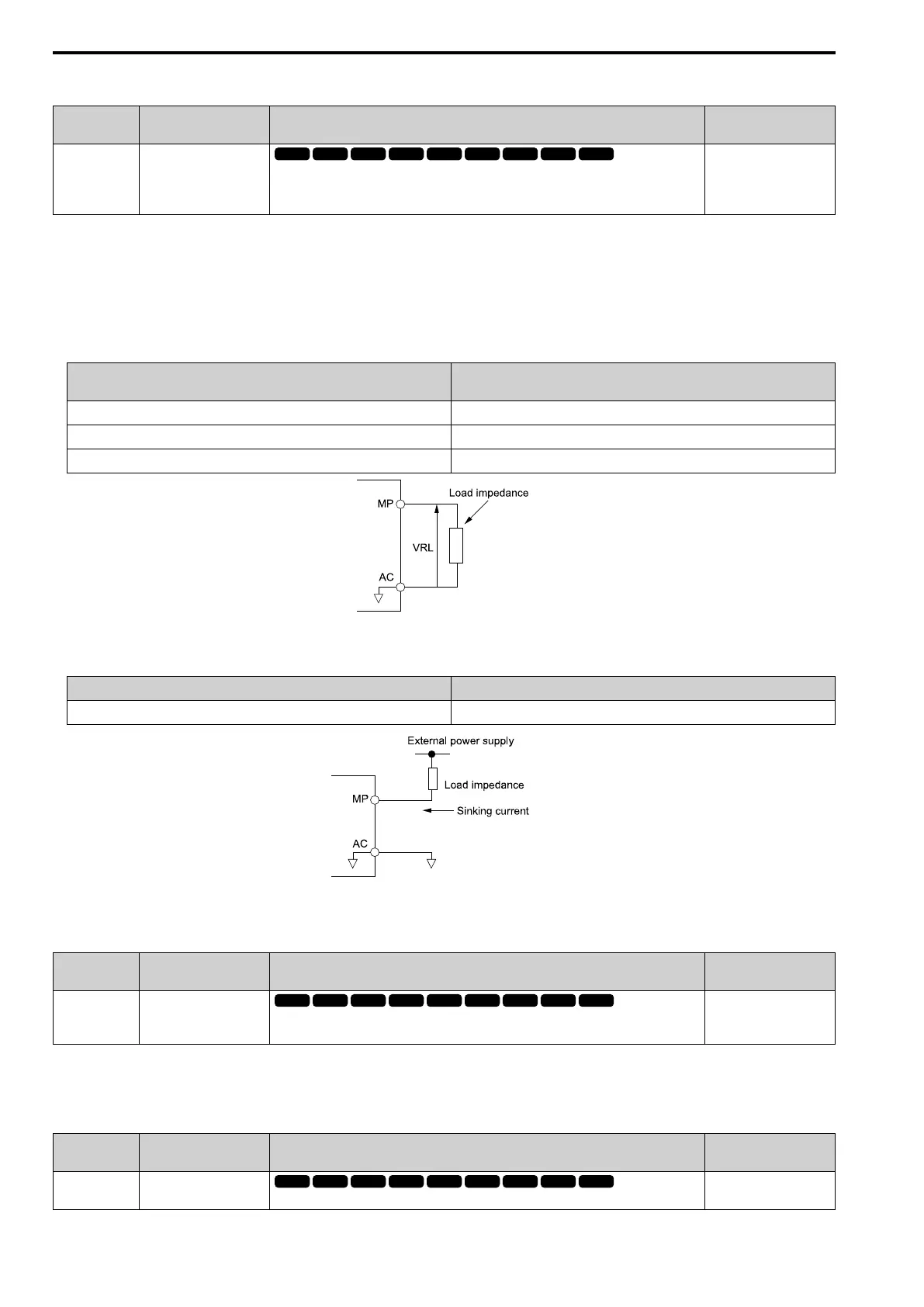

Figure 12.118 Circuit Diagram When Used as the Sourcing Output
• Use the pulse train monitor as the sinking input
External Power Supply (V) 12 VDC ± 10%, 15 VDC ± 10%
Sinking current (mA) 16 mA or less
Figure 12.119 Circuit Diagram When Used as the Sinking Input
■ H6-07: Terminal MP Frequency Scaling
No.
(Hex.)
Name Description
Default
(Range)
H6-07
(0432)
RUN
Terminal MP Frequency
Scaling
Sets the frequency of the pulse train output signal used when the monitor set with H6-06
[Terminal MP Monitor Selection] is 100%.
1440 Hz
(0 - 32000 Hz)
When H6-06 = 102 [Terminal MP Monitor Selection = Output Frequency] and H6-07 = 0, the pulse train output
terminal MP outputs the same frequency as the drive output frequency.
■ H6-08: Terminal RP Minimum Frequency
No.
(Hex.)
Name Description
Default
(Range)
H6-08
(043F)
Terminal RP Minimum
Frequency
Sets the minimum frequency of the pulse train signal that terminal RP can detect.
0.5 Hz
(0.1 - 1000.0 Hz)
