Chapter 5: Clock Networks and PLLs in Cyclone IV Devices 5–35
PLL Reconfiguration
October 2012 Altera Corporation Cyclone IV Device Handbook,
Volume 1
Figure 5–22 shows how to adjust PLL counter settings dynamically by shifting their
new settings into a serial shift register chain or scan chain. Serial data shifts to the scan
chain via the
scandataport , and shift registers are clocked by scanclk . The maximum
scanclk frequency is 100 MHz. After shifting the last bit of data, asserting the
configupdate signal for at least one scanclk clock cycle synchronously updates the
PLL configuration bits with the data in the scan registers.
1 The counter settings are updated synchronously to the clock frequency of the
individual counters. Therefore, not all counters update simultaneously.
To reconfigure the PLL counters, perform the following steps:
1. The
scanclkena signal is asserted at least one scanclk cycle prior to shifting in the
first bit of
scandata ( D0 ).
2. Serial data (
scandata ) is shifted into the scan chain on the second rising edge of
scanclk .
3. After all 144 bits have been scanned into the scan chain, the
scanclkena signal is
de-asserted to prevent inadvertent shifting of bits in the scan chain.
4. The
configupdate signal is asserted for one scanclk cycle to update the PLL
counters with the contents of the scan chain.
5. The
scandone signal goes high indicating that the PLL is being reconfigured. A
falling edge indicates that the PLL counters have been updated with new settings.
6. Reset the PLL using the
areset signal if you make any changes to the M, N,
post-scale output C counters, or the
I
CP
, R, C settings.
7. You can repeat steps 1 through 5 to reconfigure the PLL any number of times.

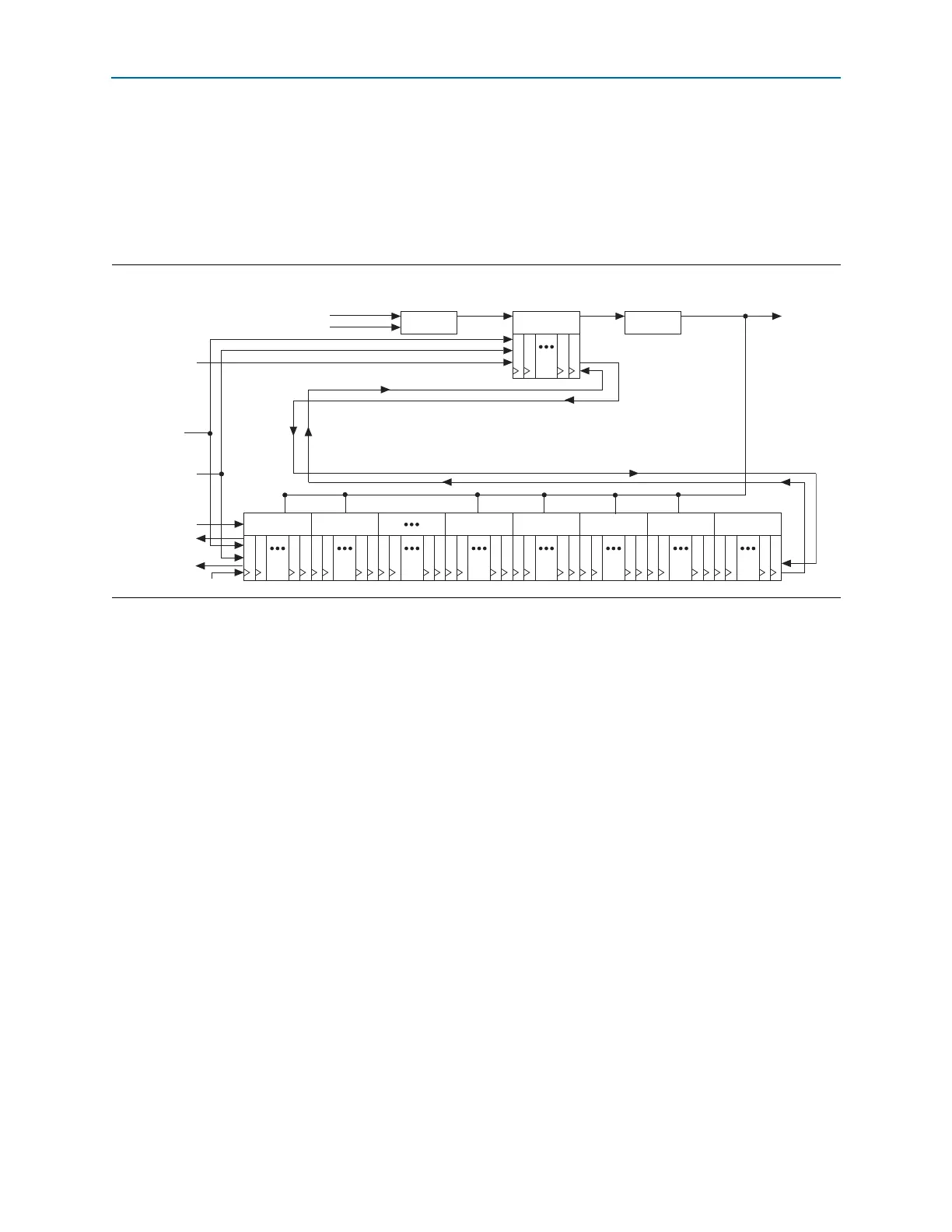

Figure 5–22. PLL Reconfiguration Scan Chain
/C4 /C3 /C2 /C1 /C0 /M /N
scanclk
scandone
scandata
LF/K/CP
configupdate
inclk
PFD VCO
F
VCO
scanclkena
scandataout
from M counter
from N counter
