VNA Mode 6-17 Sweep Menu 3
Reference Plane Extension Manual
This submenu key is used to manually enter a distance or time to which the
Reference Plane (Plane of Calibration) is extended. This action calculates and
removes an appropriate amount of linear phase rotation (from the
measurement data) based on the time or distance entered by using this
submenu key. The entered distance or time value for each port is displayed in
the Instrument Settings Summary above the graph area. When you enter a
time or distance value, a Units menu is provided (as shown in Figure 6-32).

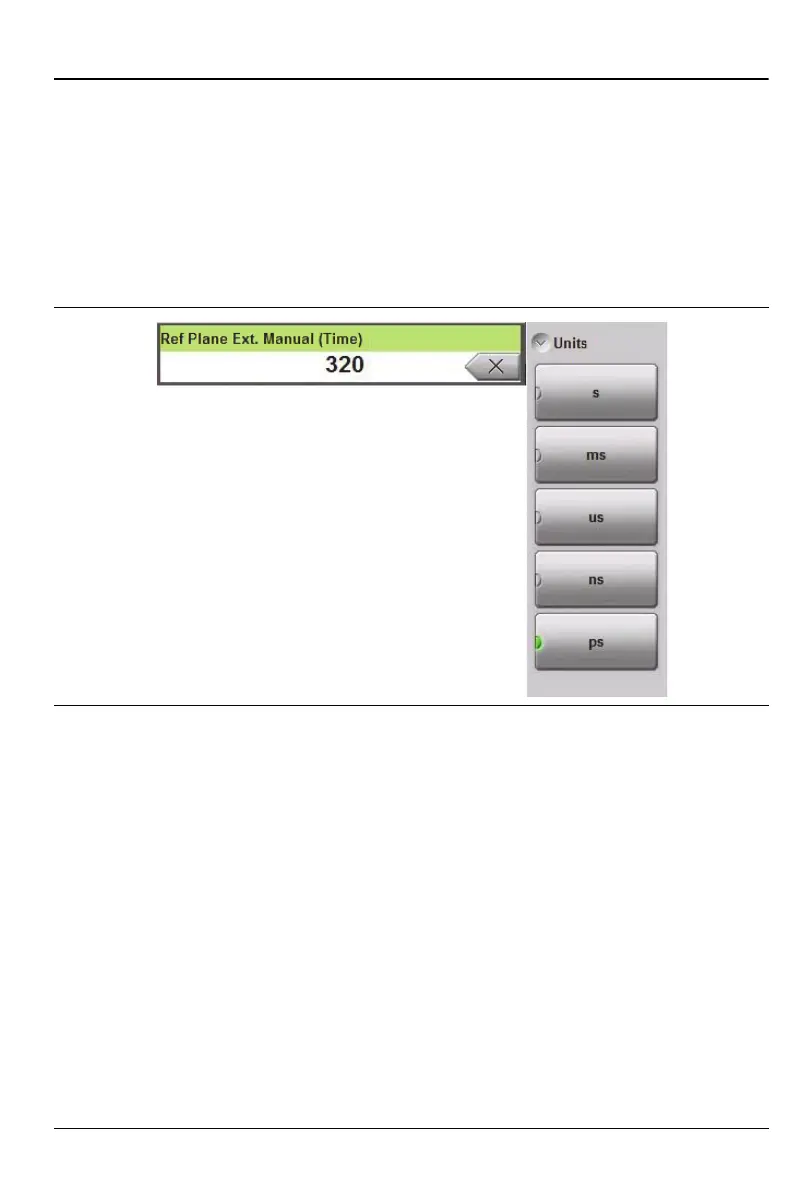

Figure 6-32. Manual Reference Plane Extension Entry with Time Units
