Vector Voltmeter 8-3 Example B/A Measurement
2. Connect one output side of the splitter to Port 2, and connect a 50 ohm
load to the opposite output side. Press Save Reference to use this
measurement as reference when you measure the other output side of
the splitter. See Figure 8-5.

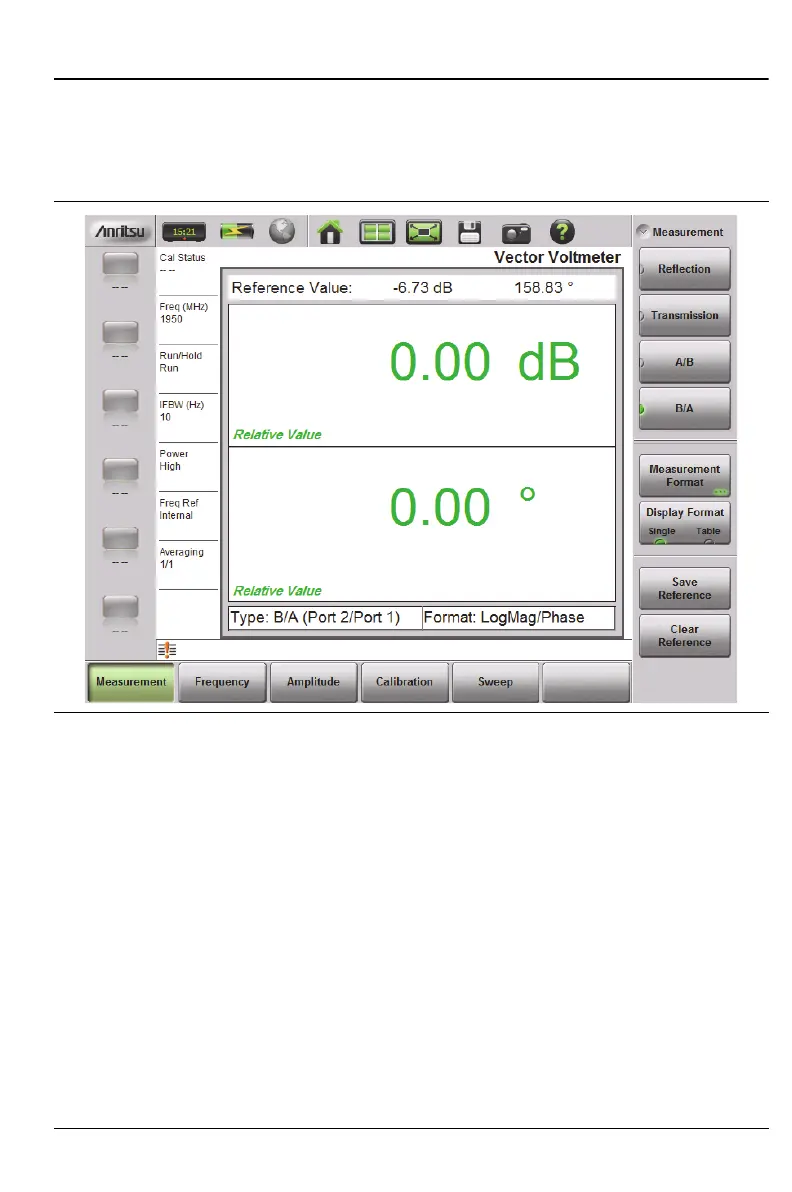

Figure 8-5. First Side of Splitter Measured and Saved as Reference
