S820E UG PN: 10580-00343 Rev. H 10-15
File Management 10-5 Recall Files
Recalled measurements are first displayed on the Site Master as a preview.

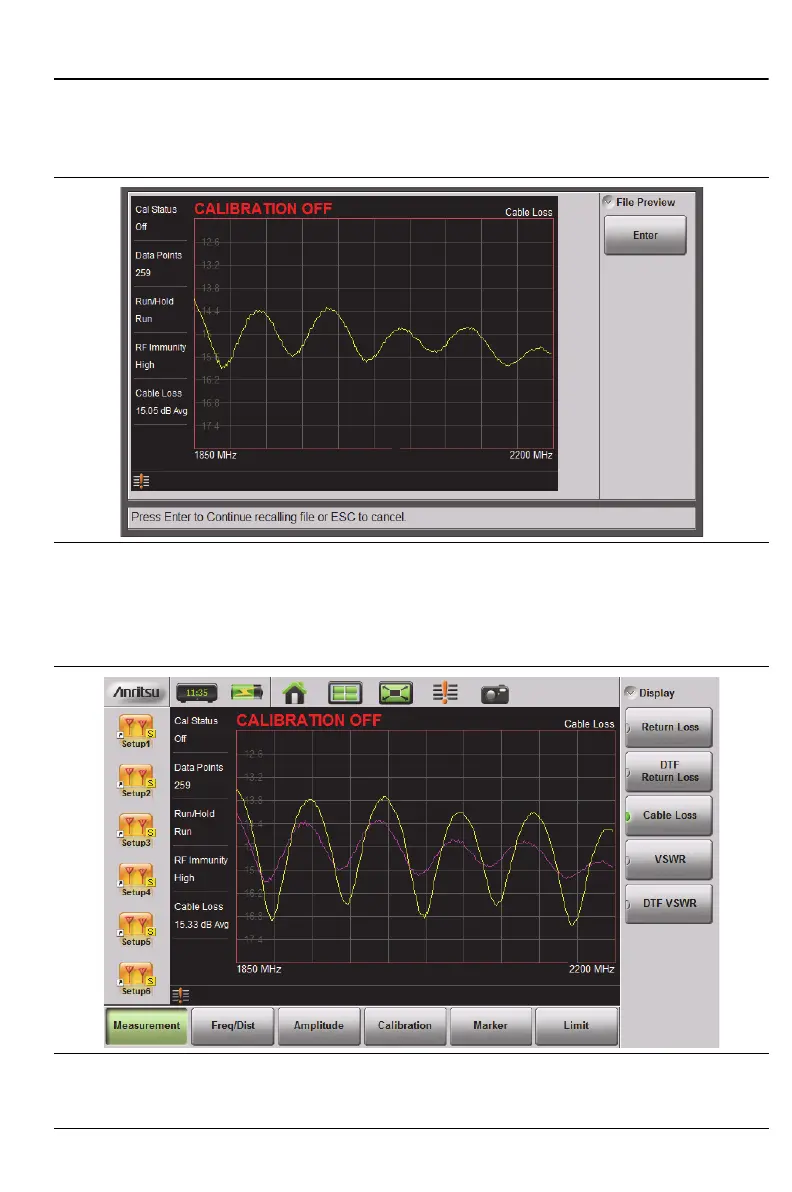

Figure 10-11 shows the preview of a saved cable loss measurement, S820E
CL #1.dat.
Press Enter to complete recalling the measurement (Figure 10-12) or press
Esc to cancel the recall and return to the File Recall menu.
Figure 10-11. Preview of a Recalled Measurement
Figure 10-12.Recalled Measurement and Active Trace
