3-5 Distance-To-Fault (DTF) Cable and Antenna Measurements
Figure 3-12 shows the same system with the antenna reattached. The
reflection of the jumper connector is now reduced to 41.18 dB.

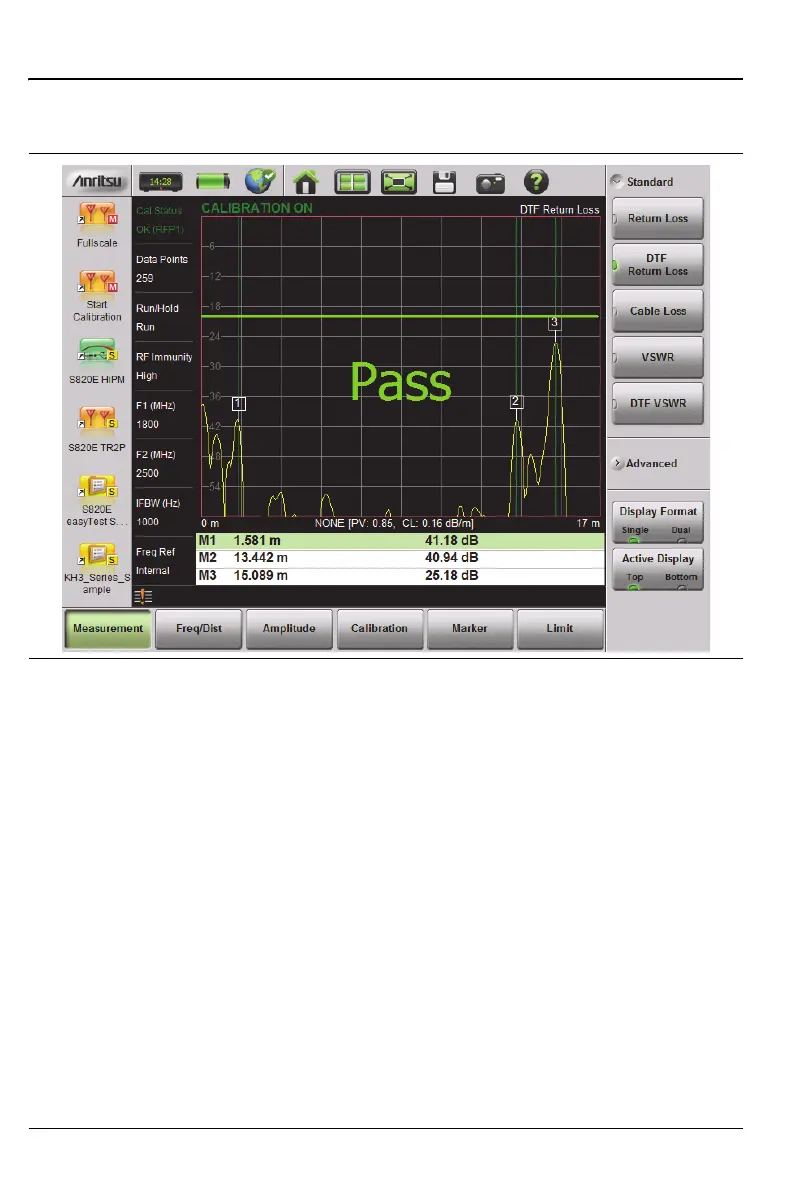

Figure 3-12. DTF Return Loss Measurement (Antenna at 15 m)
