Locations of RFID read/write units
1
2
3
4
7
8
9
5 6

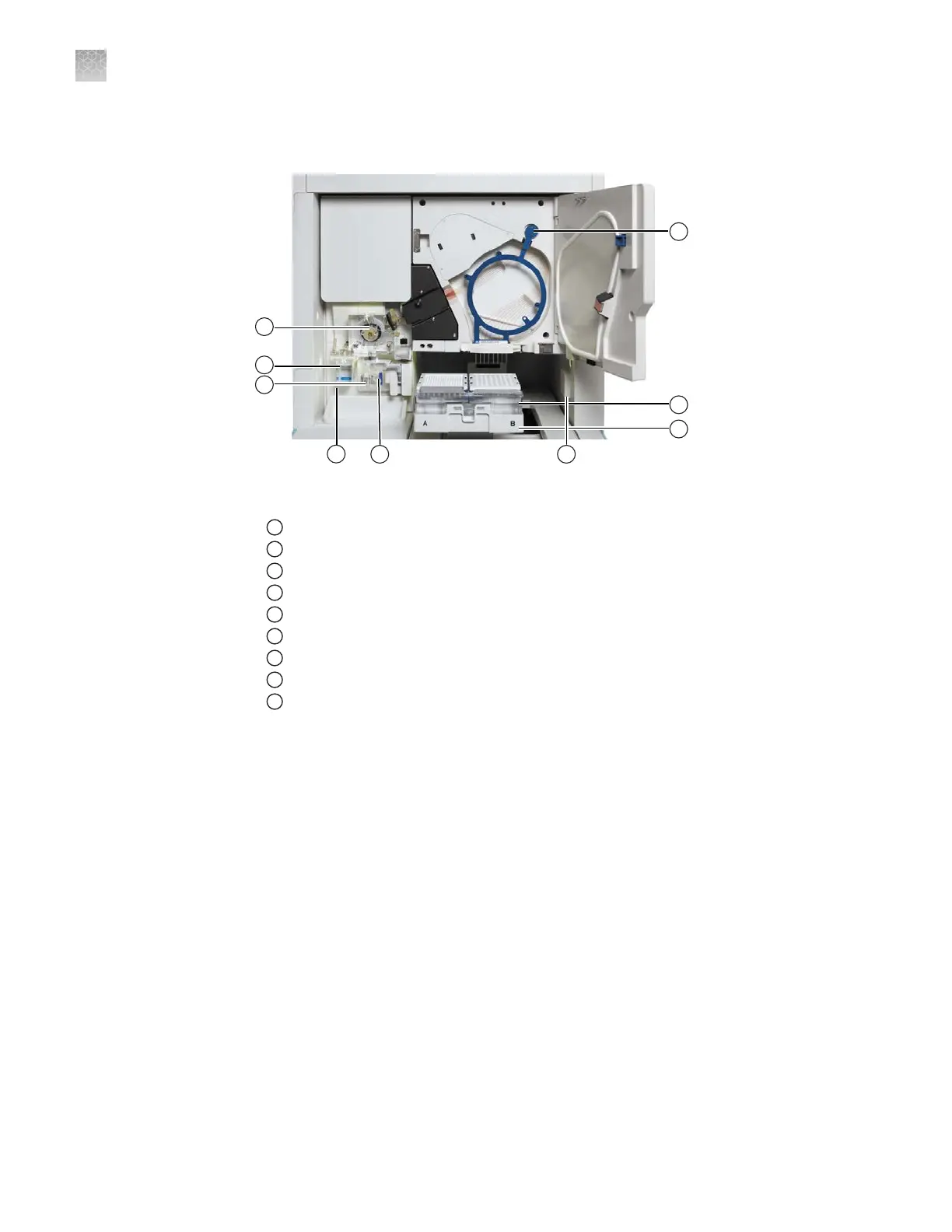

Figure 37 RFID r
ead/write unit locations within instrument interior (shown with door
open)
1
Polymer delivery pump (PDP)
2
Anode buffer container (ABC)
3
Polymer or conditioning pouch
4
ABC RFID read/write unit (behind reservoir)
5
Pouch read/write unit (behind pouch)
6
CBC RFID read/write unit
7
Capillary array read/write unit
8
Cathode buffer container (CBC)
9
Autosampler
Function
The RFID read/write units:
1.
Read up to 256 bytes from the RFID consumables tags.
2. Write up to 256 bytes to the RFID consumables tags.
3. Re-read the wrien data on the tags to conrm that it is accurate, using a
checksum to verify data integrity.
The RFID read/write units perform the functions listed above at the start of each 3500
Series Data Collection Software 3.1 run.
Appendix F Radio F
requency Identification (RFID) technology
Locations of RFID read/write units
F
296
3500/3500xL Genetic Analyzer User Guide—Data Collection Software v3.1
