Applied Biosystems 3500 - Instrument Components

Instrument components
Figure 31, Figure 32, and Figure 33 are provided below for reference in this section.
1
2
3
4
5
7
6
8
9

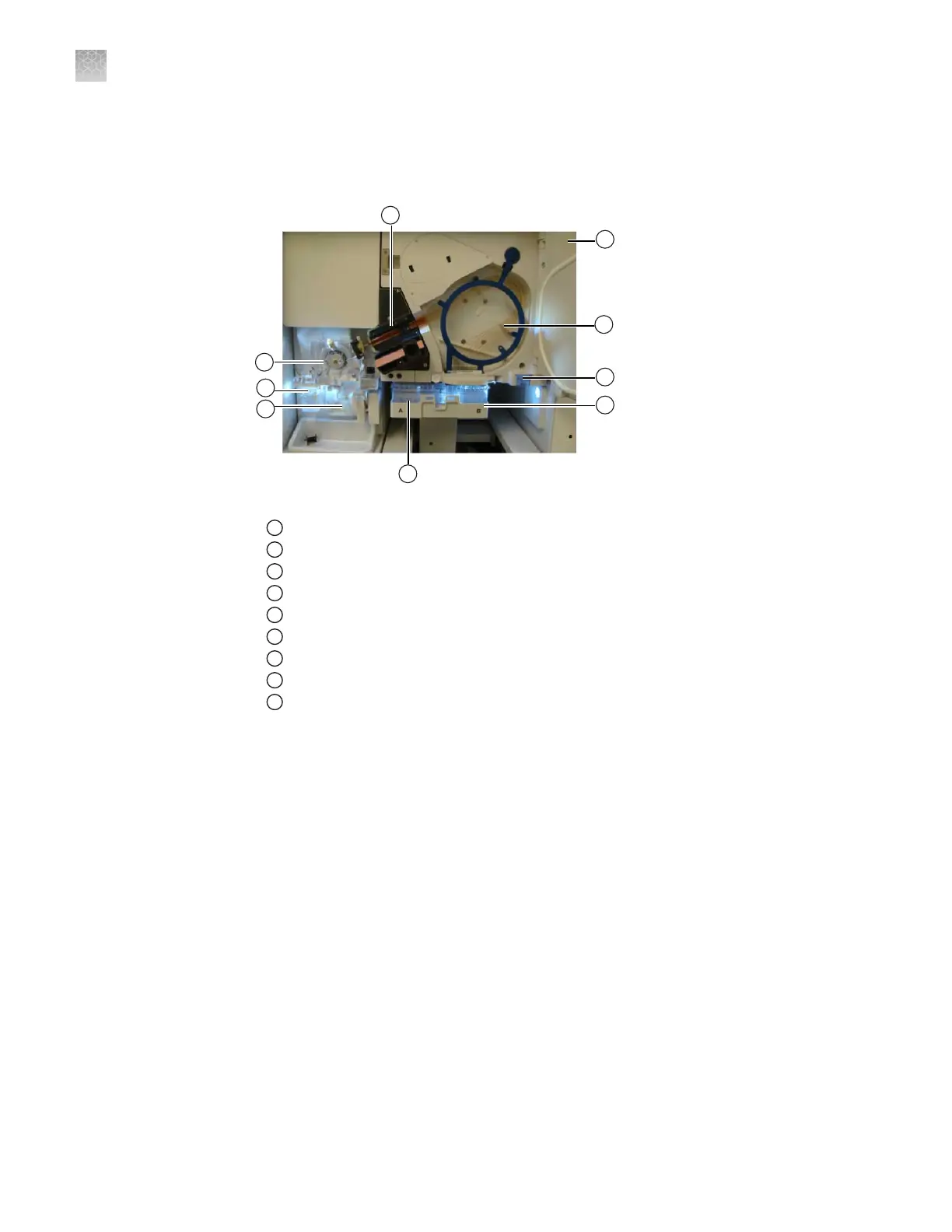

Figure 31 Ins
trument interior
1
Detection cell heater block
2
Polymer delivery pump (PDP)
3
Anode buffer container (ABC)
4
Polymer or conditioning pouch
5
Cathode buffer container (CBC)
6
Oven door
7
Capillary array
8
Oven condensation reservoir
9
Autosampler
