Applied Biosystems 3500 User Manual

Note: For other w
ays to name samples, see “Name samples in the plate view“ on
page 73 and “Use the table view“ on page 75.
1.

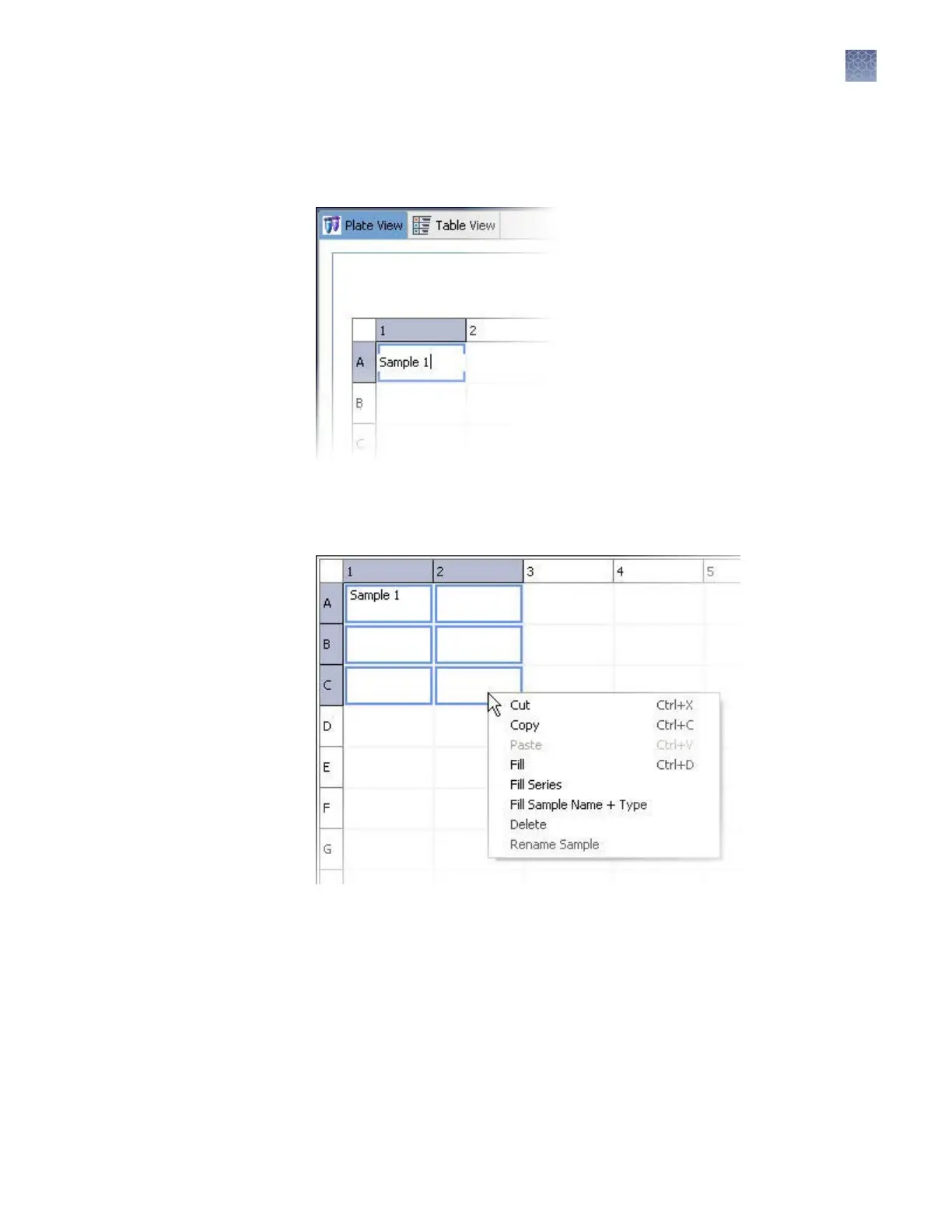

Click a well, type a sample name directly into the well, then press Enter.
2.
Click-drag to select multiple w
ells.
3.
Right-click and select Fill or Fill Series to populate the selected elds.
Note: T
o use Fill Series, type a number as the last character of the named well.
The number will increment for each well in the series.
Note: You can copy and paste sample names instead of using ll commands.
Name samples
and assign sample
types in the plate
view
Chapter 3 Set up and run
Assign plate contents
3
3500/3500xL Genetic Analyzer User Guide—Data Collection Software v3.1
47

Applied Biosystems 3500 Specifications

General

Number of capillaries	8
Capillary Length	50 cm
Laser	Solid-state laser
Instrument Type	Capillary electrophoresis system
Technology	Capillary Electrophoresis (CE)
Weight	95 kg
Power Requirements	100–240 V
