Applied Biosystems 3500 User Manual

Quick Start a run
Load the plate in the instrument before proceeding (see “Load the plate in the
instrument“ on page 56).
You can start a run in the Dashboard by selecting a plate with plate contents already
assigned.
1.

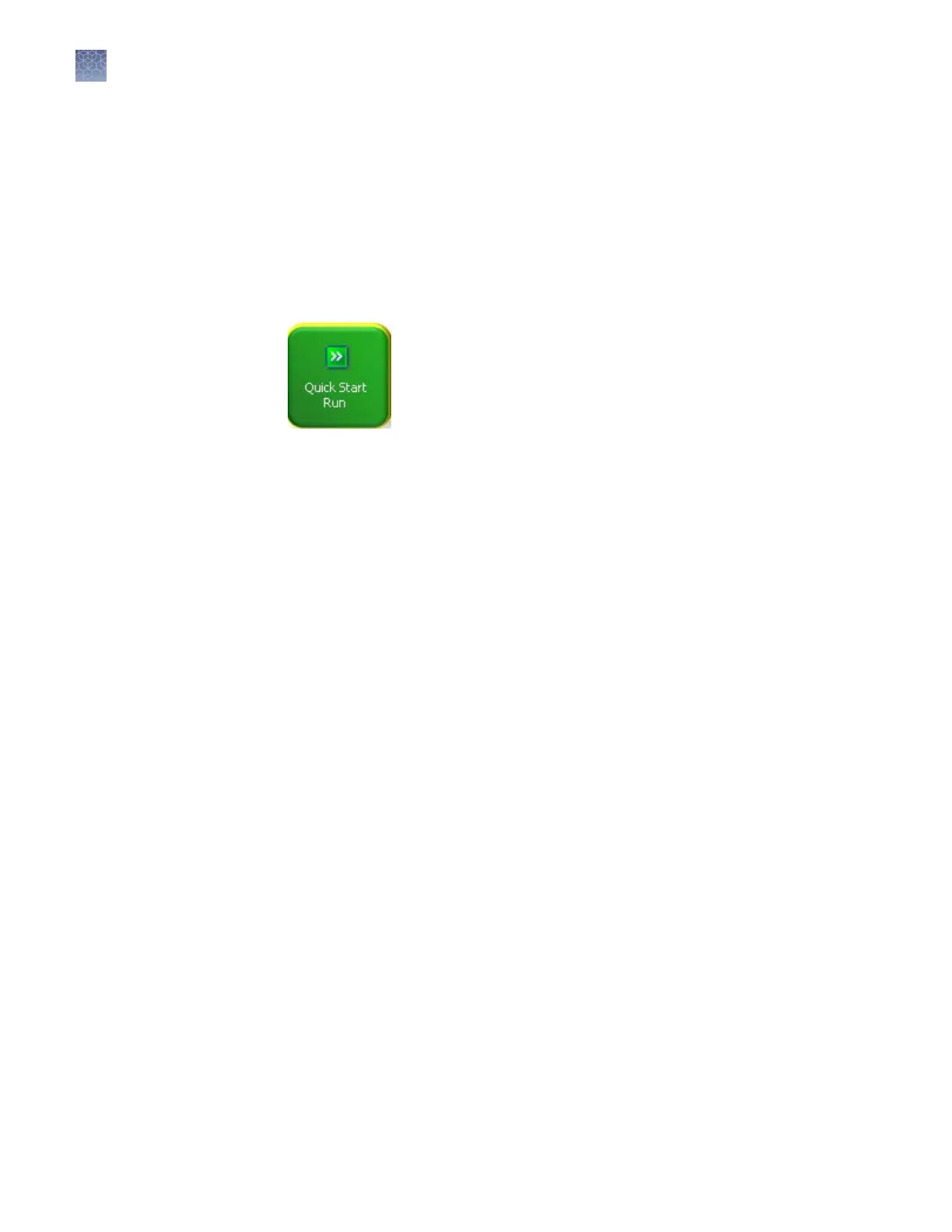

In the Dashboard, click Quick Start Run to display the Select Plate from Library
dialog box.
2.
Select a plate, then click Load Plate.
3.
Click Start Run from the Load Plates for Run screen.
Not
e: If an install check for the run application type (Sequencing or Fragment)
has not been performed, a message is displayed and the run does not start.
Chapter 3 Set up and run
Quick Start a run
3
58
3500/3500xL Genetic Analyzer User Guide—Data Collection Software v3.1

Applied Biosystems 3500 Specifications

General

Number of capillaries	8
Capillary Length	50 cm
Laser	Solid-state laser
Instrument Type	Capillary electrophoresis system
Technology	Capillary Electrophoresis (CE)
Weight	95 kg
Power Requirements	100–240 V
