Click (Plot Seings) in the plot view toolbar
.
2.
Select Overlay Sizing Curve in the Display tab.
Re-inject samples from Review fragment results
Before the run completes, select a sample with suspect or failing ags, then click
Re-inject. For information on making a re-injection before a run completes, see
“Re-inject samples from the Monitor Run screen“
on page 69.
View, print, and save (.pdf) sample quality reports
1.
Select the samples of interest in the samples table.
2.
Click
Reports, then select a report type to view and print. Reports are
display
ed in the sizing table view at the boom of the screen.
Reports are displayed in the sizing table view at the boom of the screen.
3.

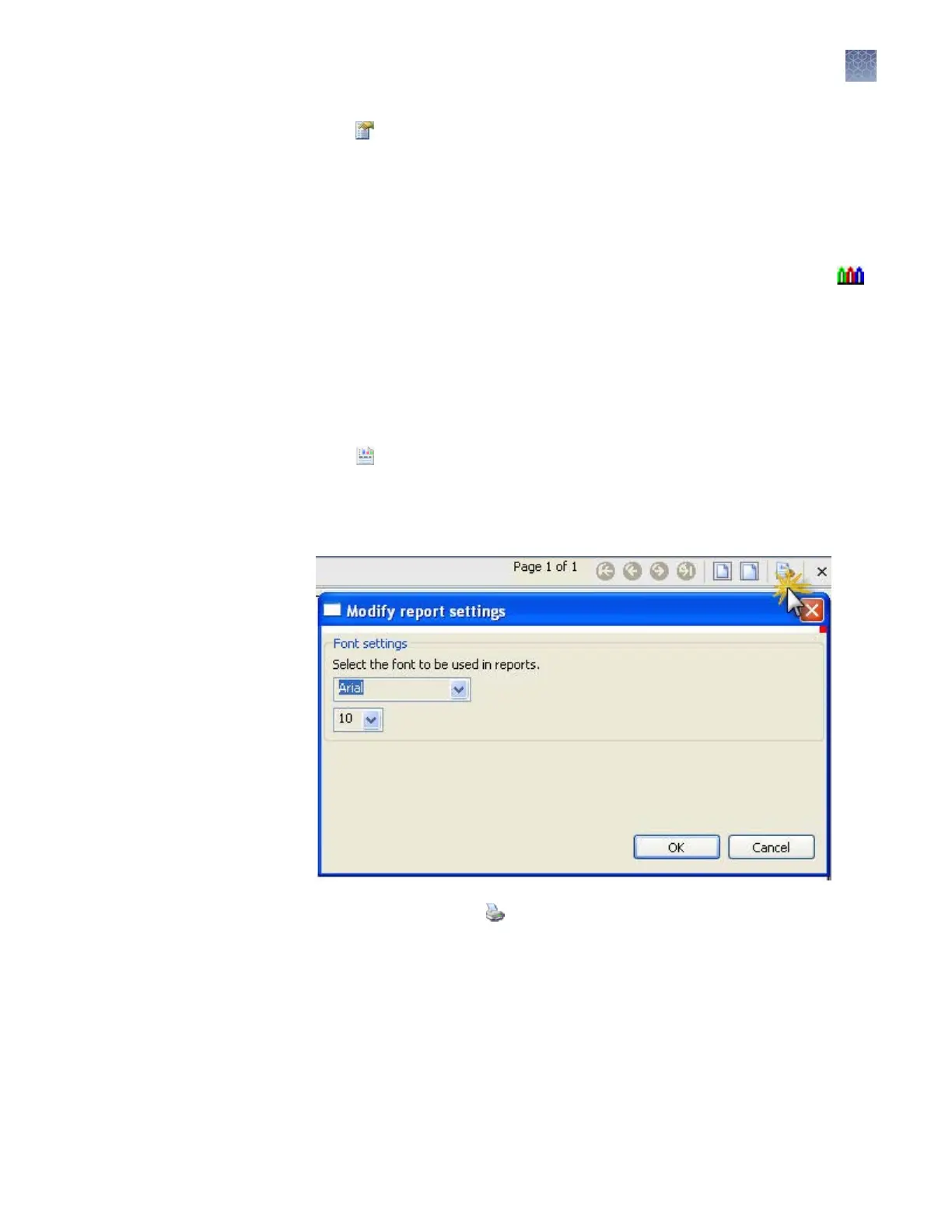

(Optional) Modify report seings.
4.
T
o print the report, click
Print, then preview or print.
• Sizing—One page per selected sample that shows the quality ranges set in the
sizecalling or QC protocol, the quality v
alues for the sample, and the
electropherogram for the sample. Plot zooming is not retained in the report.
• Overlay—One page for all selected samples that shows the size standard dyes
overlaid with the size standard curves.
• Plate—One page per plate for all selected samples that shows the well-location
thumbnail traces with color-coded headers that reect sizing quality. Plot
zooming is not retained in the report.
Overlay the sizing
curve
Report options
Chapter 5 Re
view fragment/HID analysis results
Re-inject samples from Review fragment results
5
3500/3500xL Genetic Analyzer User Guide—Data Collection Software v3.1
101

Applied Biosystems 3500 Specifications

General

Number of capillaries	8
Capillary Length	50 cm
Laser	Solid-state laser
Instrument Type	Capillary electrophoresis system
Technology	Capillary Electrophoresis (CE)
Weight	95 kg
Power Requirements	100–240 V
