Monitor the run

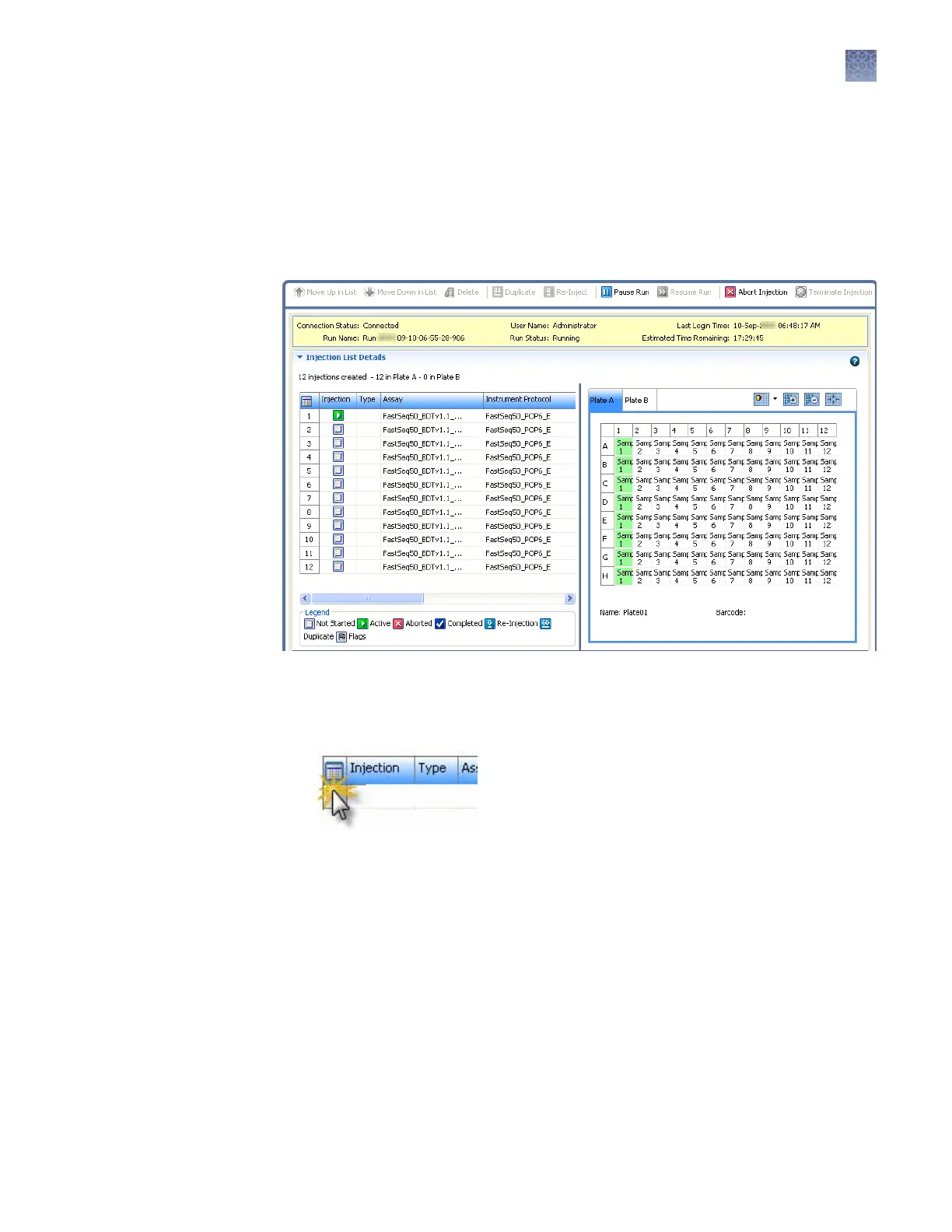

The Monitor Run screen (Figure 9) is automatically displayed when you click Start
Run in the Load Plates for Run screen or the Preview Run screen. The current
injection is highlighted in green in the plate view. The injection list is linked to the
plate view. Click an injection to select the associated wells in the plate view. A selected
injection is highlighted in green in the plate view.
Figure 9 Monit
or Run screen
1.
Click the Table Seings buon, then specify the columns to show or hide in the
injection list.
Chapter 3 Set up and run
Monitor the run
3
3500/3500xL Genetic Analyzer User Guide—Data Collection Software v3.1
65

Applied Biosystems 3500 Specifications

General

Number of capillaries	8
Capillary Length	50 cm
Laser	Solid-state laser
Instrument Type	Capillary electrophoresis system
Technology	Capillary Electrophoresis (CE)
Weight	95 kg
Power Requirements	100–240 V
