1.

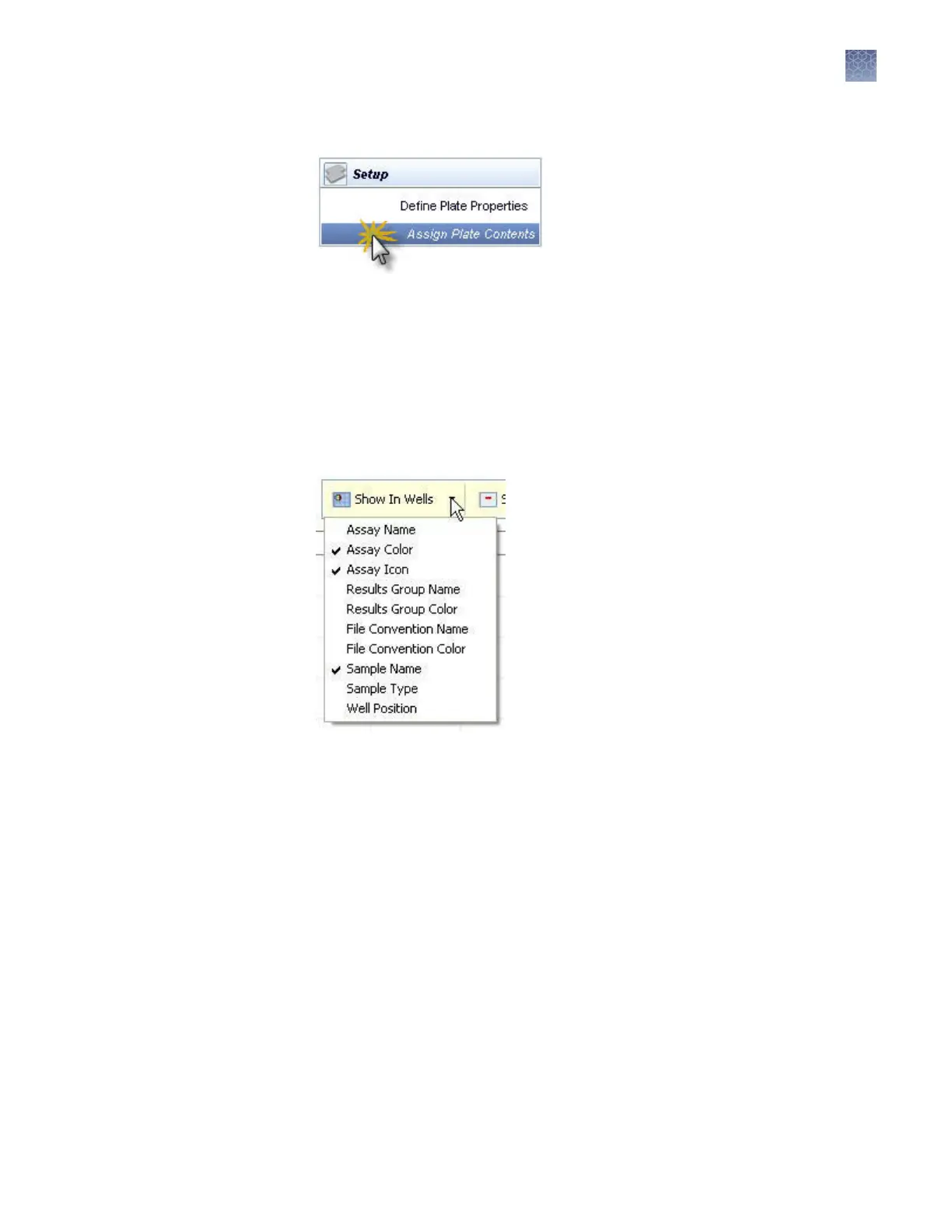

Access the Assign Plate Contents screen from:
• The Dene Plate Properties screen by clicking Assign Plate Contents
(described above).
• The navigation pane by selecting Assign Plate Contents.
• The Dashboard by clicking the Workow tab, then selecting Assign Plate
Contents in the navigation pane.
2.
Click Show In Wells to specify the aributes to display in wells.
Figure 4 shows the Plate View of the Assign Plate Contents screen.
Access the Assign
Plate Contents
screen
Chapter 3 Set up and run
Assign plate contents
3
3500/3500xL Genetic Analyzer User Guide—Data Collection Software v3.1
45

Applied Biosystems 3500 Specifications

General

Number of capillaries	8
Capillary Length	50 cm
Laser	Solid-state laser
Instrument Type	Capillary electrophoresis system
Technology	Capillary Electrophoresis (CE)
Weight	95 kg
Power Requirements	100–240 V
