Applied Biosystems 3500 User Manual

5
7
6
8
10
9
1
2
3
4

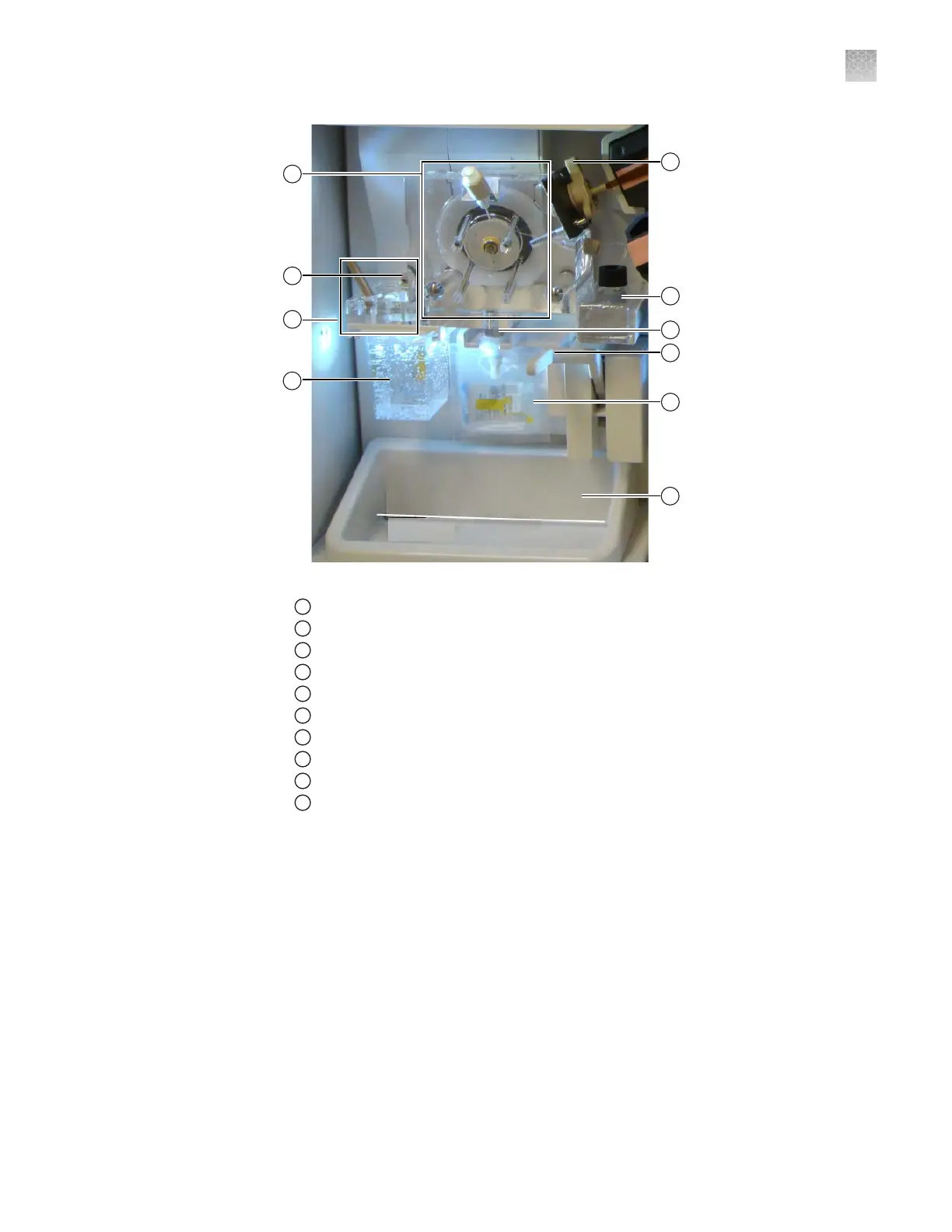

Figure 32 P
olymer delivery pump (PDP)
1
Upper polymer block
2
Buffer-pin valve
3
Lower polymer block
4
Anode buffer container (ABC)
5
Array locking lever
6
Water trap waste container
7
Check valve fitting
8
Polymer pouch lever
9
Polymer pouch
10
Drip tray
Appendix A Troubleshoot
Instrument components
A
3500/3500xL Genetic Analyzer User Guide—Data Collection Software v3.1
253

Applied Biosystems 3500 Specifications

General

Number of capillaries	8
Capillary Length	50 cm
Laser	Solid-state laser
Instrument Type	Capillary electrophoresis system
Technology	Capillary Electrophoresis (CE)
Weight	95 kg
Power Requirements	100–240 V
