Installing under Windows
120 AX3000 Models 90 - User's Manual

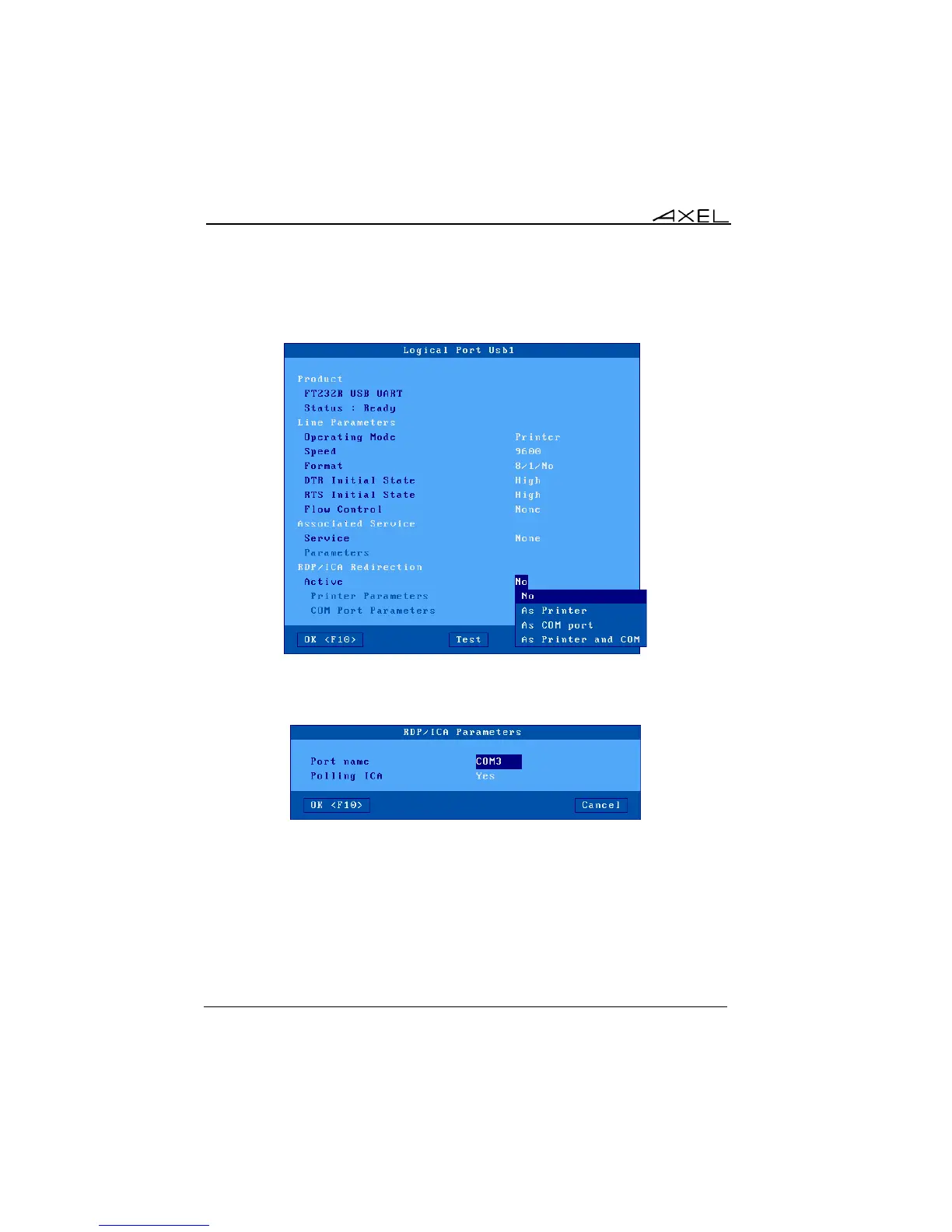

Select the dialog box of the 'COM port' (menu [Configuration]-[Ports]-[xxx]).
For example, the Usb1 port:
Set the 'Active' parameter to 'As COM port' or 'As Printer and COM'. Then select
'COM Port Parameters'. The following box is displayed:
These parameters are:
- Port Name: redirect COM port name (from COM1 to COM255).
- Polling ICA: not applicable
Note: for redirecting an LPT port, set the 'Active' parameter to 'As LPT port' or
'As Printer and LPT. The LPT port settings dialog box only offers to customize
the LPT name (LPT1 by default).
