Installing under OS/400
AX3000 Models 90 - User's Manual 161
Press <Alt><Rest><SetUp> to enter the AX3000 Set-Up with an AS400
keyboard.
b) In event of problems
If the AX3000 setting is not consistent (a PC keyboard is attached but a 5250
keyboard is declared, or vice versa), the keyboard won’t work.
A specific keystroke allows the keyboard type to be dynamically toggled. This
keystroke is <Ctrl><Alt><K> with a PC keyboard, and <Rest><Alt><K> with a
5250 keyboard.
6.1.2 - Setting a Session
To set a profile session, enter the AX3000 Set-Up and select the
[Configuration]-[Sessions]-[Session X] menu (where X is the session number

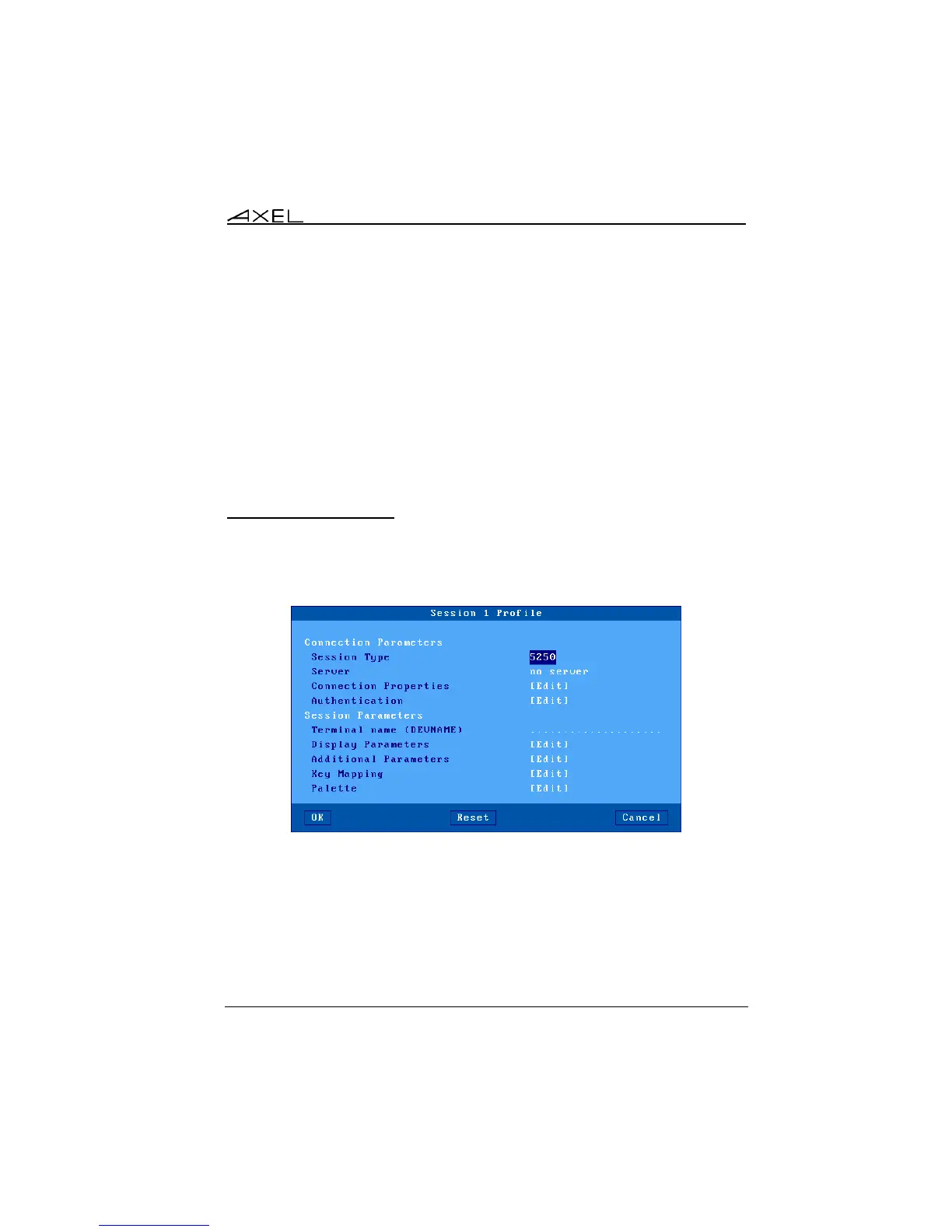

to be configured). The following box is displayed:
These parameters are:
- Session Type: select "5250"
- Server: selected from the server table (see Chapter 3.1.4). A new server
can be added by selecting 'IP address' or 'Server Name'.
- Connection Properties: see Chapter 6.1.6.
- Authentication: Auto-Signon function. See Chapter 6.1.5.
