Interactive Set-Up
82 AX3000 Models 90 - User's Manual
The dialog box parameters are:
- Line Parameters (USB-RS232 adaptor only): see the serial ports
Chapter.
- Associated Service (ldp, prt5250, tty...): see Chapter 3.5.2 and
following.
- RDP/ICA Redirection: see Chapter 5.
b) Setting Network Printers

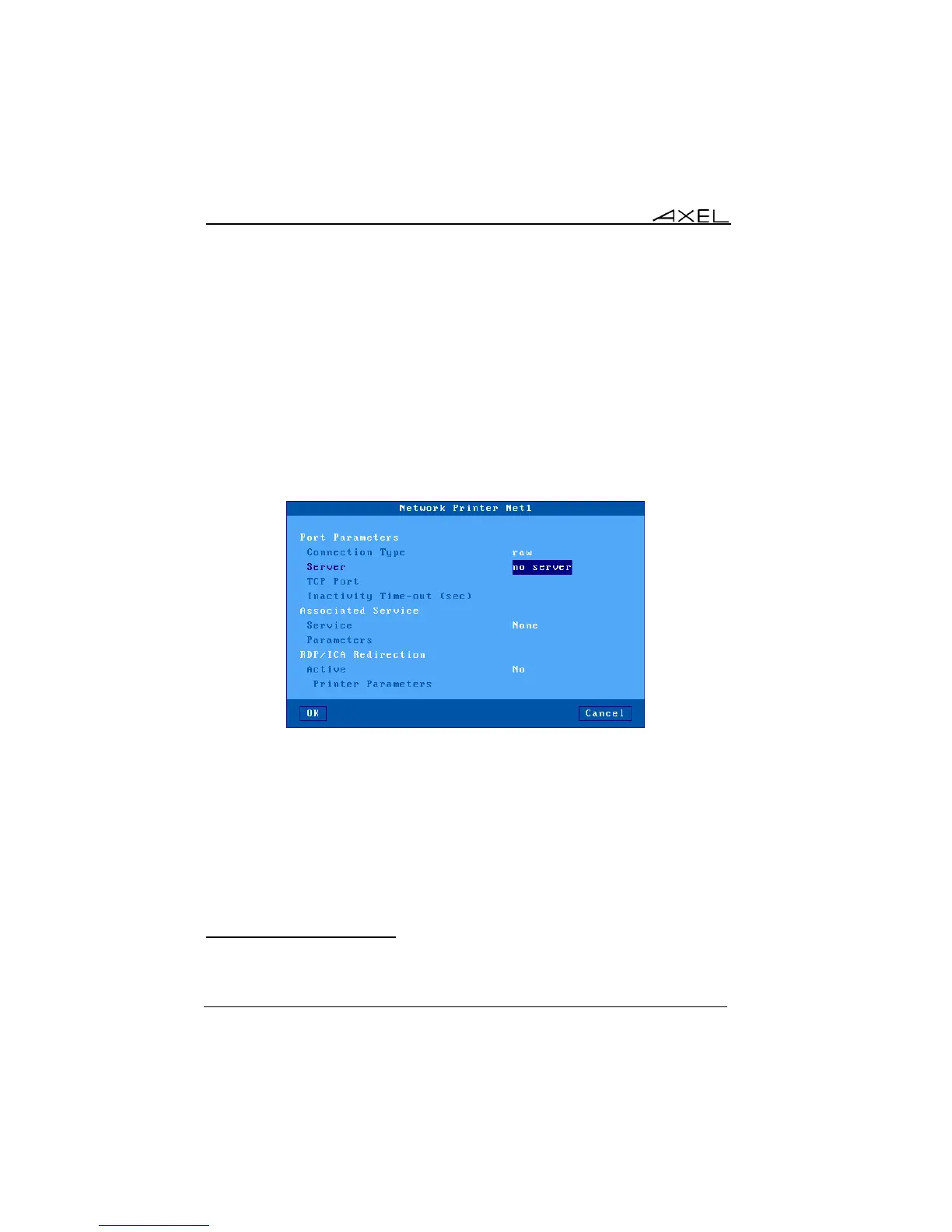

Select the [Configuration]-[Ports]-[Network Printers]-[NetX] dialog box to
configure TCP logical ports:
The following parameters can be set:
- Connection Type: always 'raw'
- Server: select the server (i.e. network printer) from a list.
- TCP Port: usual value is 9100.
- Inactivity Time-out (sec): the session is automatically disconnected after
this inactivity delay.
- Associated Service (ldp, prt5250, tty...): see Chapter 3.5.2 and
following.
- RDP/ICA Redirection: see Chapter 5.
3.5.2 - Connecting a Printer
This chapter describes the set-up for an LPD printer attached to the AX3000.
