Axel AX3000 User Manual

Installing under OS/390
AX3000 Models 90 - User's Manual 185
7.1.1 - Setting a Session
To set a profile session, enter the AX3000 Set-Up and select the
[Configuration]-[Sessions]-[Session X] menu (where X is the session number

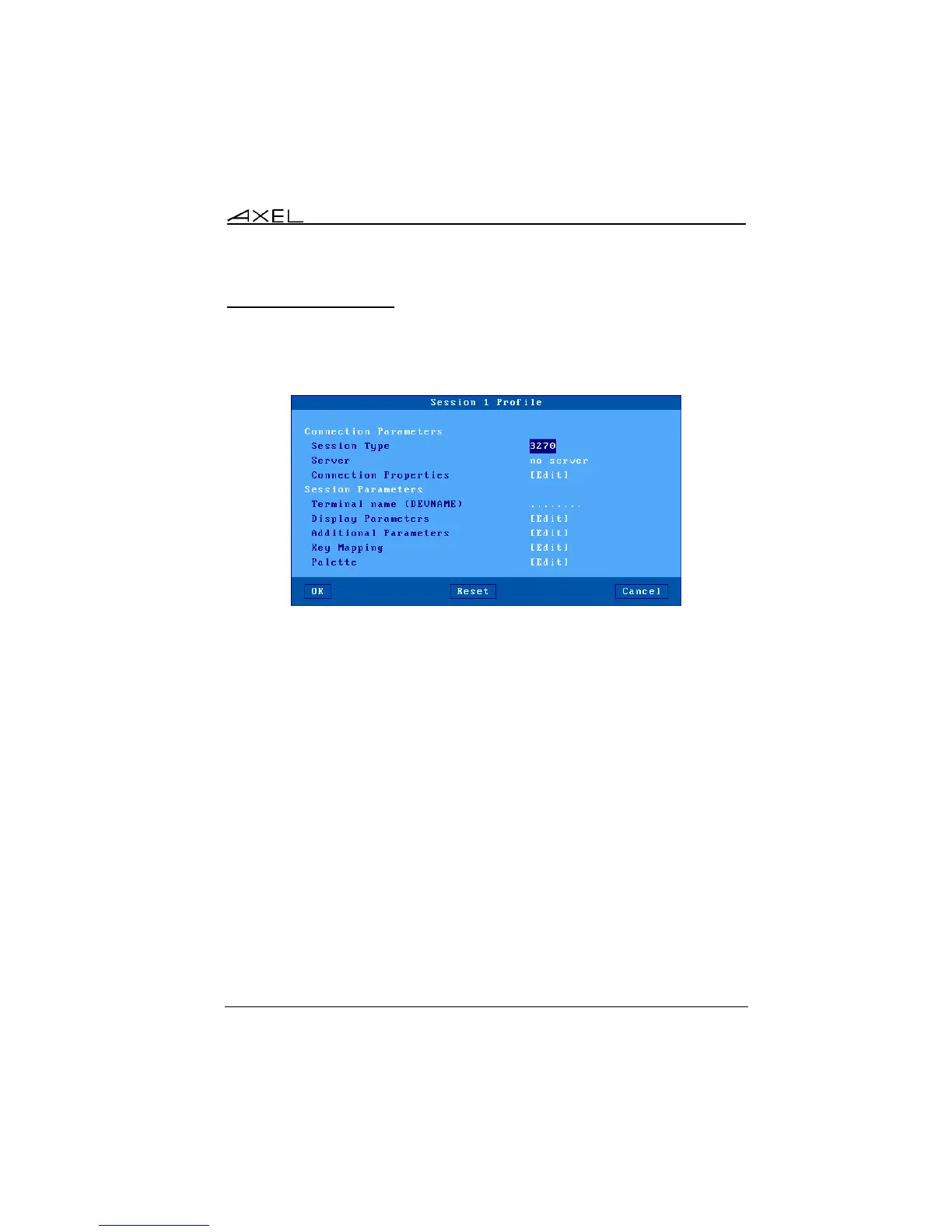

to be configured). The following box is displayed:
These parameters are:
- Type: select "3270"
- Server: selected from the server table (see Chapter 3.1.4). A new server
can be added by selecting 'IP address' or 'Server Name'.
- Connection Properties: see Chapter 7.1.4
- Terminal Name (DEVNAME): this optional name identifies the terminal
connection at the OS/390 level.
- Display Parameters: see the next chapter.
- Additional Parameters: lets certain emulation parameters to be
changed. See Chapter 7.1.3.
- Key Mapping: lets any keys to be remapped. See Chapter 7.1.3.
- Palette: lets emulation colors to be remapped. See Chapter 7.1.3.
