Interactive Set-Up
84 AX3000 Models 90 - User's Manual
print String" and "Landscape Pre-print String".
Note 2: if a serial port is used for printing, set the operating mode to 'Printer'.
For more information about lpd printers, refer to the chapter related to your
operating system in this manual.
3.5.3 - Connecting a Serial Terminal
Two serial terminals can be attached to a USB-Serial adaptor. These serial
terminals communicate with the target server(s) using the AX3000’s embedded
telnet service.
To configure the telnet service for the chosen serial port, select the
[Configuration]-[Ports]-[USB Logical Ports]-[yyy] dialog and enter the
following parameters:
- Service: select telnet.

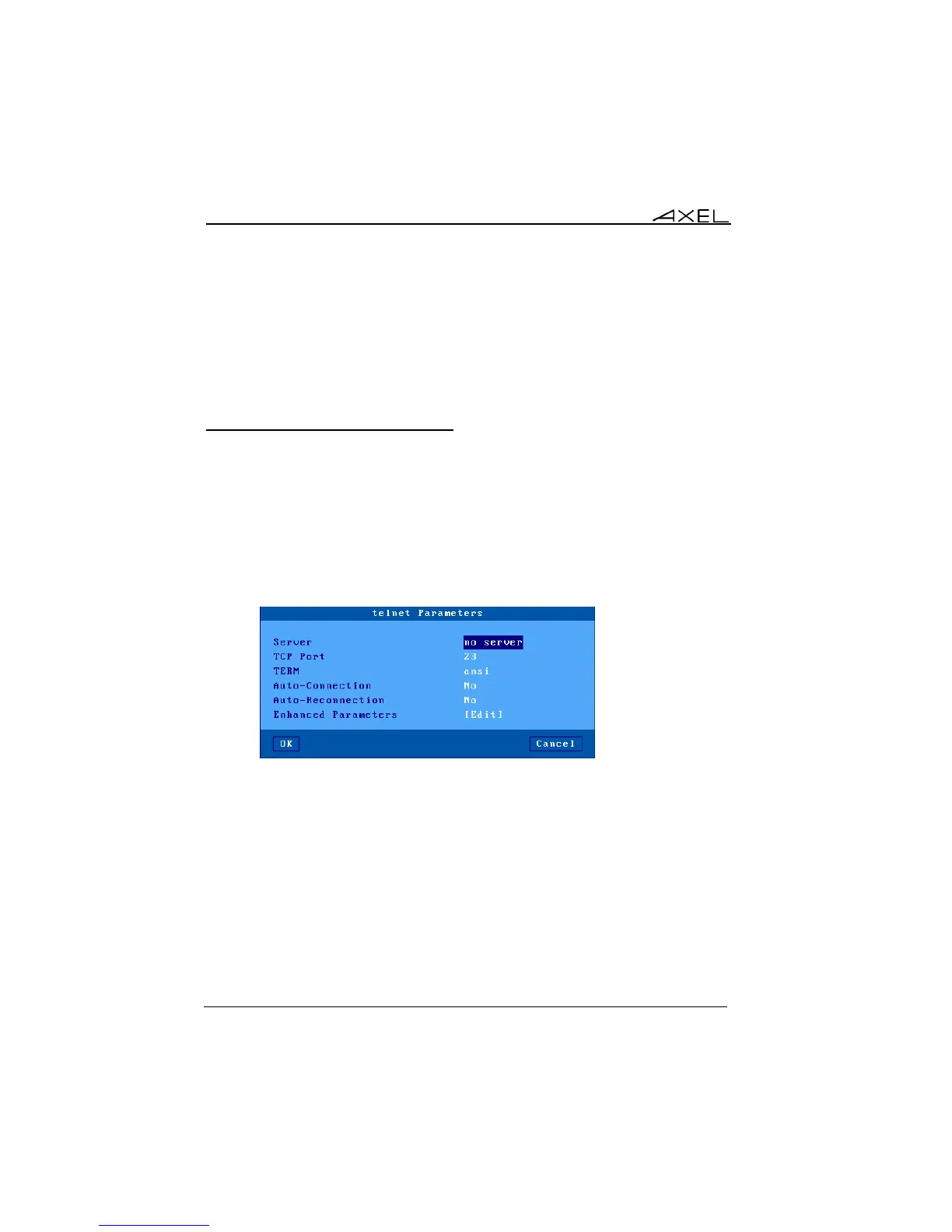

- Parameters: the following box is displayed:
- Server: selected from the server table (see Chapter 3.1.4). A new
server can be added by selecting 'IP address' or 'Server Name'.
- TCP Port: usual value is 23.
- TERM: the value of this variable is 'negotiated', between the server
and the AX3000.
- Auto-Connection: if this parameter is set to 'yes', the connection will
be automatically established when the AX3000 is powered-up.
Alternatively the user can press any key on the serial terminal
keyboard to initiate the connection.
- Auto-Reconnection: if this parameter is set to 'yes' a new connection
is automatically established after a disconnection. If set to ‘no’ the
user can press any keyboard key to establish a new connection.
