Interactive Set-Up
68 AX3000 Models 90 - User's Manual

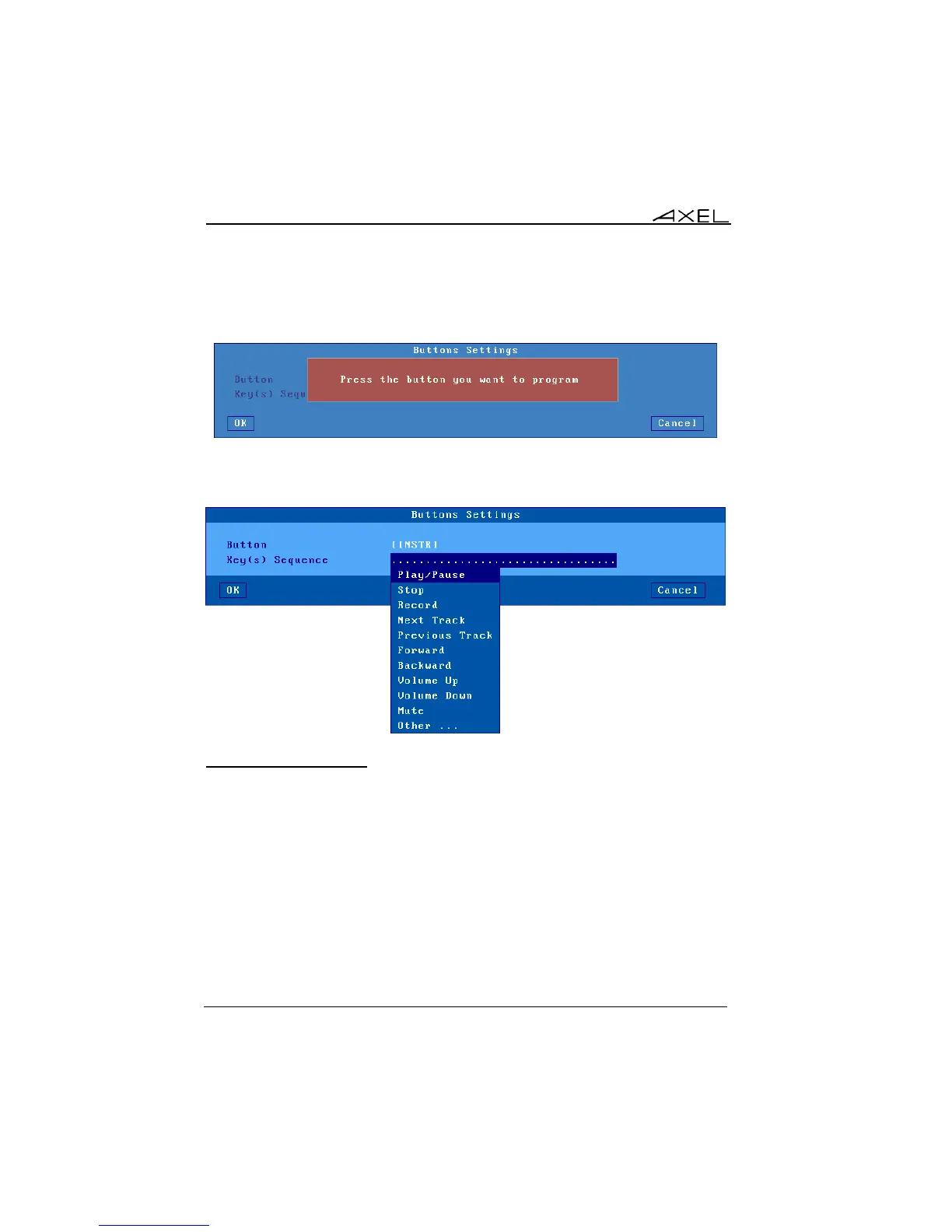

Up to 4 buttons (i.e pedals) can be programmed. Select the button number. The
following box is displayed:
The next step allows an 'audio' action to be associated with this button. (or
another keystroke can be associated by <Other…>:
3.2.11 - Voice Recorder
The Axel thin client can locally handle Dictation (Philips Speechmike and
Olympus). The concept is associating a keystroke with each button.
Select the [Configuration]-[Terminal]-[Voice Recorder] menu. The
configuration process is the same as the Footcontrol. See previous chapter.
Note: this feature is available with the SMK firmware option and works only with
RDP, ICA and 5250 sessions.
